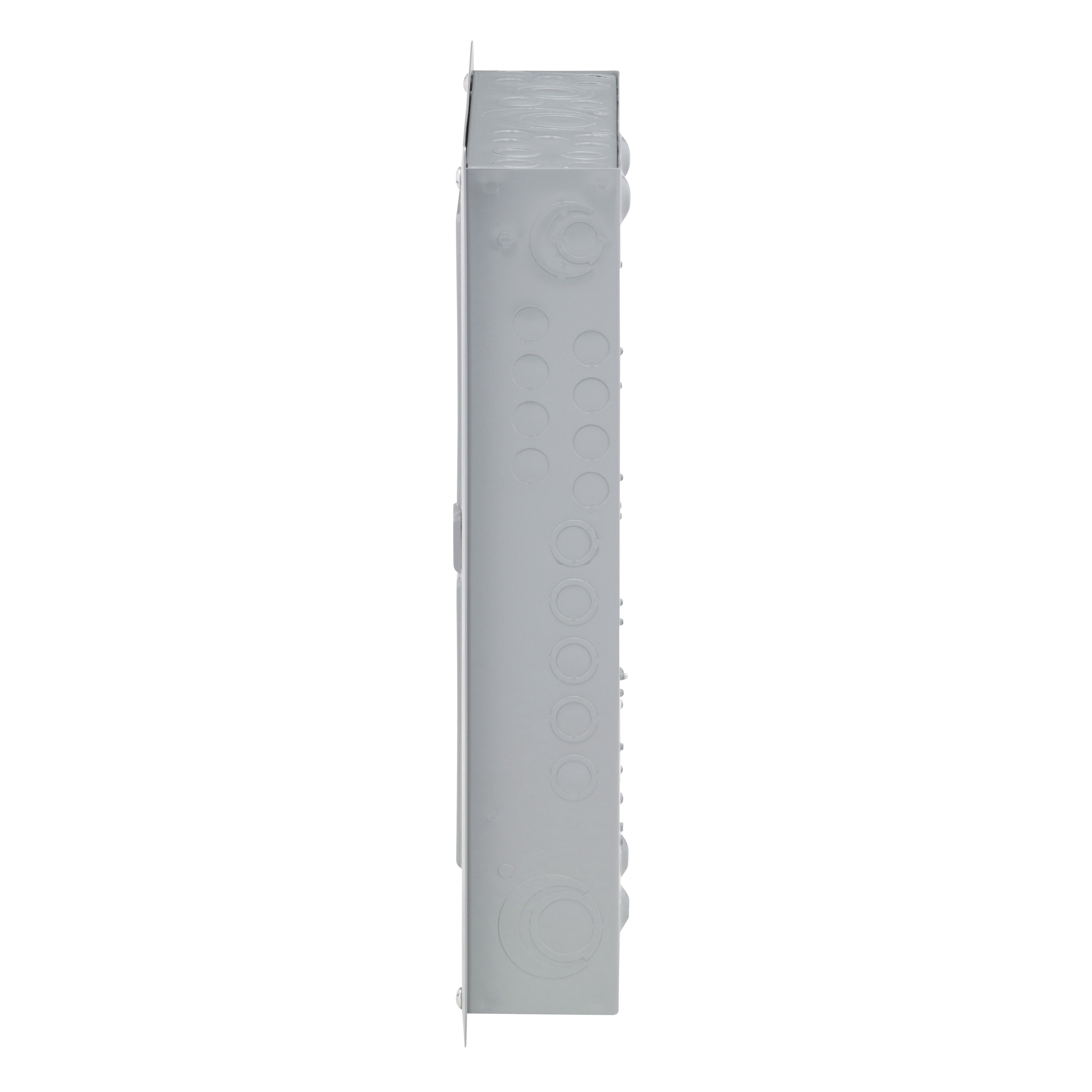

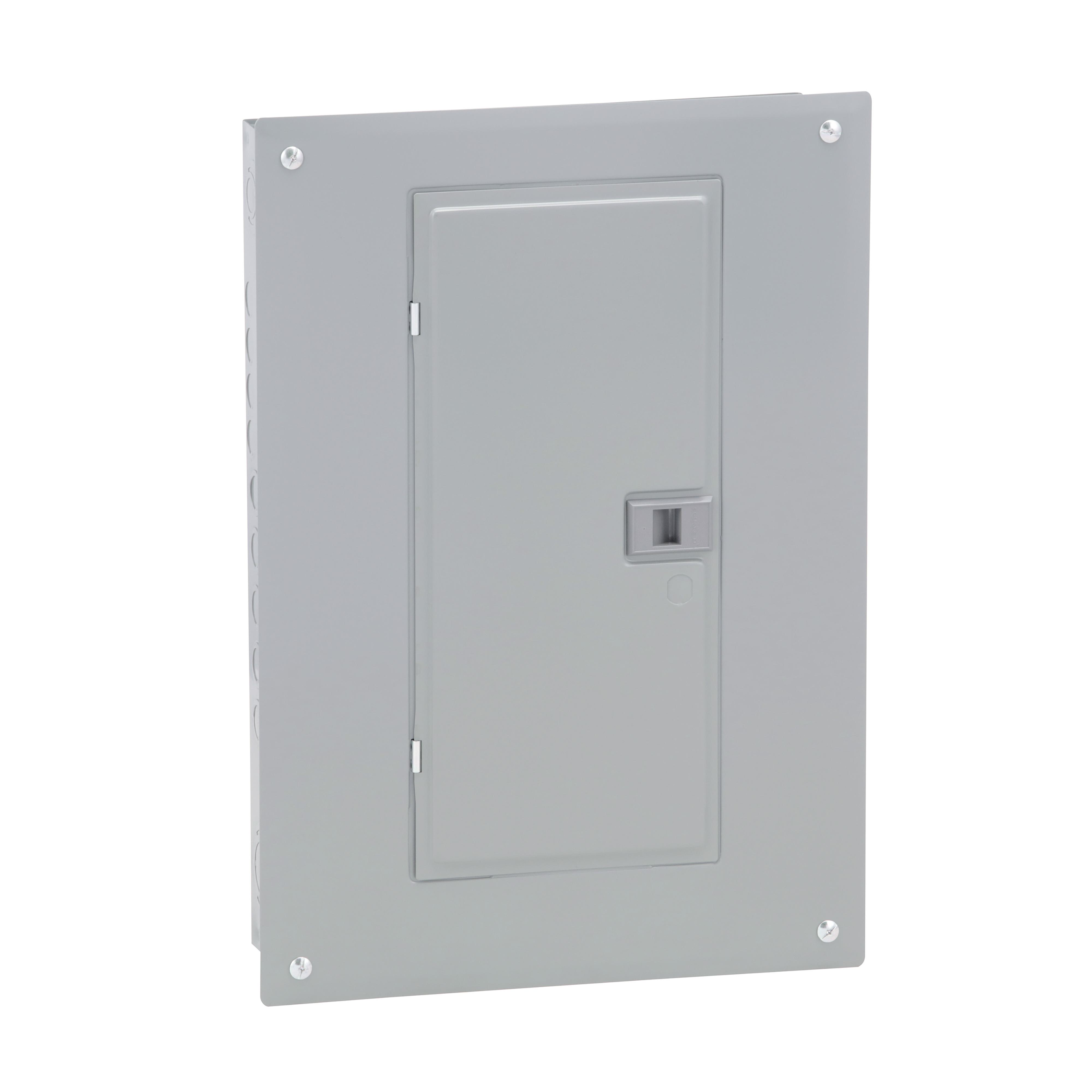

Square D™ Homeline™ HOM2040M100PC 1-Phase Convertible Neutral Main Breaker Loadcenter, 120/240 V AC, 100 A, 1 Pole, 22 kA Interrupt
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 20 spaces in a NEMA 1 indoor enclosure with a combination flush/surface indoor cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 20.90 inches, a width of 14.25 inches, and depth of 3.74 inches. Homeline load centers are UL Listed.
-
BrandSquare D™
-
UPC785901977377
-
Manufacturer Part NumberHOM2040M100PC
-
CountryUSA
-
Frequency Rating50/60 Hz
-
Type1-Phase Convertible Neutral
-
Mounting TypeFlush/Plug-On/Surface
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
Number of Circuits40
-
Wire Size6 to 1/0 AWG, 6 to 2/0 AWG
-
Wiring Configuration3-Wire
-
Housing MaterialSteel
-
Number of Poles1
-
Dimensions14.25 in W x 3.75 in D x 20.92 in H
-
Number of Spaces20
-
Interrupt Rating22 kA
-
Enclosure Box Size7
-
Enclosure TypeNEMA 1
-
Breaker MountingPanel
-
Breaker TypeHOM
- Fast installation, reliability, and superior circuit protection
- Protects against equipment overloads and short-circuits
- Tin and copper plated aluminum bus bars
- Replacement covers in gray and white
- Distributed neutral bars keeps wiring tidy
- Outdoor panel covers are lockable with padlock
- Gray baked enamel electrodeposited over cleaned, phosphatized steel
- Top or bottom feed by rotating convertible mains panels 180 deg
- Split branch neutral for clutter-free wiring
- Provisions for door lock on convertible mains panel covers
- Lug electrical connection
-
Alternative Part Number12945557
-
UNSPSC39121101
-
IDEA Index ID12945557
-
IncludesCombination Flush/Surface Cover
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|Buy American Act Compliant|UL File No. E6294|PROP65: This product can expose you to chemicals including: Lead and Lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Warranty Information
-
Specification Sheet
