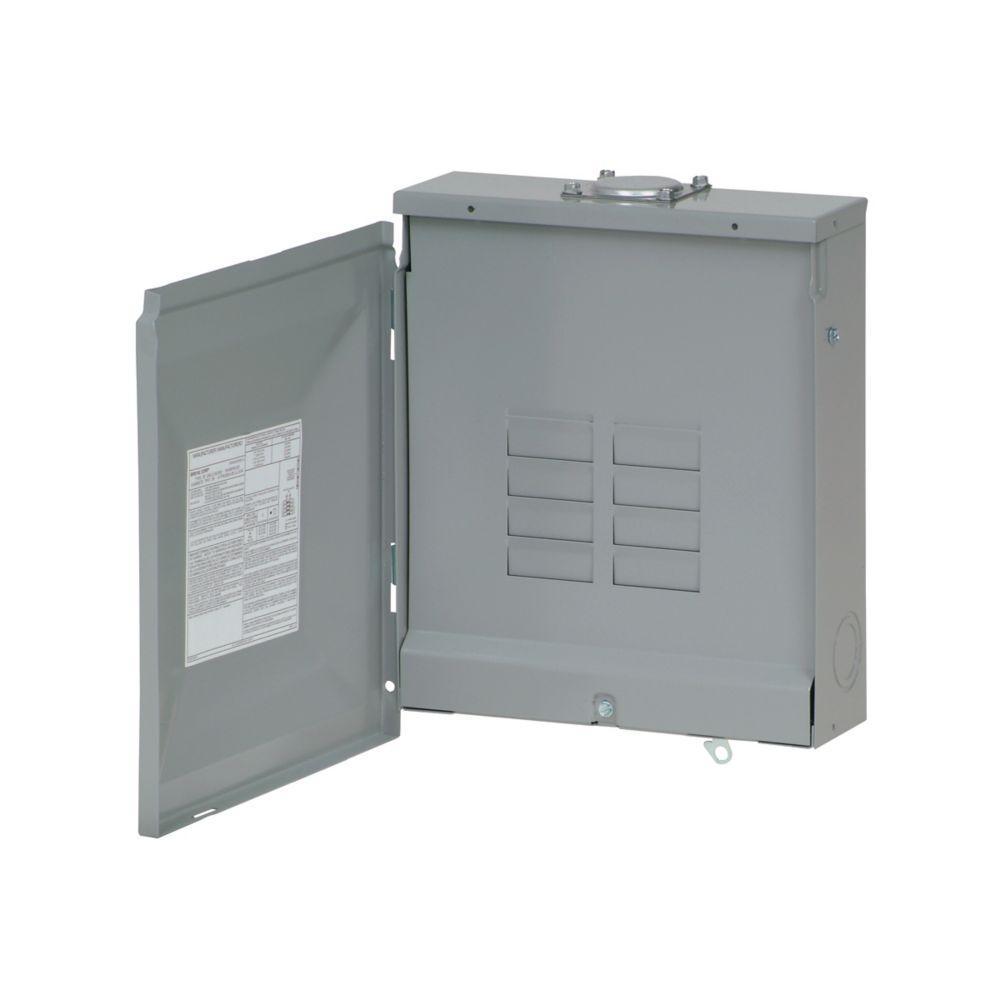

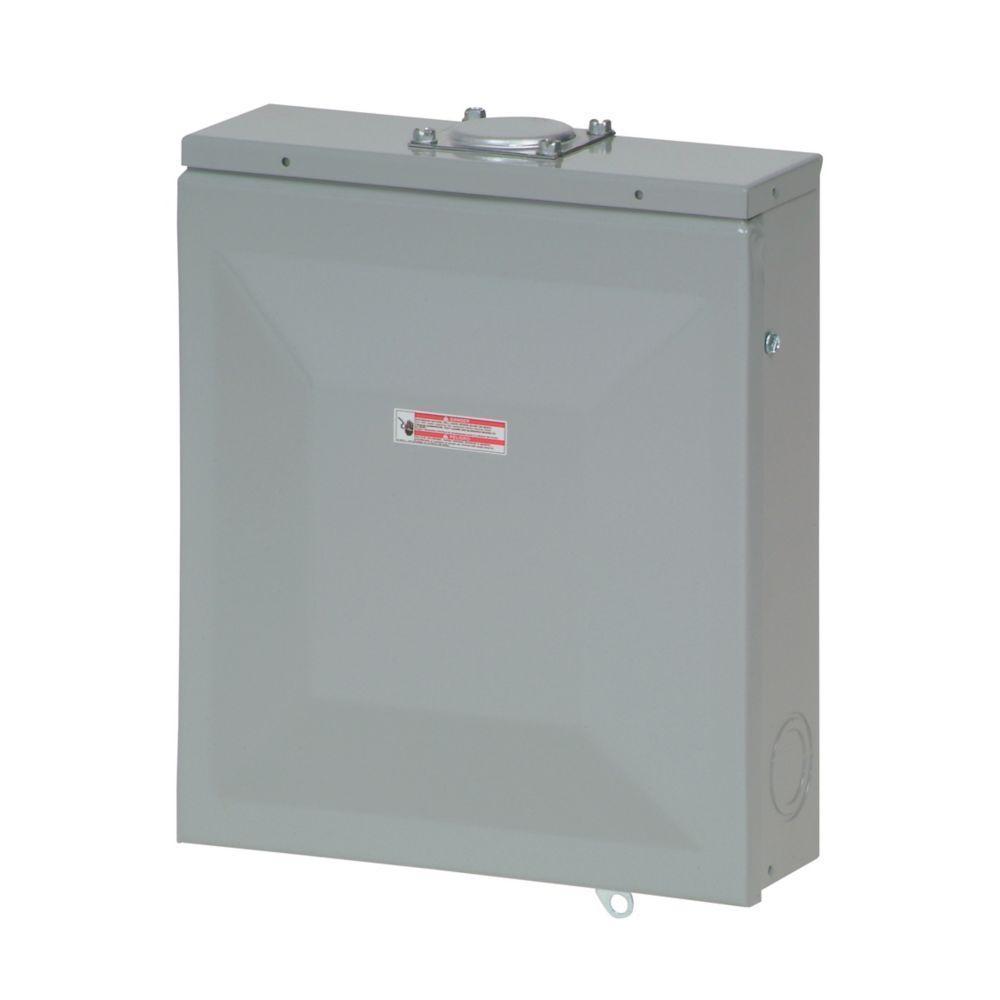

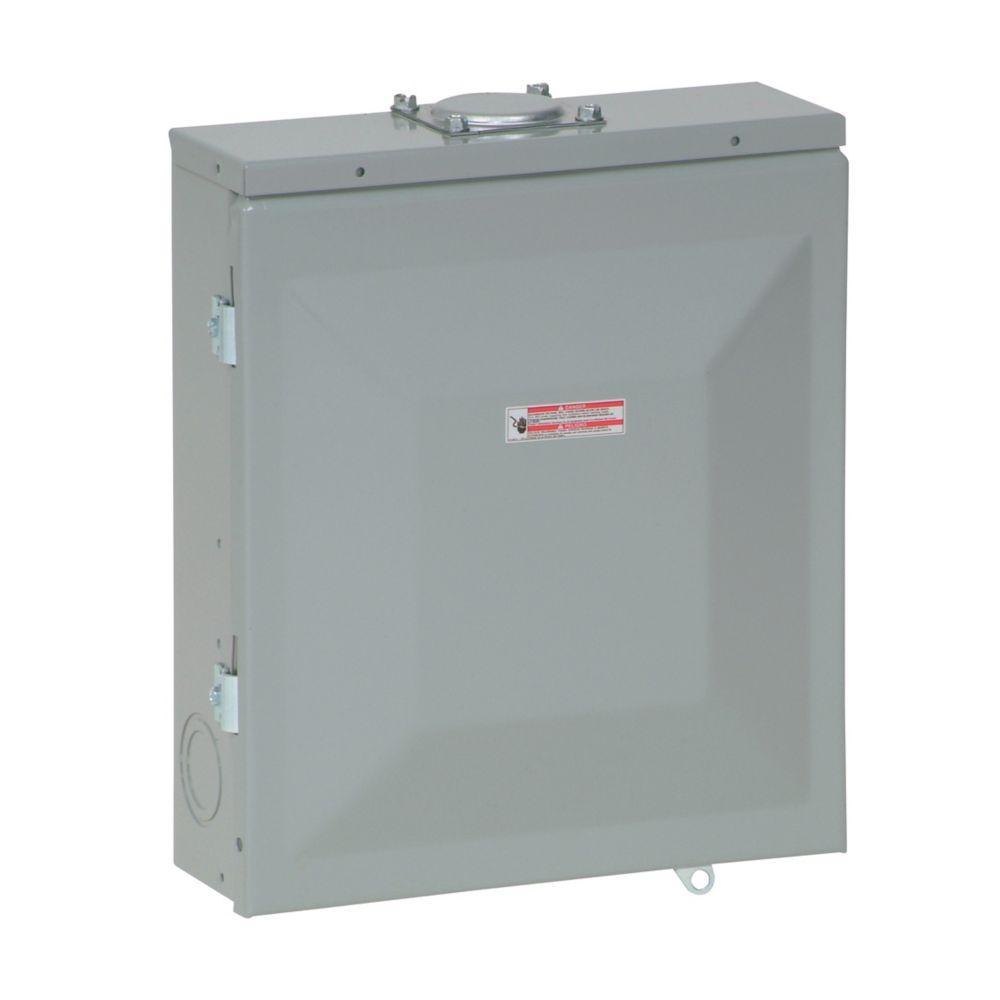

EATON BR816L125RP 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 16 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676001472
-
Manufacturer Part NumberBR816L125RP
-
CountryUSA
-
Type1-Phase
-
Mounting TypeSurface
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits16
-
Wire Size14 to 1 AWG
-
Wiring Configuration3-Wire
-
Housing MaterialMetal
-
Number of Poles16
-
Dimensions3.56 in L x 11 in W x 13 in H
-
Number of Spaces8
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA 7R
-
Enclosure TypeNEMA 3R
-
Breaker TypeBR
- Current design
- Aluminum bus material
- Single-phase
- Ground bar kits priced separately
- For 2/4 circuit loadcenters, use GBK5 or GBK520 ground bar
- Ground bars mount to the left side wall of the enclosure for the 4/8, 6/12 and 8/16 circuit loadcenters
- Rainproof panels are furnished with hub closure plates, for rainproof hubs
- Suitable for use as service equipment when a main breaker is used or when not more than six service disconnecting mains are provided
- Insulated/bondable split neutral type
- 1 in maximum space
-
Alternative Part Number7431381
-
UNSPSC39121101
-
IDEA Index ID7431381
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50,UL 67
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
