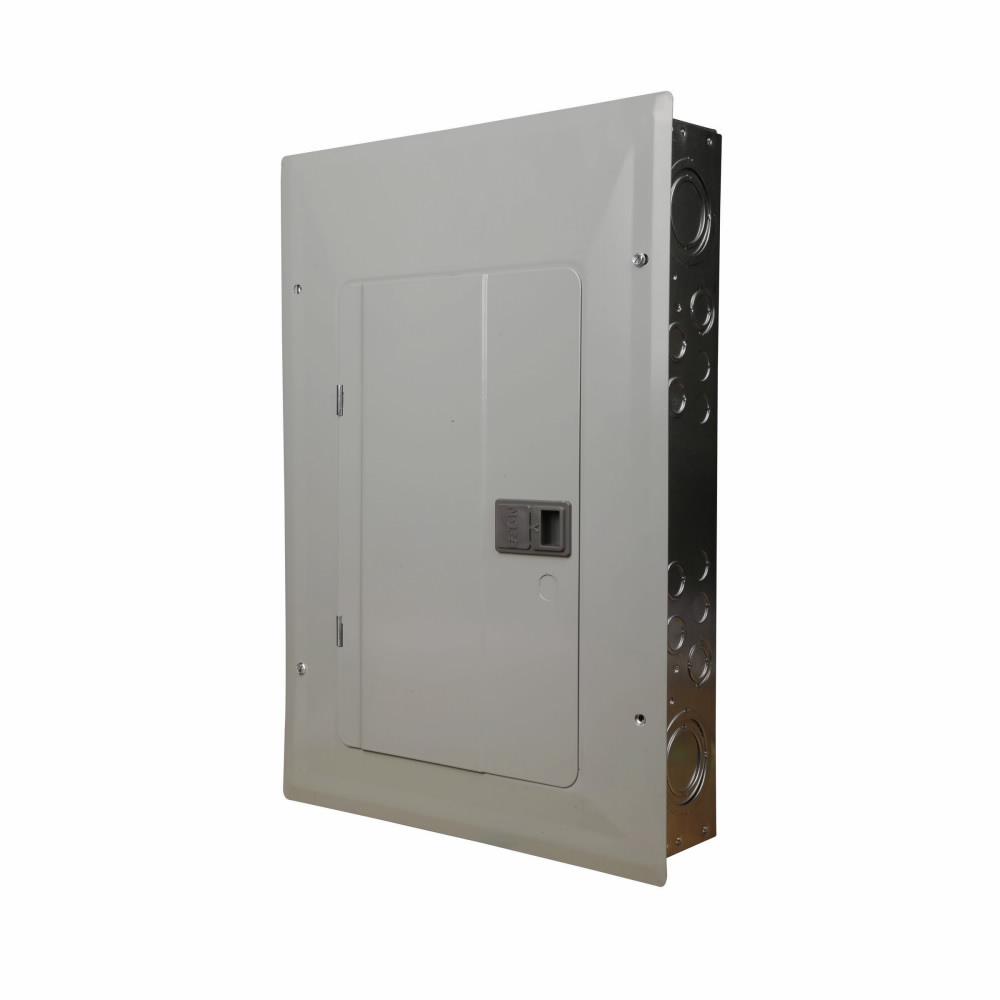

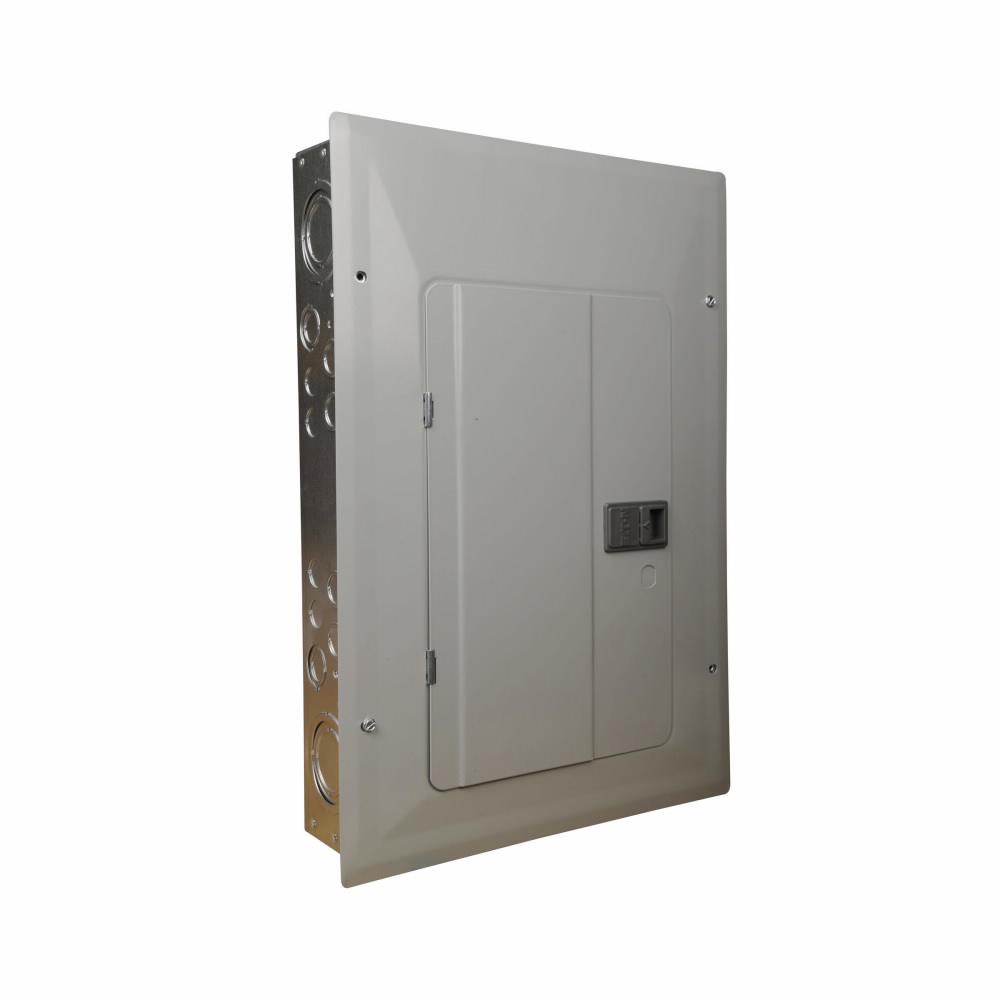

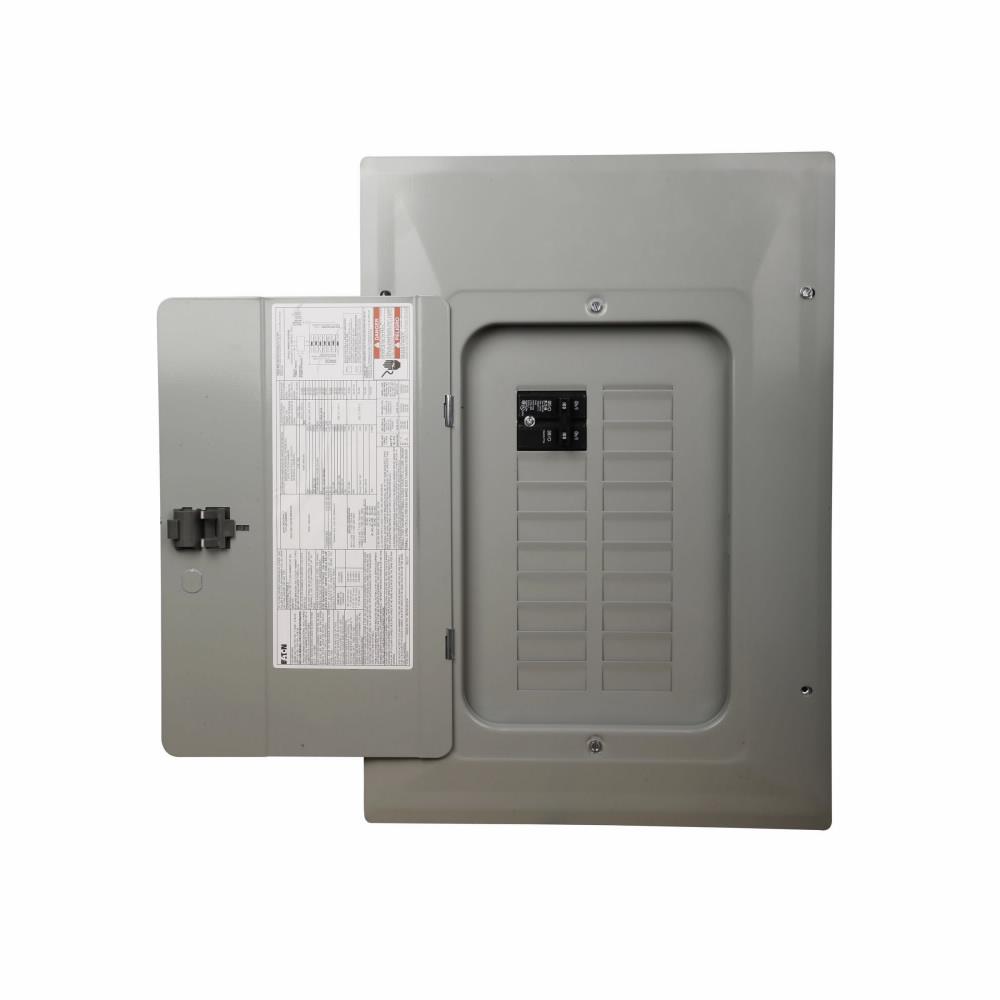

EATON BR1620B100 1-Phase Metallic Main Circuit Breaker Load Center, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt
Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676444002
-
Manufacturer Part NumberBR1620B100
-
CountryUSA
-
Type1-Phase Metallic
-
Mounting TypeFlush
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
SeriesBR Series
-
Number of Circuits20
-
Wire Size4 to 1/0 AWG
-
Wiring Configuration3-Wire
-
Number of Poles20
-
Dimensions4-1/2 in L x 15-1/2 in W x 47 in H
-
Number of Spaces16
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA C1
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in compliance with NEC requirements
- 1-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installation
- Robertson® slotted square combo screwheads, which means only one screwdriver is need for installation
- For use with type BR 1 in breakers
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main breakers
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed through lugs
- Combination mounting
-
UNSPSC39121101
-
IncludesCover
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 50|UL 67
-
Warranty10 years
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
