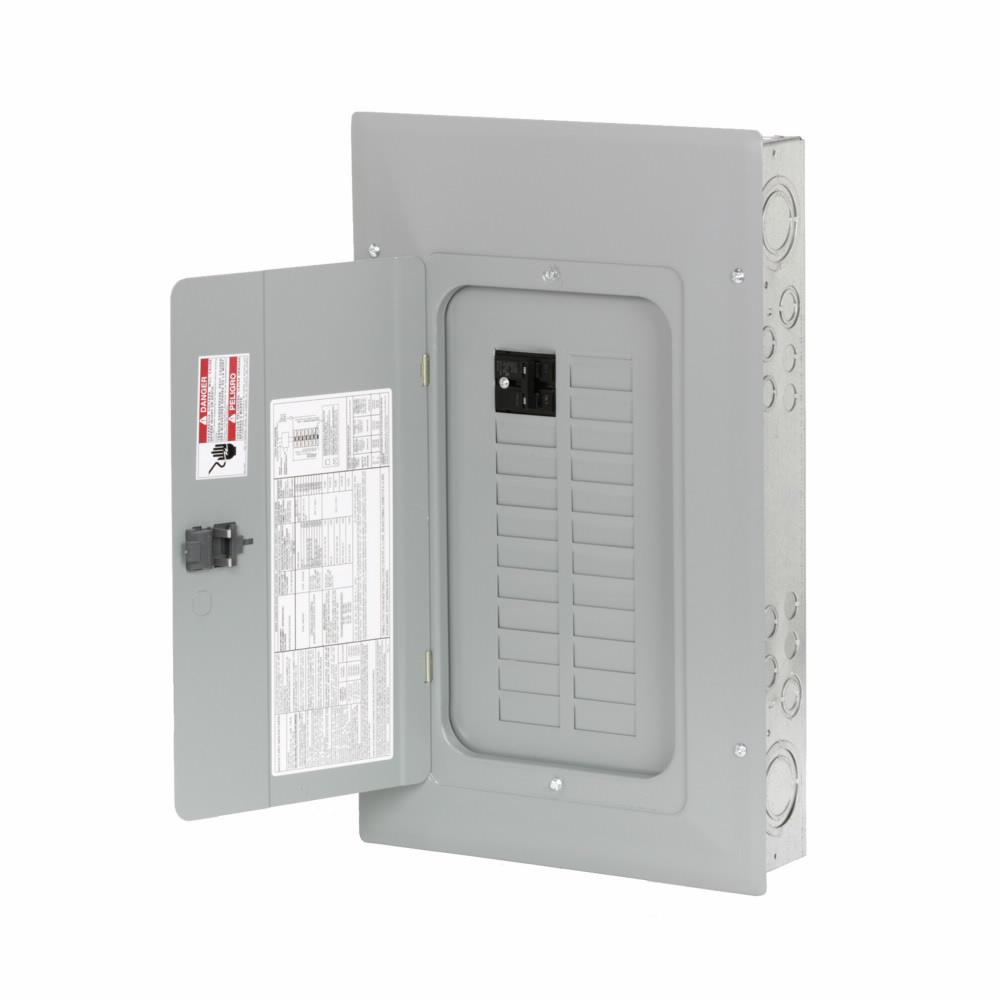

EATON BR2020B100 BR Series 1-Phase Main Circuit Breaker Loadcenter, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt
Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676444156
-
Manufacturer Part NumberBR2020B100
-
CountryUSA
-
Type1-Phase
-
Mounting TypeFlush
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
SeriesBR Series
-
Number of Circuits20
-
Wire Size4 to 1/0 AWG Cu/Al
-
Wiring Configuration3-Wire
-
Number of Poles20
-
Dimensions24-3/4 in L x 16 in W x 4-1/4 in H
-
Number of Spaces20
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA C2
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- Flexible neutral design
- Tangential main knockout
- Unique sandalwood finish provides an esthetically appealing, scratch-resistant powder coating
- Factory pre-attached neutral bonding strap
- For use with type BR 1 in breakers
- Indoor enclosure
- Copper aluminum wire at 60 to 75 deg C for main breakers
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Without feed through lugs
- Combination mounting
-
Alternative Part Number19200308
-
UNSPSC39121101
-
IDEA Index ID19200308
-
IncludesBRCOVC22 Cover
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50|UL 67
-
Warranty10 years
-
