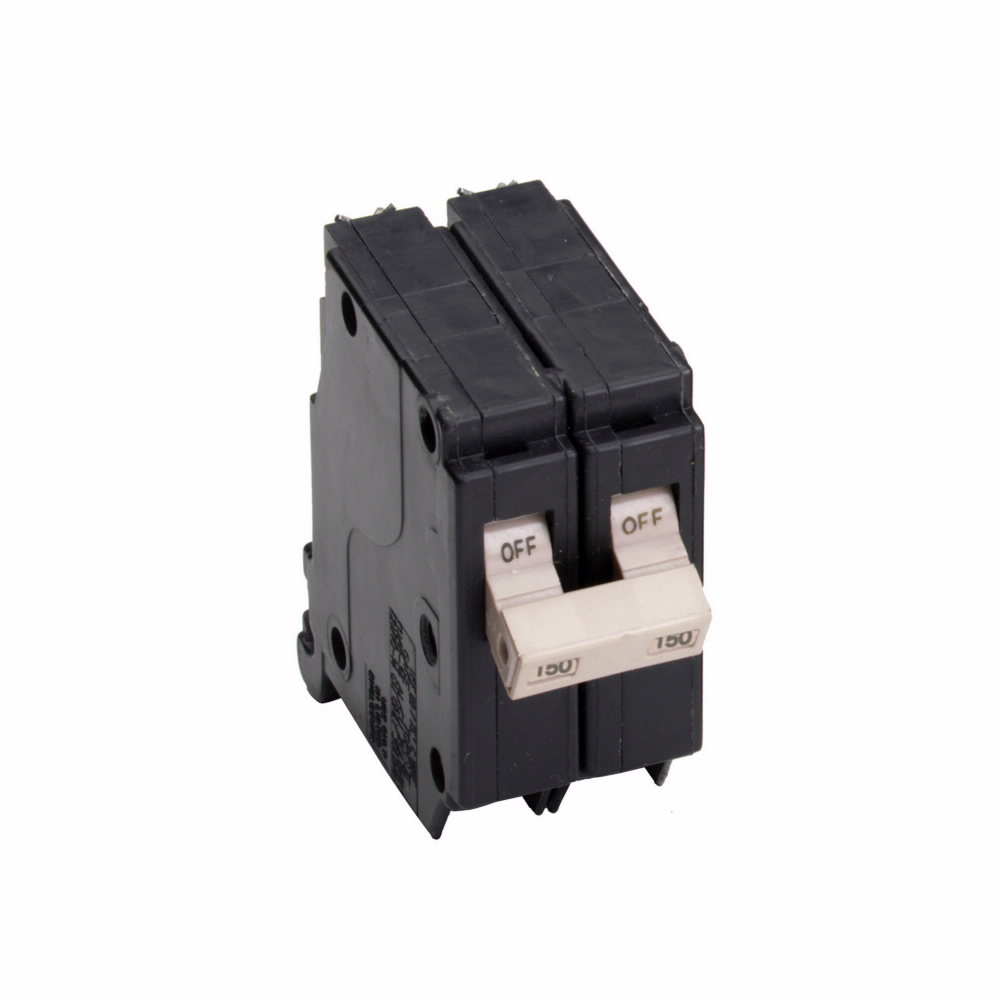

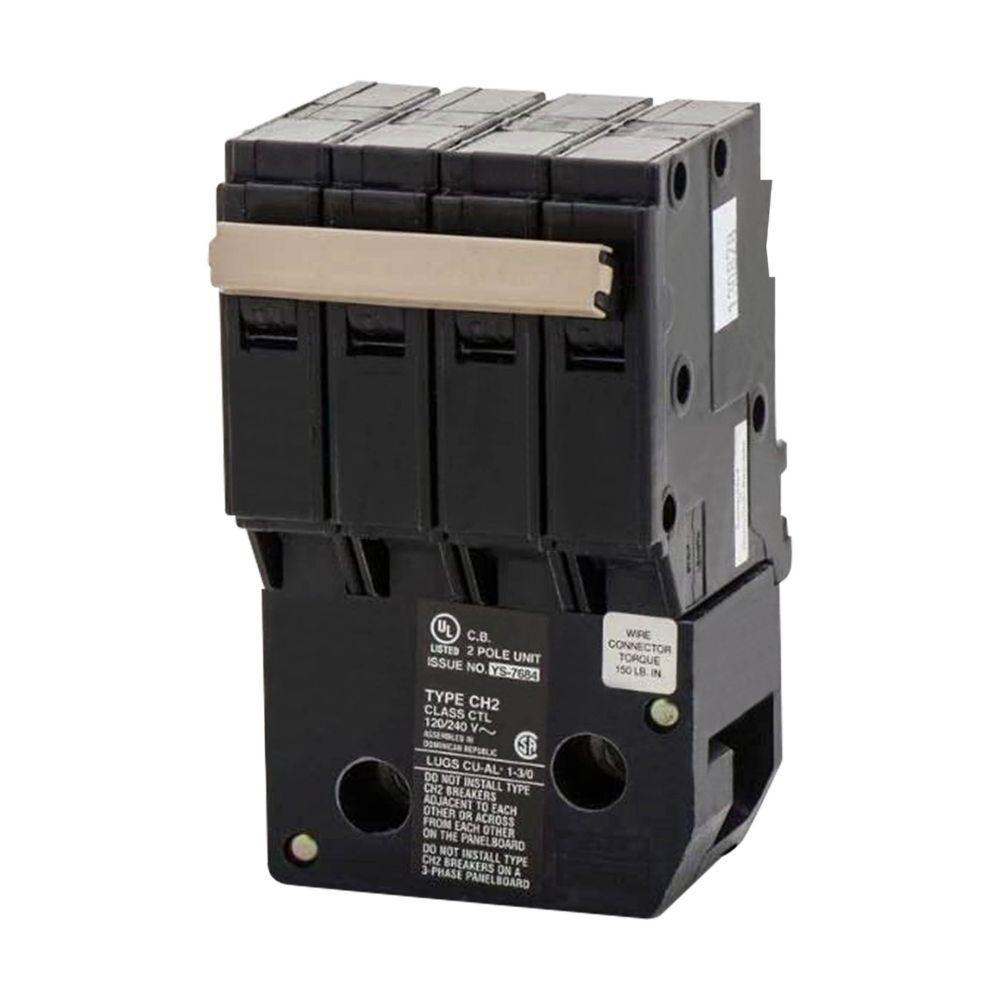

EATON CH2150 Type CH Standard Thermal Magnetic Circuit Breaker, 120/240 V AC, 150 A, 10 kAIC Interrupt, 2 Poles
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113298795
-
Manufacturer Part NumberCH2150
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeCommon
-
TypeType CH Standard
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating150 A
-
Wire Size3/0 AWG Copper/Aluminum
-
Number of Poles2
-
Dimensions2-1/2 in L x 1-1/2 in W x 3 in H
-
Interrupt Rating10 kAIC
-
Enclosure TypeNEMA 1/3R
-
Phase1
- 3/0 AWG copper aluminum wire
- 3/4 in circuit breaker
-
Alternative Part Number7357190
-
UNSPSC39121603
-
IDEA Index ID7357190
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489
-
Specification Sheet
-
Catalog
