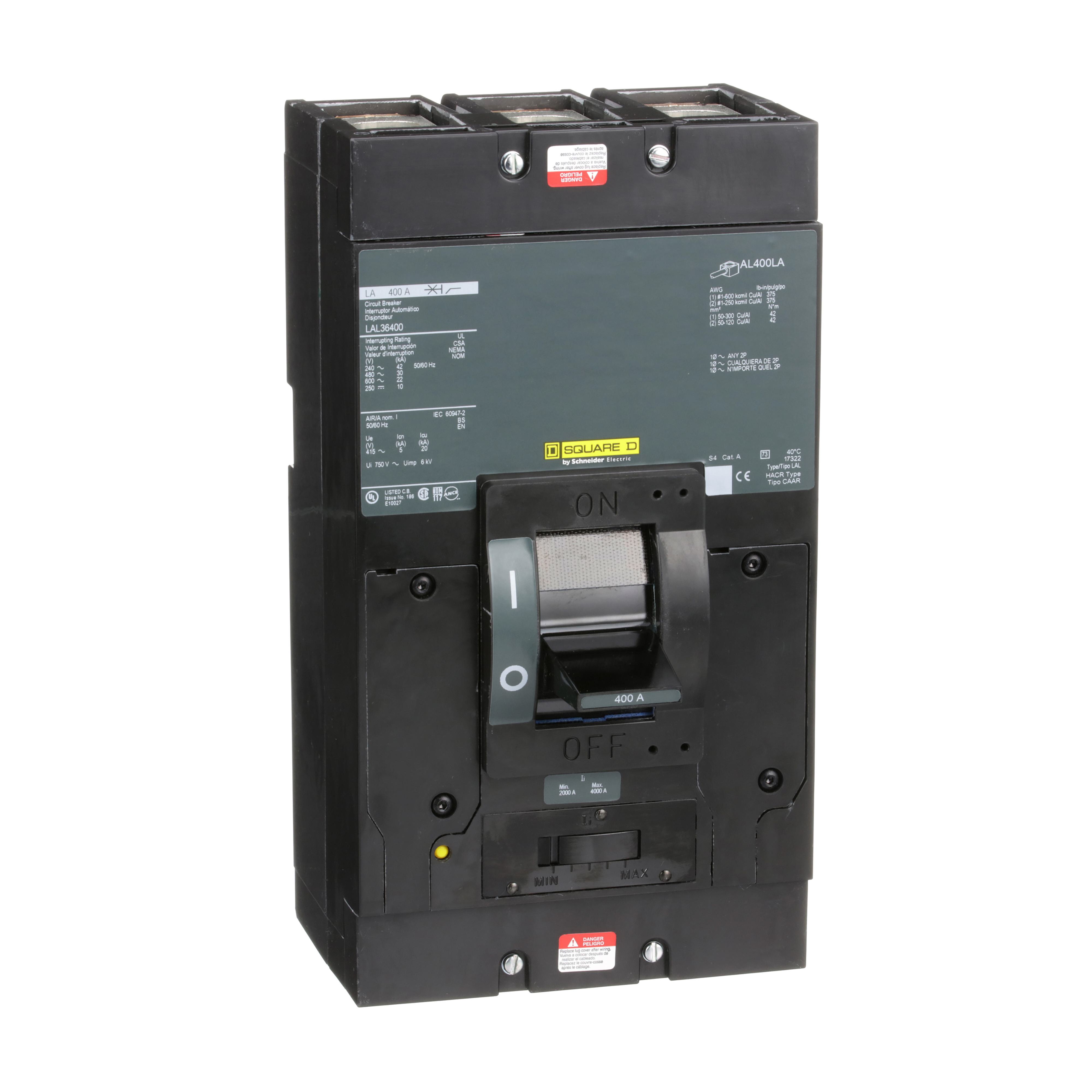

Square D™ LAL36400 Standard Type LAL Molded Case Circuit Breaker, 600 V AC/250 V DC, 400 A, 250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC Interrupt, 3 Poles, Thermal Magnetic Trip
Square D LA molded case circuit breakers provide thermal magnetic protection. Their primary function is automatic opening of a circuit under overload or short circuit conditions or manual opening. LA circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole. Push-to-Trip allows the circuit breaker to be manually tripped without exposure to live parts. This Square D LA molded case circuit breaker is a 3 pole unit mount breaker, 400A and 600VAC, with lugs. The thermal magnetic circuit breaker has an interrupting rating of 22kA for 600VAC and 10kA for 250VDC. LA breakers are UL 489, CSA, IEC certified.
-
BrandSquare D™
-
UPC785901426868
-
Manufacturer Part NumberLAL36400
-
CountryUSA
-
Temperature Rating104 deg F
-
FrameL
-
Frequency Rating50/60 Hz
-
Trip Range400/2000/4000 A
-
Trip TypeThermal Magnetic
-
TypeStandard Type LAL
-
Connection TypeLine/Load Lug
-
Voltage Rating600 V AC/250 V DC
-
Amperage Rating400 A
-
Wire Size1 AWG to 600 kcmil
-
Number of Poles3
-
Dimensions5.84 in L x 6 in W x 5.8 in D x 11 in H
-
Interrupt Rating250 VDC/600 VAC/42 kA at 240 VAC/30 kA at 480 VAC/22 kA at 600 VAC/10 kA at 125 VDC/10 kA at 250 VDC
- Use manual circuit open or automatic current interruption for overload or short circuit conditions
- Flexible platform for various types of mounting and terminations
- Unit mount and I-Line construction available
- Unit mount and I-Line construction available
- 400 A frame
-
Alternative Part Number8046261
-
UNSPSC39121601
-
IDEA Index ID8046261
-
Package DescriptionEACH
-
Standards/ApprovalsBuy American Act Compliant|RoHS Compliant|UL Listed|IEC Certified|CCC Certified|CSA Certified|ECCN EAR99|PROP65: This product can expose you to chemicals including: DINP and DIDP which is known to the State of California to cause Carcinogen and Reproductive harm. For more information go to www.p65warnings.ca.gov
-
Warranty18 months
-
RoHS
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
-
Technical Bulletin
