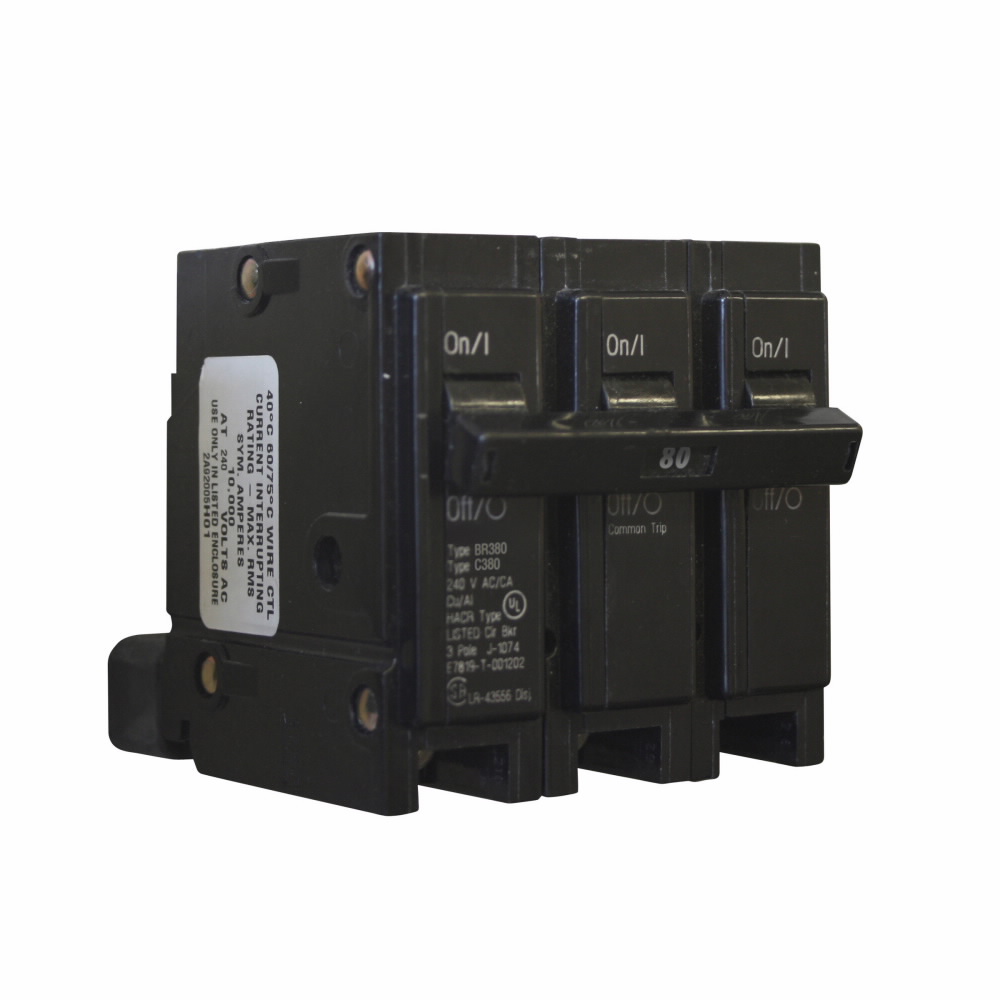

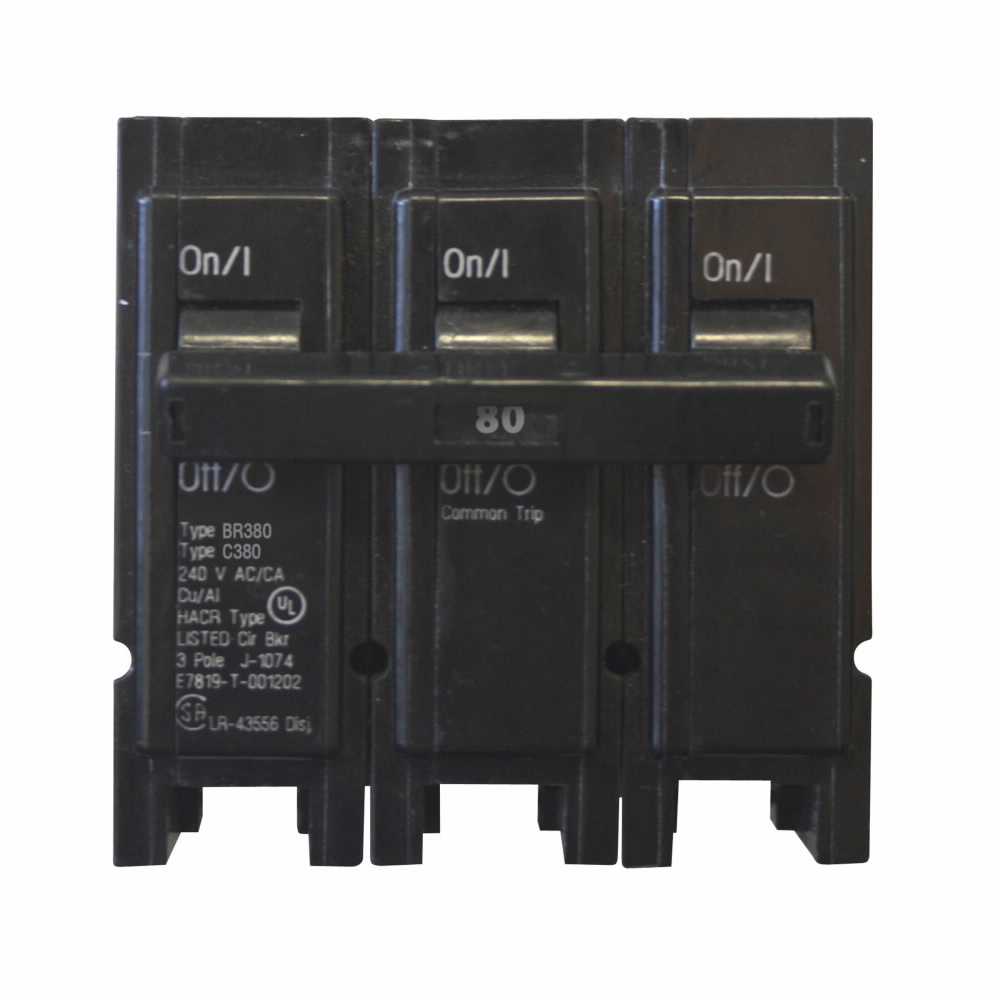

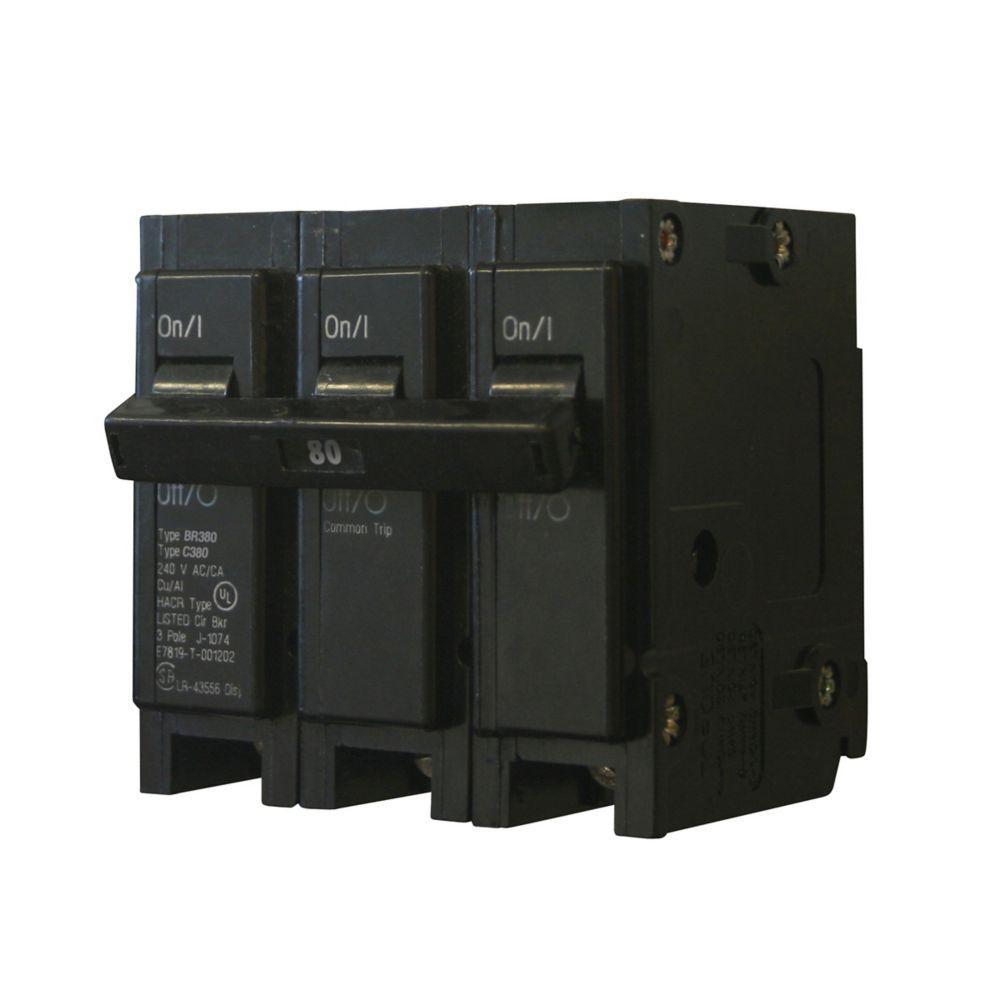

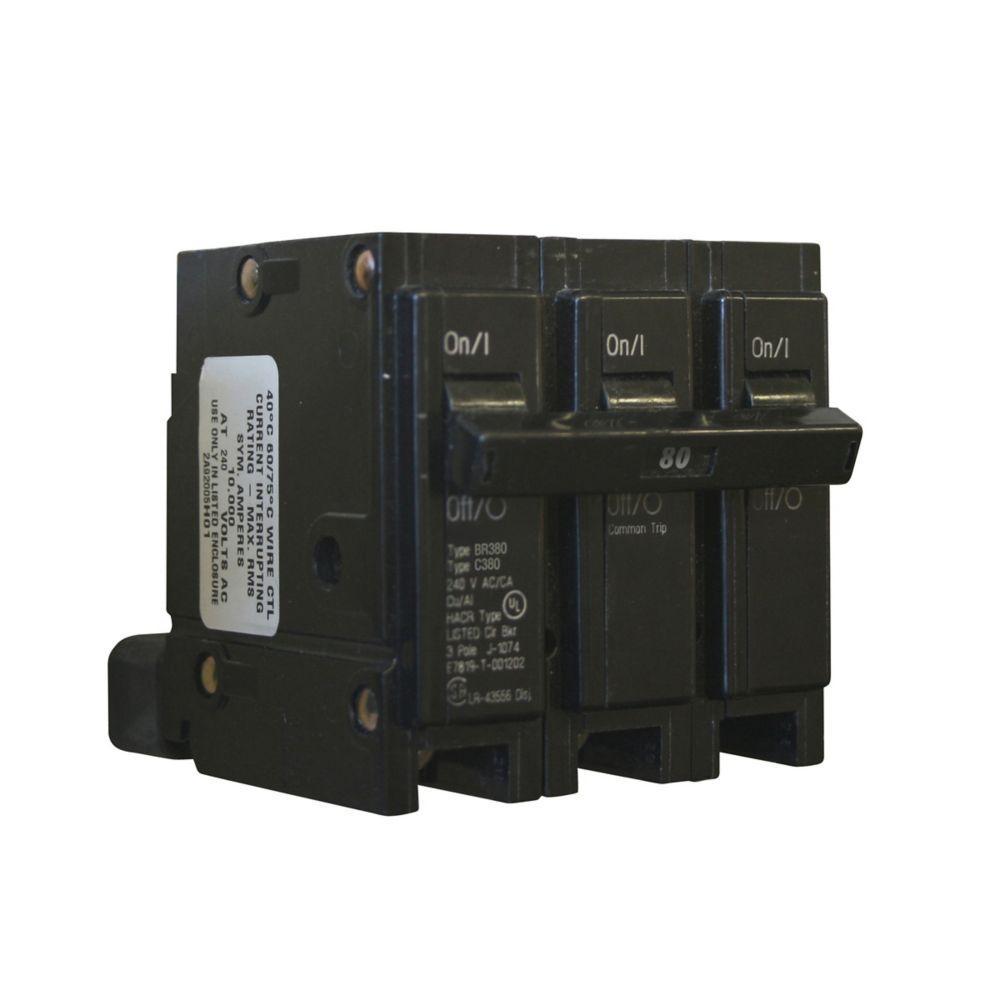

EATON BR380 Type BR Molded Case Circuit Breaker, 240 V AC, 80 A, 10 kAIC Interrupt, 3 Poles, Thermal Magnetic Trip
Eatons BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC782114103098
-
Manufacturer Part NumberBR380
-
CountryUSA|Canada
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Connection TypeLug-In/Lug-Out
-
Mounting TypePlug-On
-
Voltage Rating240 V AC
-
Amperage Rating80 A
-
Wire Size4 to 1/0 AWG Copper/Aluminum
-
Number of Poles3
-
Dimensions3-1/4 in L x 3 in W x 4 in H
-
Interrupt Rating10 kAIC
-
Phase3
- and AF/GF designs
- Short-body design maximizes your space inside the loadcenter
- creating additional wire-way and gutter space for ease of installation
- Easy to read trip codes through improved LEDs and a clear test button increases your troubleshooting efficiency
- Improved AFCI and GFCI algorithms significantly reduce nuisance tripping
- resulting in less call backs
-
Alternative Part Number7369471
-
UNSPSC39121603
-
IDEA Index ID7369471
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Full Engineering Drawing
