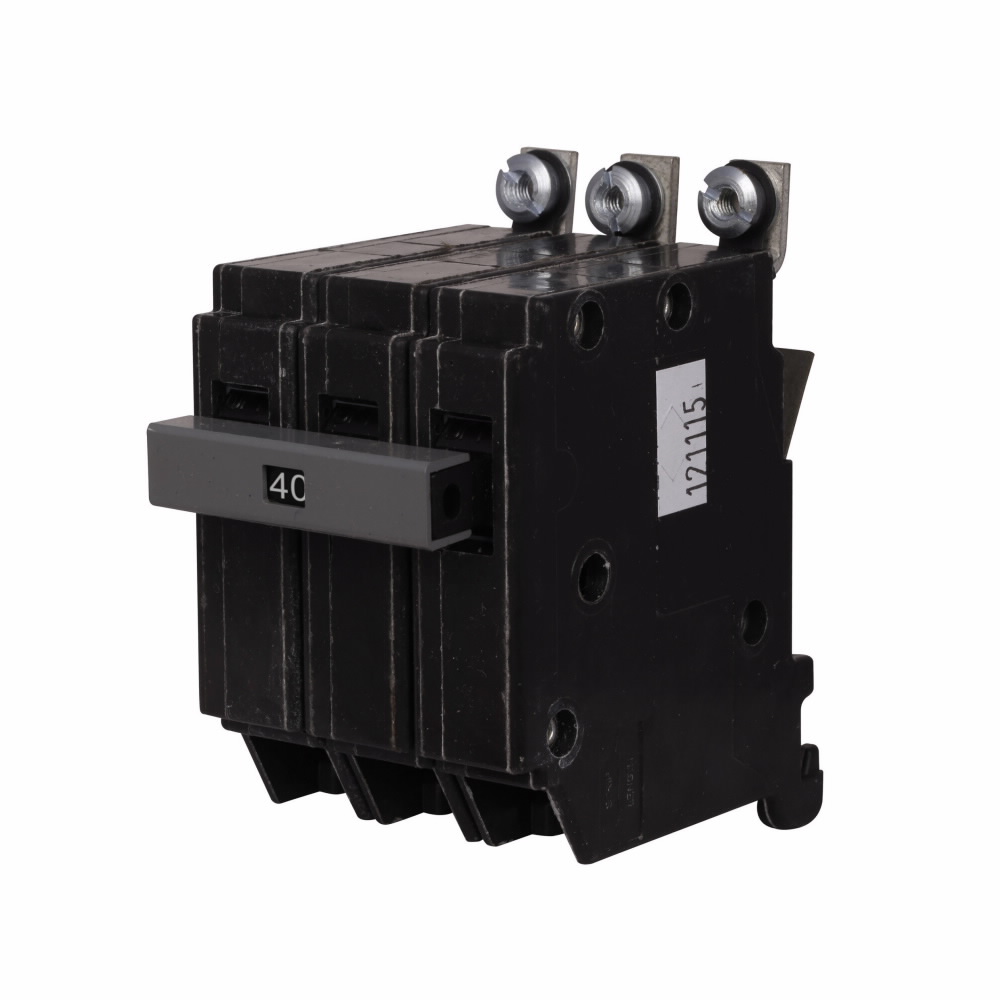

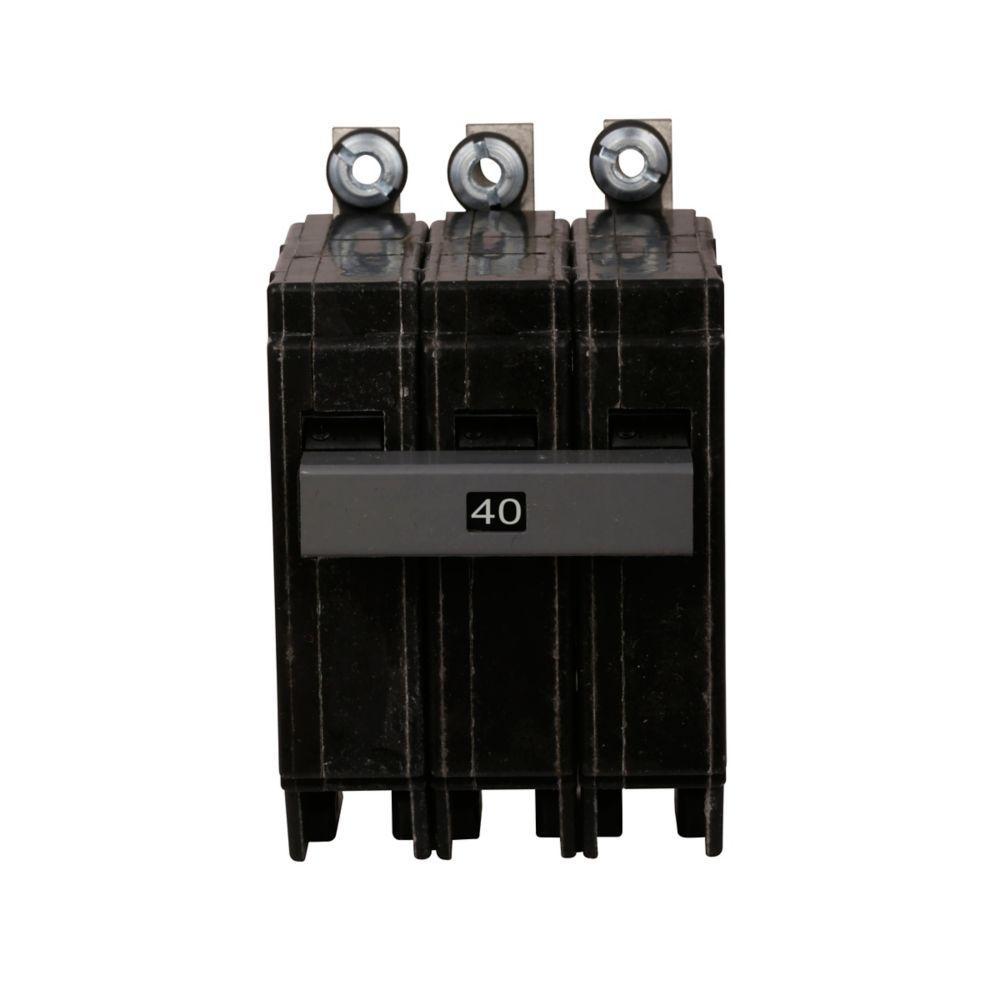

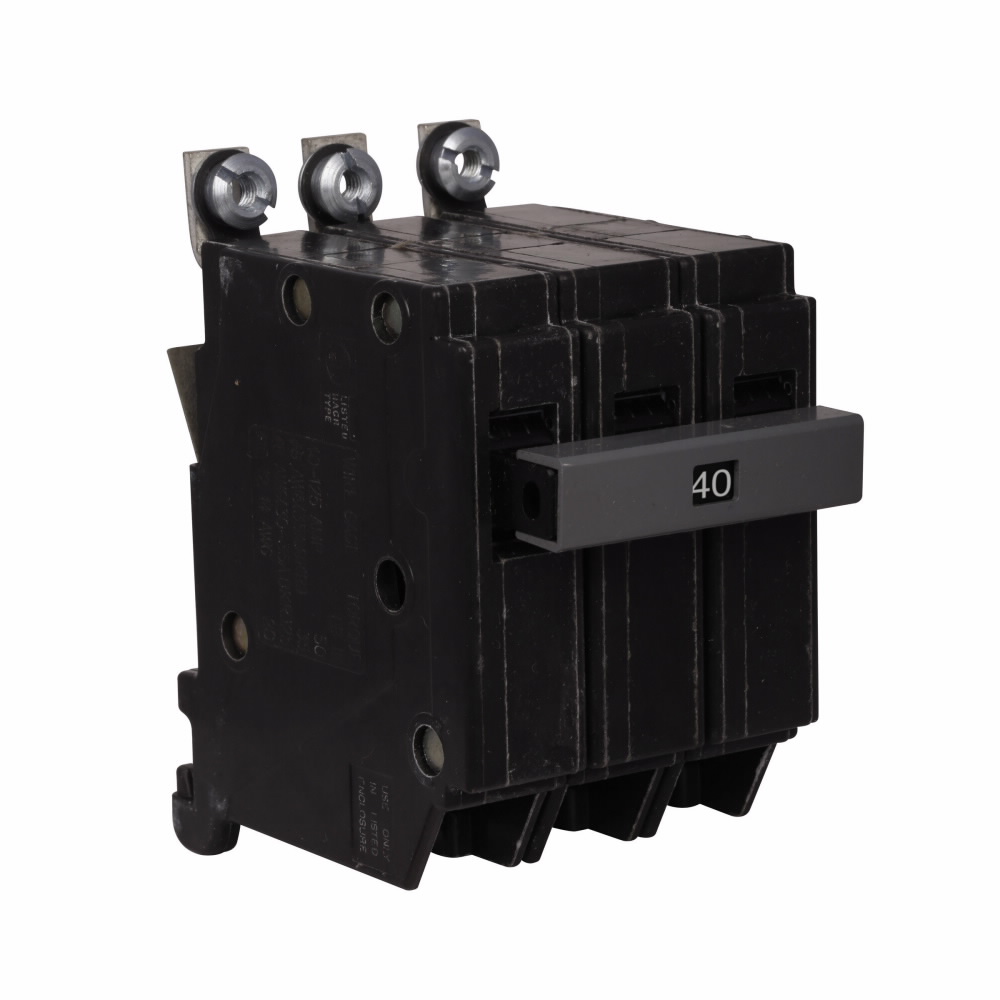

EATON CHB340 Type CHB Standard Molded Case Circuit Breaker, 240 V AC, 40 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC782113112626
-
Manufacturer Part NumberCHB340
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType CHB Standard
-
Connection TypeBox Lug
-
Mounting TypeBolt-On
-
Actuator TypeHandle
-
Voltage Rating240 V AC
-
Amperage Rating40 A
-
Wire Size8 to 4 AWG
-
Number of Poles3
-
Dimensions3.3 in L x 3.3 in W x 3.3 in H
-
Interrupt Rating10 kA
-
Phase3
- When combined with the mounting base, CHB breakers were also used for surface and DIN rail mount cable in cable out applications
- Type CHB breaker handles trip to a position between ON and off and require movement to full OFF to reset the breaker
- Contacts are sintered weld resistant silver tungsten
- Inverse time element thermal element tripping
- Copper aluminum wire
-
Alternative Part Number7336729
-
UNSPSC39121601
-
IDEA Index ID7336729
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Contact Manufacturer
-
