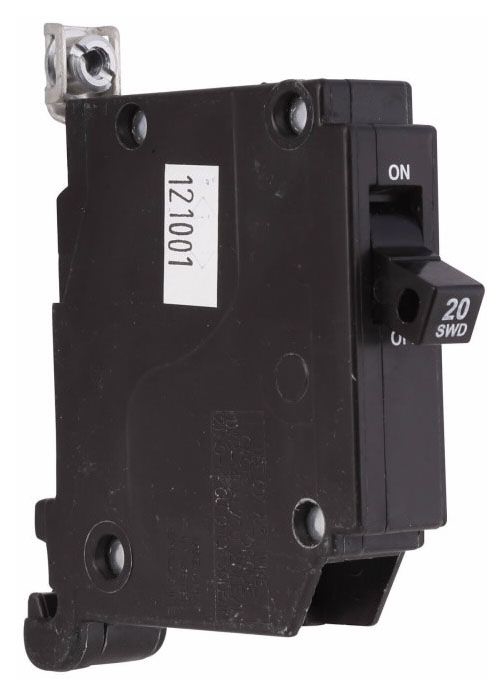

Cutler-Hammer CHB120 Type CHB Molded Case Circuit Breaker, 120/240 V AC, 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandCutler-Hammer
-
UPC782113112350
-
Manufacturer Part NumberCHB120
-
CountryUSA
-
Trip TypeThermal Magnetic
-
TypeType CHB
-
Connection TypeCable-In/Cable-Out
-
Mounting TypeDIN Rail
-
Voltage Rating120/240 V AC
-
Amperage Rating20 A
-
Wire Size14 to 8 AWG
-
Number of Poles1
-
Dimensions20 in L x 7.8 in W x 6.8 in H
-
Interrupt Rating10 kA
-
UNSPSC39121616
-
