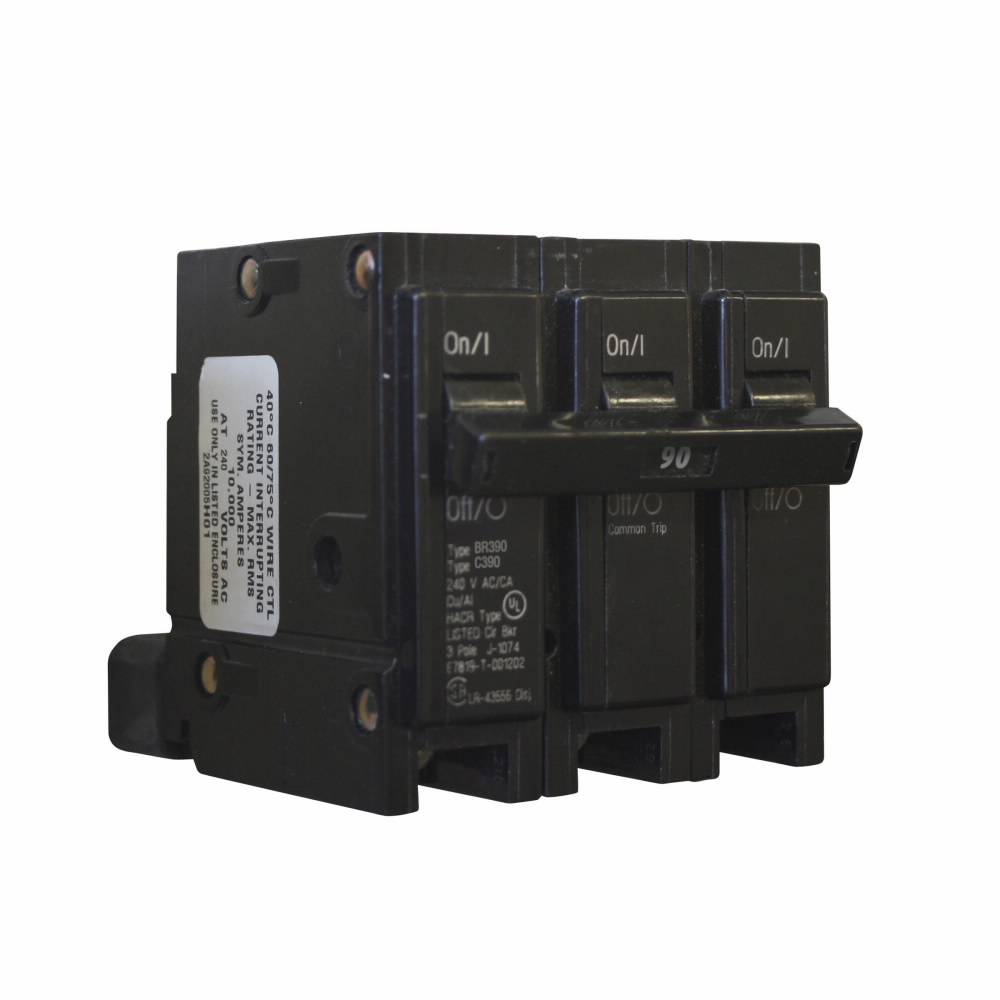

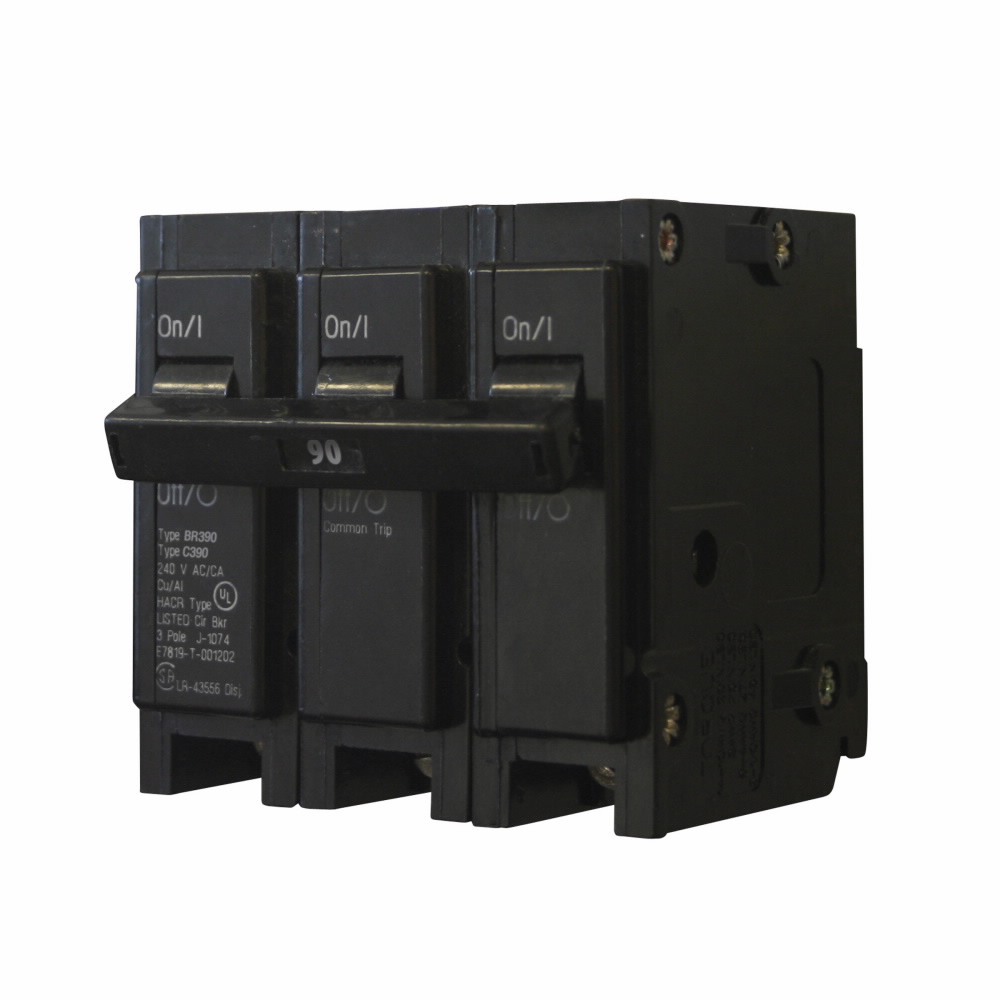

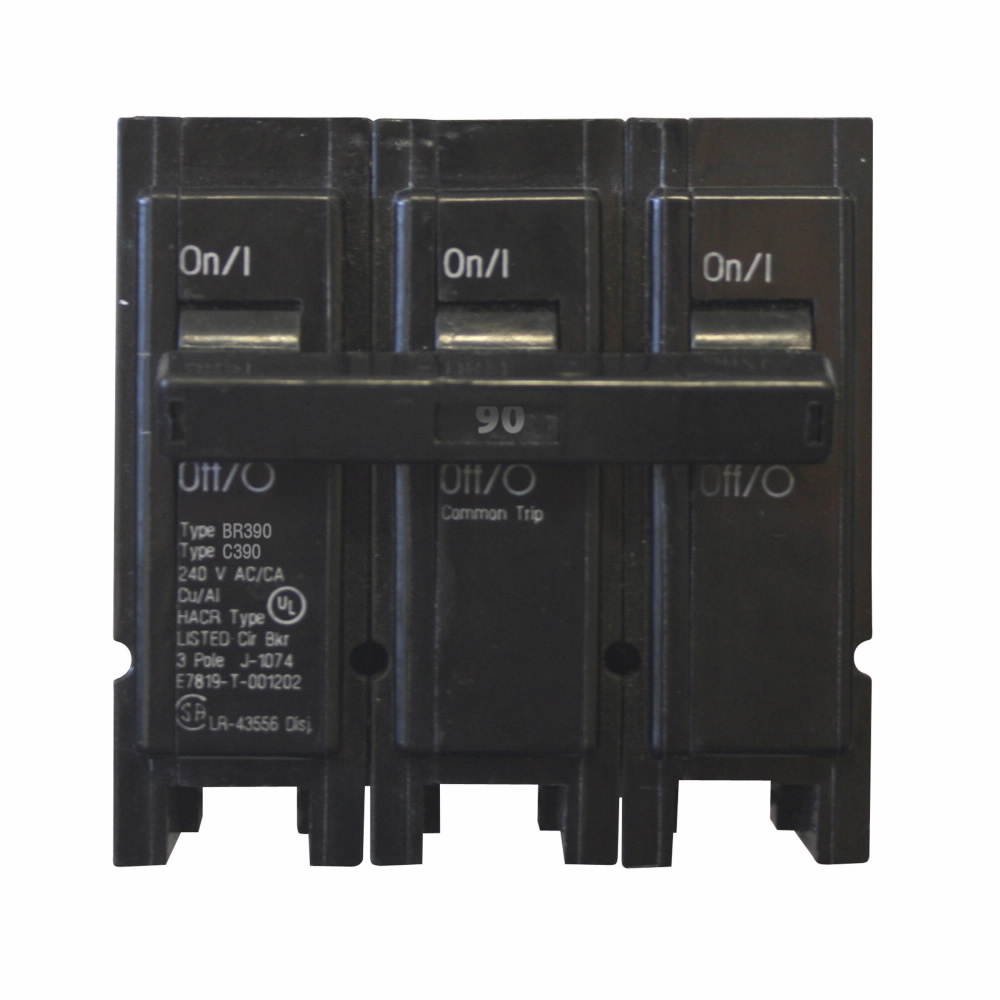

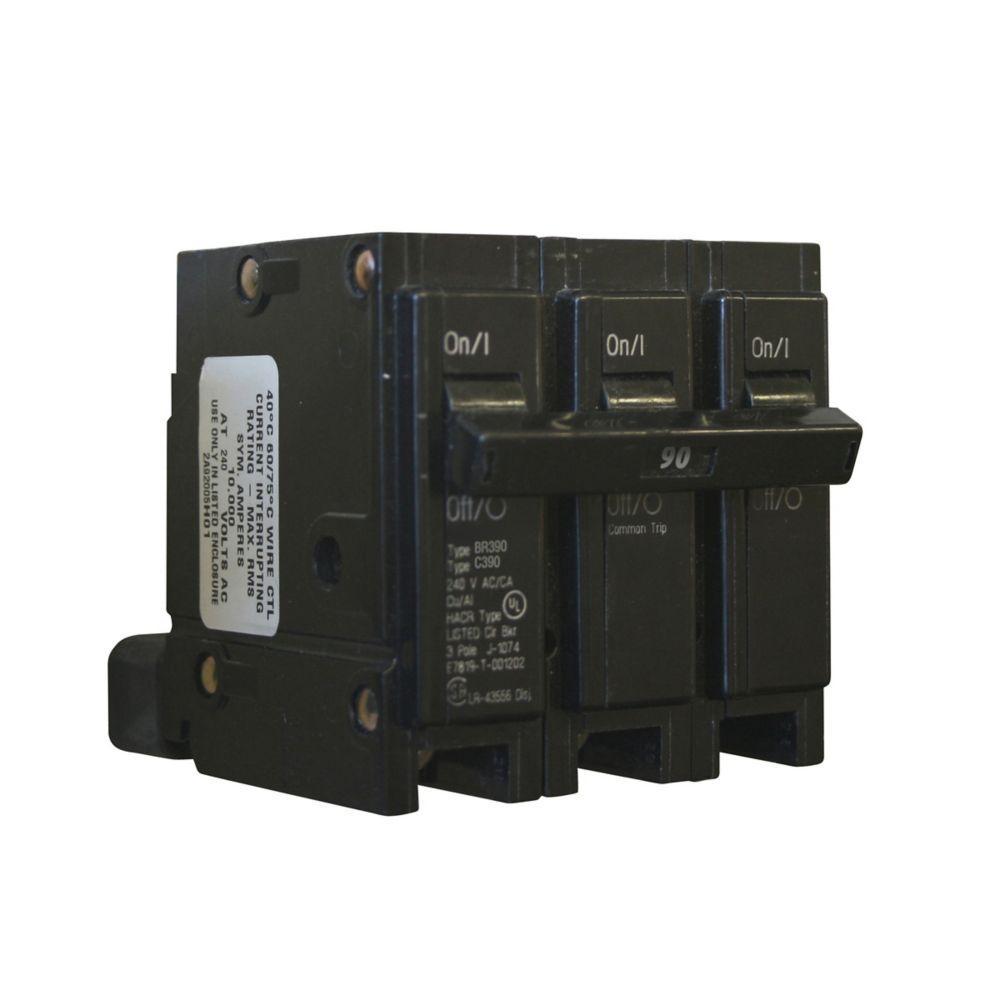

EATON BR390 Type BR Circuit Breaker, 240 V AC, 90 A, 10 kA Interrupt, 3 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676368056
-
Manufacturer Part NumberBR390
-
CountryUSA
-
Temperature Rating600 to 750 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating240 V AC
-
Amperage Rating90 A
-
Wire Size4 to 1/0 AWG
-
Number of Poles3
-
Dimensions3 in L x 3 in W x 3 in H
-
Interrupt Rating10 kA
-
Enclosure TypeNEMA 1/4X/3R
- Twin neutral design located in wireway, away from circuit breakers, means easier wiring and balancing of the load
- Extra 1-1/2 in knockout for bundling allows maximum wiring gutter space for ease of wiring in Compliant with NEC® requirements
- One-piece roll formed metal backpan with circuit breaker alignment notches ensures accurately aligned breaker and bus tabs
- Standard 14-3/8 in W enclosures fit snugly between wall studs
- Tangential main knockout eliminates the need for conduit offsets which permits faster, easier installations
- BR load centers feature Robertson® slotted square combo screw heads, which means only one screwdriver is need for installations
-
Alternative Part Number7434784
-
UNSPSC39121601
-
IDEA Index ID7434784
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Warranty10 years
-
