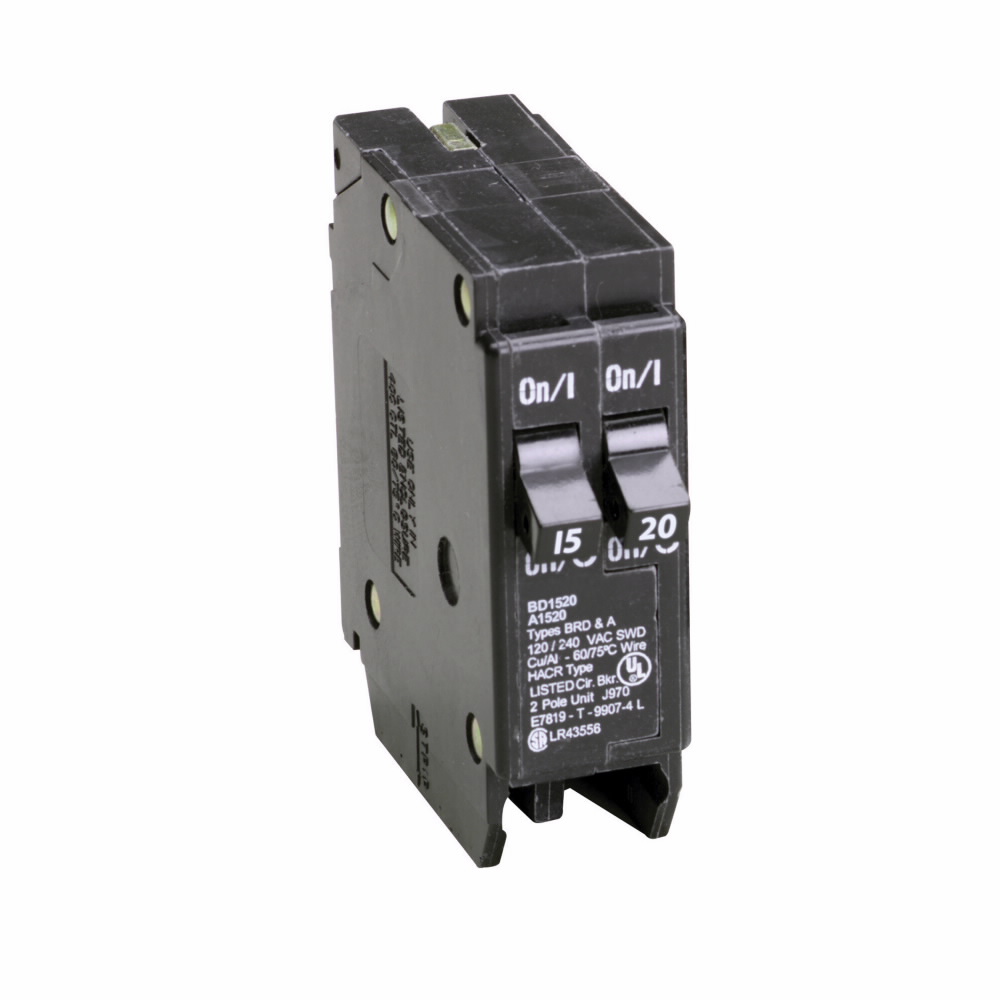

EATON BD1520 Type BD Duplex Circuit Breaker, 120 V AC, (1) 15 A, (1) 20 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676369107
-
Manufacturer Part NumberBD1520
-
CountryUSA
-
Temperature Rating600 to 750 deg C
-
Trip TypeThermal Magnetic
-
TypeType BD Duplex
-
Mounting TypePlug-On
-
Voltage Rating120 V AC
-
Amperage Rating(1) 15 A/(1) 20 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 1 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- For use with type BR load centers
-
Alternative Part Number7434927
-
UNSPSC39121601
-
IDEA Index ID7434927
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
