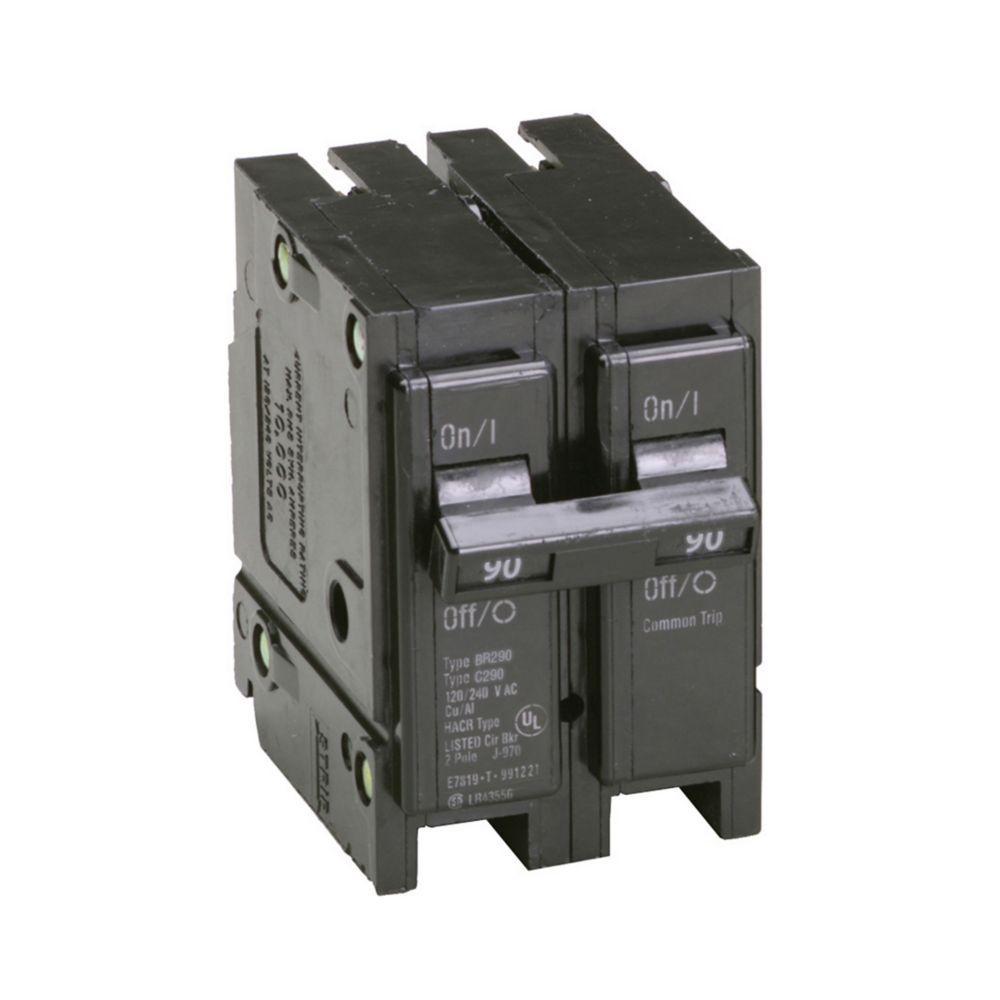

EATON BR290 Type BR Circuit Breaker, 120/240 V AC, 90 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
Eaton’s BR circuit breakers are used in indoor and outdoor BR loadcenters, spa panels, meter breakers and sub panels. They are designed for a wide range of applications such as high short-circuit interrupt, series rating combinations with upstream main breakers, thermal magnetic, AFCI, GFCI, equipment protection and dual function AF/GF.
-
BrandEATON
-
UPC786676363204
-
Manufacturer Part NumberBR290
-
CountryUSA
-
Temperature Rating40 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Actuator TypeHandle
-
Voltage Rating120/240 V AC
-
Amperage Rating90 A
-
Wire Size8 to 1/0 AWG
-
Number of Poles2
-
Dimensions3 in L x 2 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
- All BR circuit breakers have rejection tab feature
- Units feature a quick make, quick break switch mechanism combined with inverse time element tripping operation and trip free handle design
- Standard interrupting capacity
-
Alternative Part Number7434520
-
UNSPSC39121601
-
IDEA Index ID7434520
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489,Federal Specifications Classification W-C375
-
Specification Sheet
-
Owners/User Manual
-
Full Engineering Drawing
