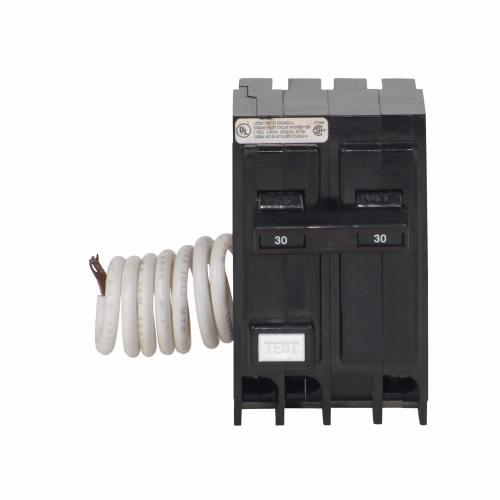

EATON GFCB230 Type GFCB Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Thermal Magnetic Trip
EATON GFCB230 Type GFCB Ground Fault Circuit Breaker, 120/240 VAC, 30 A, 10 kA Interrupt, 2 Poles, Common Trip
-
BrandEATON
-
UPC786676368995
-
Manufacturer Part NumberGFCB230
-
CountryUSA
-
Trip TypeThermal Magnetic
-
TypeType GFCB
-
Voltage Rating120/240 V AC
-
Amperage Rating30 A
-
Wire Size14 to 4 AWG
-
Number of Poles2
-
Interrupt Rating10 kA
-
Alternative Part Number7434910
-
UNSPSC39121603
-
IDEA Index ID7434910
-
Package DescriptionEACH
-
Standards/ApprovalsUL 489|Federal Specification W-C-375
-
Catalog
-
Specification Sheet
