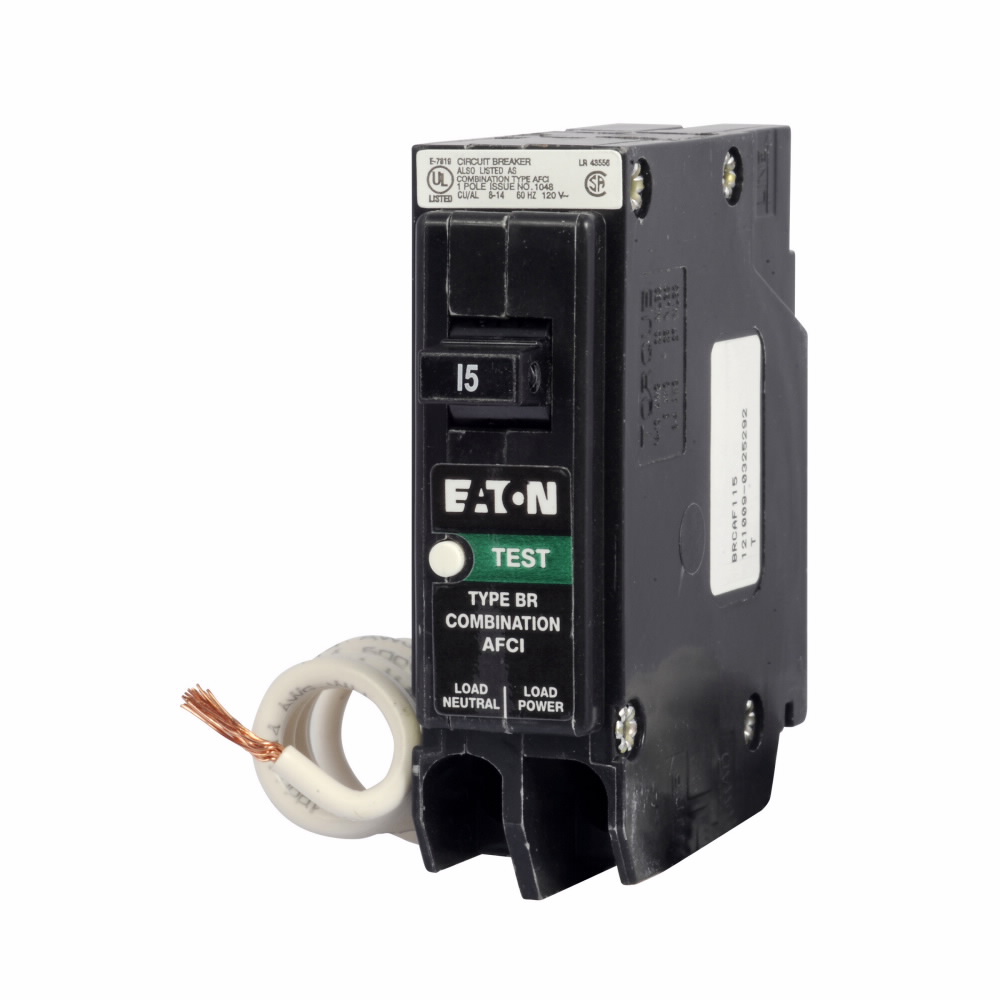

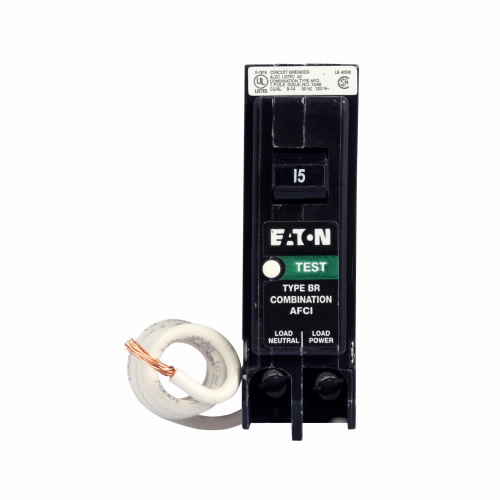

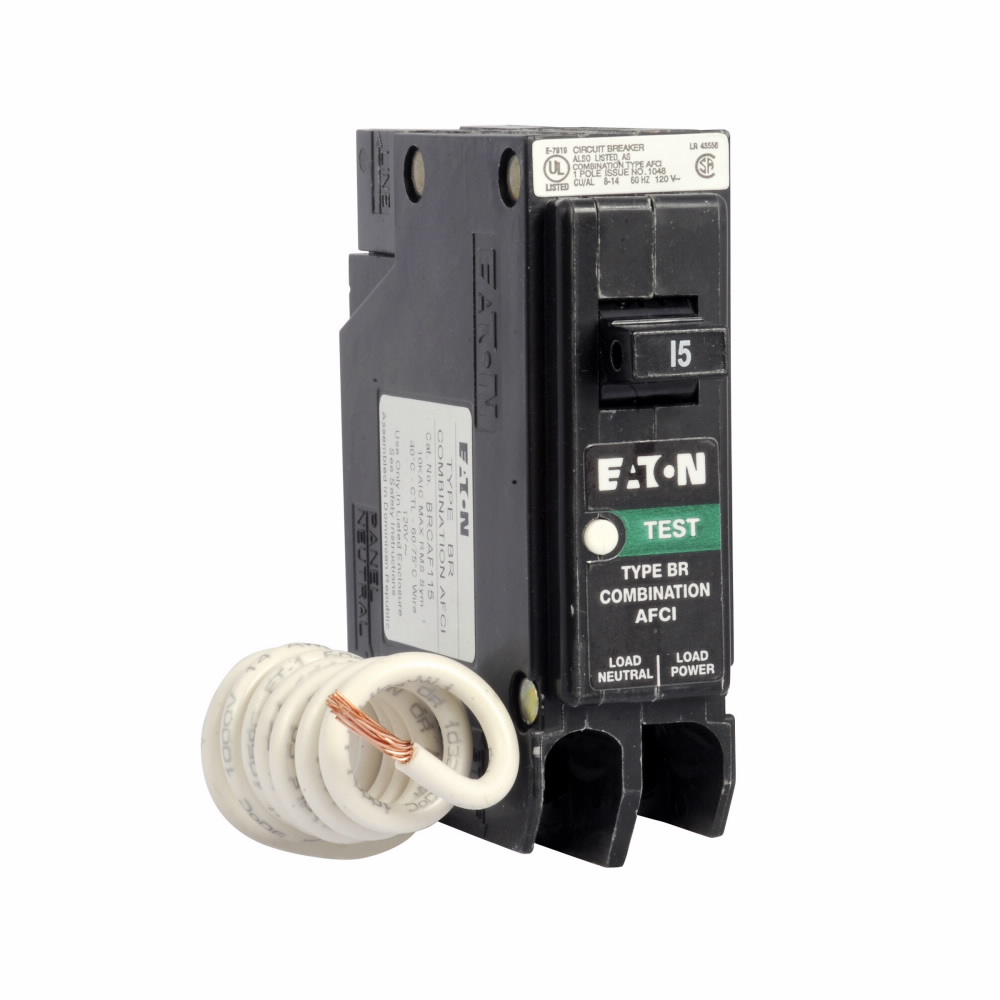

EATON FIRE-GUARD® BRCAF115 Type BRC Combination Arc-Fault Circuit Breaker, 120 VAC, 15 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
EATON's type BR (1 in) combination AFCI is available in 15 and 20 A configurations and includes options for 22 kAIC interrupting rating. Eaton has also made a diagnostic version of the BR arc fault which includes an led, indicating the most recent trip code to assist in troubleshooting.
-
BrandEATON
-
UPC786685514321
-
Manufacturer Part NumberBRCAF115
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BRC Combination
-
Connection TypeStandard Pigtail
-
Mounting TypePlug-On
-
Voltage Rating120 V AC
-
Amperage Rating15 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions6 in L x 3-1/2 in W x 1-1/4 in H
-
Interrupt Rating10 kA
- 1 in combination
- Compact footprint as standard
- Arc fault detection methodology tolerant of non-compliant devices
- Lifetime trip code retention
- Overvoltage protection
- Continuous self-test of electronic components
| Competitor Name | Competitor Part Number |
|---|---|
| Ferguson | CBRCAF115 |
-
UNSPSC39121603
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 1699|Federal Specification W-C-375|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
-
