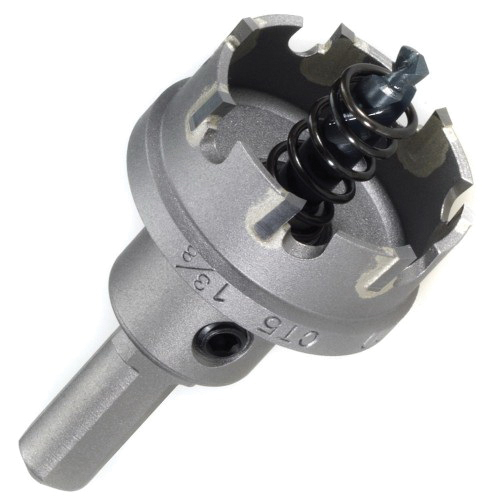

Champion CT5-3 Hole Cutter, 3 in Dia, 3/16 in D Cutting, Carbide Cutting Edge
Champion CT5-3 Hole Cutter, 3 in Dia, 3/16 in D Cutting, Carbide Cutting Edge
-
BrandChampion
-
UPC846035054850
-
Manufacturer Part NumberCT5-3
-
CountryUSA
-
Applicable MaterialsAluminum, Copper, Cutting Steel Plate, Cast Iron, FRP, Iron, Plastics and Stainless Steel
-
SeriesCT5
-
Cutting Depth3/16 in
-
Shank Size1/2 in
-
Cutting Edge MaterialCarbide
-
Shank TypeStraight
-
Diameter3 in
-
Body MaterialSteel
-
Overall Length2-19/32 in
- Special tungsten carbide teeth - excellent wear and heat resistance, tip pocket for quicker chip extraction
- 1-piece construction - stable accurate drilling
- Strong, heat resistant ejector spring ejects the slug saving time
- Safety collar stop prevents over penetration for safer, faster operation
- Stepped pilot drill reduces tip impact
- Cut longer and faster than hole saws and twist drills, increasing productivity on the job
- Perfect portable tool for the professional electrician, plumber, mechanic and contractor
- Better than bi-metal hole saws
-
UNSPSC23241600
-
Specification Sheet
