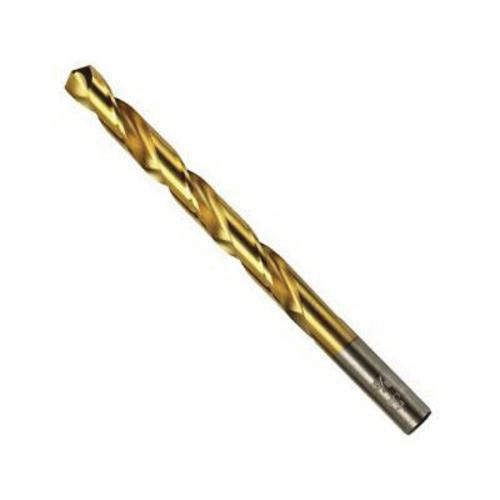

Irwin® 63914 Heavy Duty Jobber Length Drill Bit, 7/32 in Drill - Fraction, 0.2188 in Drill - Decimal Inch, 135 deg Point, HSS, TiN
Engineered for performance, the 7/32 in. Titanium Nitride Coating HSS Straight Shank, Jobber-Length Drill Bit resists heat and friction. Get up to 6x longer life than standard high-speed steel bits with this bit’s Titanium Nitride Coating. The 135° split-point tip limits walking and allows for immediate drilling. With premium high-speed steel, this bit has increased durability for convenience.
-
BrandIrwin®
-
UPC042526639142
-
Manufacturer Part Number63914
-
CountryUSA|Canada
-
FinishTiN
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialHSS
-
Through Coolant (Yes/No)No
-
Flute Length2-1/2 in
-
Flute TypeSpiral
-
TypeHeavy Duty
-
Applicable MaterialsAluminum, Brass, Copper, Drywall, Plastic and Wood
-
Series639
-
Number of Flutes2
-
Cutting Depth2-1/2 in
-
Shank Size7/32 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.2188 in
-
Drill Size - Fraction7/32 in
-
Overall Length3-3/4 in
- Titanium nitride coating extends the life of the bit, last up to six times longer than standard high speed steel drill bits
- Heavy duty web design provides extreme rigidity when drilling in metal applications
- Shorter cutting lips reduce torque when drilling in high tensile strength materials
- 135 deg split point reduces feed pressure for easier penetration without work hardening
| Cross-Reference Number |
|---|
| 334375 |
-
UNSPSC20121613
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
