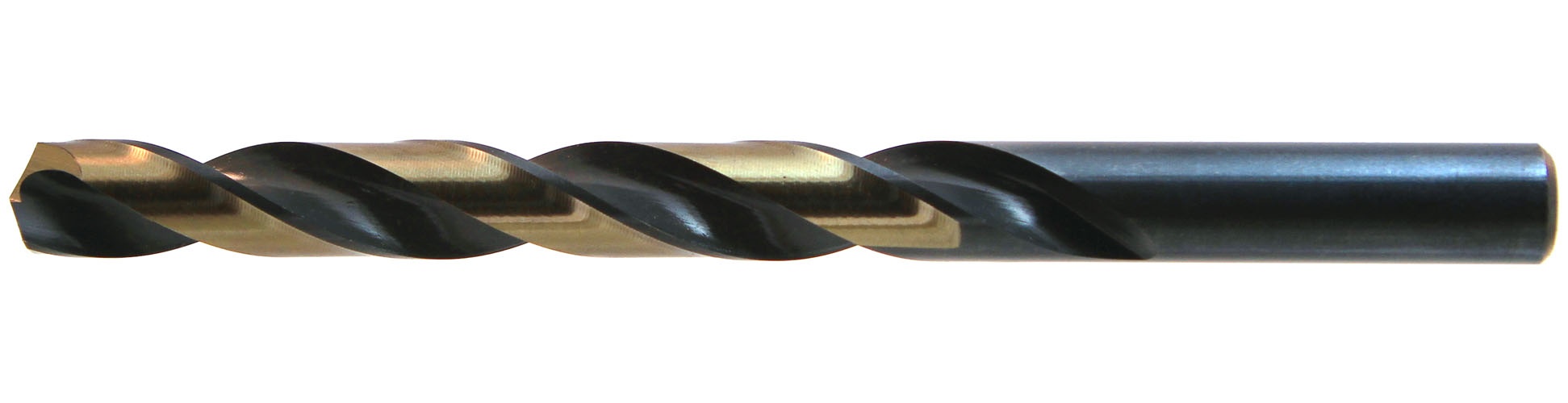

Drillco 400N110 Heavy Duty Jobber Length Drill Bit, 5/32 in Drill - Fraction, 0.1562 in Drill - Decimal Inch, 135 deg Point, M-7N Molybdenum HSS, Oxide Treated
Nitro® drills (NAS Type B) offer superior performance over standard HSS drills. Heavy-duty design increases tool life and performance. 135° Split Point reduces walking at the point. Ideal for both hand held and CNC Operations. Black & Gold.
-
BrandDrillco
-
UPC045997093451
-
Manufacturer Part Number400N110
-
CountryUSA|Canada
-
FinishOxide Treated
-
Point Angle135 deg
-
Point TypeSplit
-
MaterialM-7N Molybdenum HSS
-
Flute Length2 in
-
Flute TypeSpiral
-
TypeHeavy Duty
-
Applicable MaterialsStainless Steel and Hard Metal
-
Series400N
-
Number of Flutes2
-
Cutting Depth2 in
-
Cutting DirectionRight Hand
-
Cutting Edge MaterialM-7N Molybdenum HSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.1562 in
-
Drill Size - Fraction5/32 in
-
Overall Length3-1/8 in
- Made with premium grade HSS to last longer
- Self centering 135 split-point for reduced thrust requirements and minimized walking
- Black and gold surface treatment for maximum lubricity
- Jobber length for most use cases
- Jobber length for most use cases
-
UNSPSC23241606
-
Package Description12/PK
-
