MORSE C/Tool #53 MARXMAN JOBBERS DRILLBITS MCT 85107

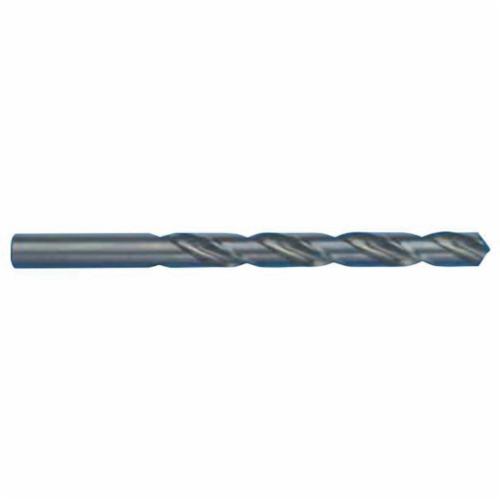

MARXMAN™ 85107 330QI General Purpose Jobber Length Drill Bit, #43 Drill - Wire, 0.089 in Drill - Decimal Inch, 118 deg Point, HSS, Black Oxide
-
BrandMARXMAN™
-
UPC683420851072
-
Manufacturer Part Number85107
-
CountryUSA
-
FinishBlack Oxide
-
Point Angle118 deg
-
Point TypeStandard
-
MaterialHSS
-
Flute Length7/8 in
-
Flute TypeStandard
-
TypeGeneral Purpose
-
Applicable MaterialsAluminum and Non-Ferrous Metals
-
Series330QI
-
Cutting Depth7/8 in
-
Shank Size0.089 in
-
Cutting Edge MaterialHSS
-
Shank TypeStraight
-
Drill Diameter Measurement SystemImperial
-
Drill Size - Decimal Inch0.089 in
-
Drill Size - Wire#43
-
Overall Length1-7/8 in
- Black oxide surface treatment increases wear resistance, reduces galling and chip welding, improves chip flow and increases drill lubricant retention
-
UNSPSC23241606
-
Standards/ApprovalsDIN 338
-
