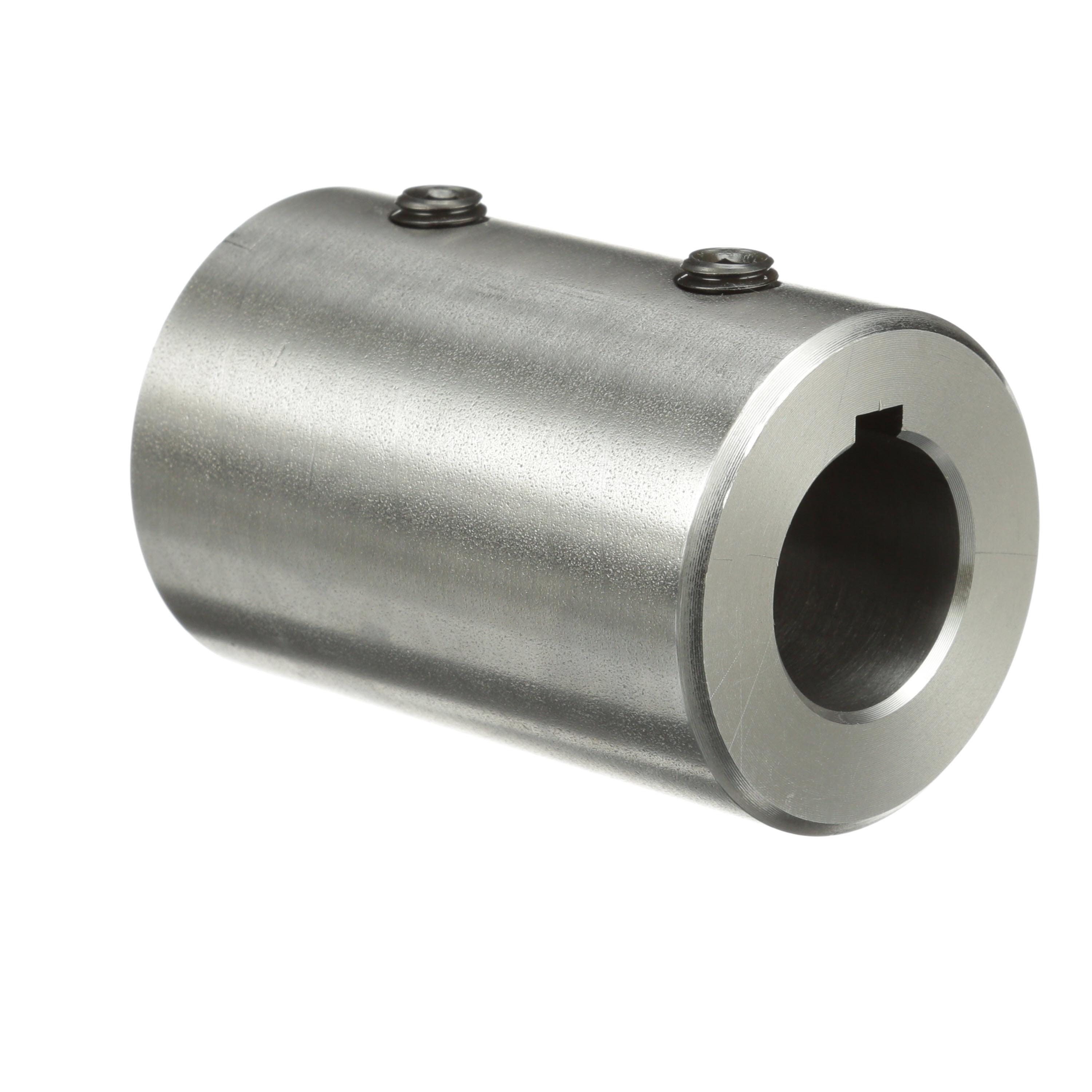

Browning® 1235795 Finished Bore Sleeve Coupling With 1/4 x 1/8 in Keyway, 1 in Dia Bore, 2 in OD, 3 in OAL
Browning® 1235795 Finished Bore Sleeve Coupling With 1/4 x 1/8 in Keyway, 1 in Dia Bore, 2 in OD, 3 in OAL
-
BrandBrowning®
-
UPC662289269655
-
Manufacturer Part Number1235795
-
CountryUSA
-
FinishPlain
-
MaterialBar Steel
-
TypeFinished Bore
-
Screw Size3/8-16 x 1/2 in
-
Outside Diameter2 in
-
Length Through Bore3 in
-
Bore Diameter1 in
-
Overall Length3 in
- High torque capacity
- Excellent balance characteristics
- They are fitted with hollow head setscrews
-
Alternative Part NumberCS 16K
-
UNSPSC31163003
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
