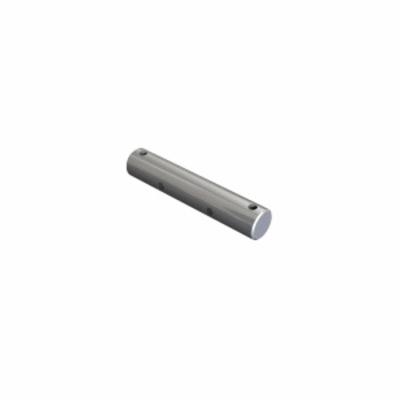

Martin CC4 Conveyor Coupling Shaft, 2 in Dia Shaft, Steel
Conveyor coupling shafts are used to join individual lengths of conveyor screws and allow for rotation within the hanger bearing. Steel couplings are normally furnished, however couplings with hardened bearing surfaces may be furnished where highly abrasive materials are being conveyed. Jig drilling allows for ease of installation.
-
BrandMartin
-
UPC697950078533
-
Manufacturer Part NumberCC4
-
CountryUSA|Canada
-
FinishProtective Coating
-
MaterialSteel
-
Shaft Diameter2 in
-
Shaft Length11-1/2 in
-
Dimensions11-1/2 in OAL
- Normally manufactured from T, G & P Material
- Increased torque capabilities
- Jig Drilling
-
UNSPSC24101700
-
Specification Sheet
-
Catalog
