Southwire® Titan2® 55107002 Type LTM-EF Liquid Tight Flexible Metal Conduit, 1-1/4 in Trade, 1.38 to 1.41 in ID x 1.63 to 1.66 in OD, 50 ft L, Aluminum/Steel
Ultratite Liquidtight Flexible Metal Conduit is suitable for the installation and protection of electrical conductors in circuits of 600 Volts nominal, or less. Also used in industrial and commercial applications for conveyors, blowers, cranes, air conditioners, machine tooling and lubrication equipment. It can be used in conditions of installation, operation, or maintenance require flexibility or protection from liquids, vapors, solids, or weather. Applications requiring movement, crossover connections, or tight bends.
-
BrandSouthwire®
-
UPC032886043062
-
Manufacturer Part Number55107002
-
CountryUSA
-
Temperature Rating14 to 140 deg F
-
FinishGalvanized
-
MaterialAluminum/Steel
-
Trade Size1-1/4 in
-
ColorGray
-
TypeType LTM-EF
-
Inside Diameter1.38 to 1.41 in
-
Bend Radius8 in
-
Outside Diameter1.63 to 1.66 in
-
Length50 ft
- Delivers wiring protection where listed products are not required
- For exposed or concealed installations requiring movement crossover connections or tight bends
- Requires standard liquid-tight fittings
- Delivers wiring protection where listed products are not required
- Seals out abrasives, alcohol, coolants, corrosive fumes and gases, dirt, grease, mineral acids, non-concentrated fixed alkalines, petroleum oils, salt air spray, water and weather
- For exposed or concealed installations requiring movement, crossover connections, or tight bends
- Oil resistant, sunlight resistant

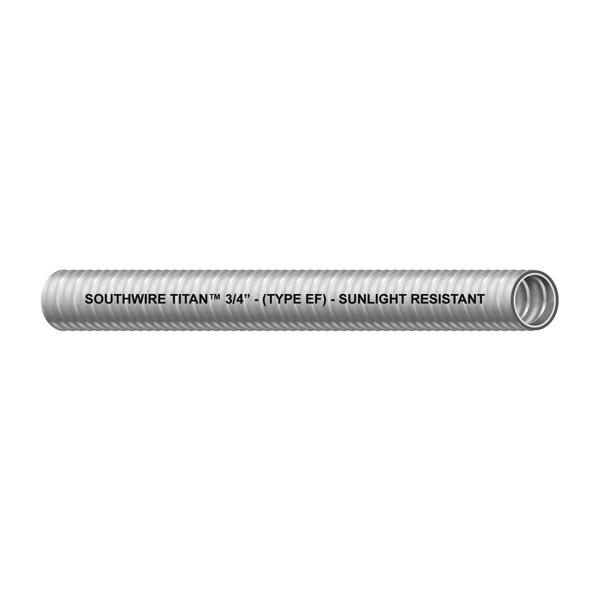

- Titan® type EF is manufactured with a spiral wound interlocked strip of corrosion resistant, galvanized steel
- A flame retardant, flexible PVC jacket is extruded over the metal core
- The gray jacket resists oils, mild acids and exposure to sunlight
-
Alternative Part Number8872426
-
UNSPSC39131706
-
IDEA Index ID8872426
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|Buy American Act Compliant|NEC Article 350|PROP65: This product contains material that,the State of California has determined|may cause reproductive harm. www.p65warnings.ca.gov/product
-
Warranty1 Year
-
