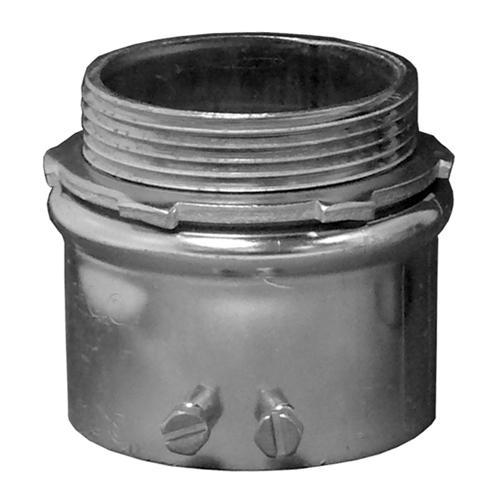

Appleton® ETP™ 4125S 4000S Non-Insulated Straight Set Screw Connector, 1-1/4 in Trade, For Use With EMT Conduit, Steel, Zinc Electroplated
Appleton® offer ETP™ 4000S Series steel EMT set screw connectors. They are used to ground and secure EMT raceways to boxes and enclosures. The 4000S Series have a male NPS threaded hub and are available with or without an insulated throat.
-
BrandAppleton®
-
UPC687855846160
-
Manufacturer Part Number4125S
-
CountryUSA|Canada
-
FinishZinc Electroplated
-
MaterialSteel
-
Trade Size1-1/4 in
-
ColorMetallic
-
TypeNon-Insulated Straight
-
Series4000S
-
Diameter1.69 in
-
Dimensions1-3/4 in L
-
Suitable For Use WithEMT Conduit
- Heavy steel walls
- Concrete tight when tapped
- Pre-set/pre-staked set screws
- Male hub NPS thread connection
- Insulated throat connector rated 90 deg C
- Slotted hexhead screw
-
Alternative Part Number8994984
-
UNSPSC39121434
-
IDEA Index ID8994984
-
Package DescriptionEACH
-
Standards/ApprovalsCSA 028507|C22.2 No. 18.3|cUL E14895|NEMA FB-1|UL 514B File No. E14815|UL File No. E14895
-
Specification Sheet
