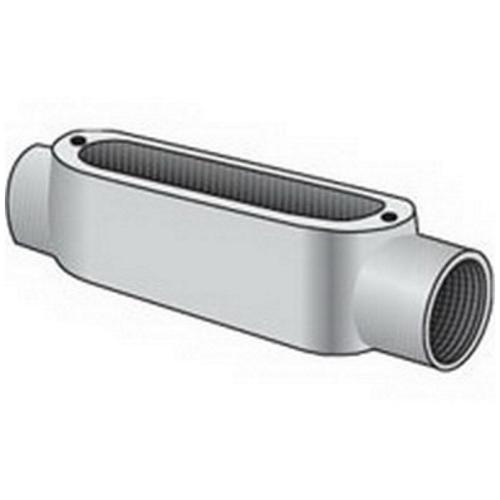

APPLETON C50A Type-C Conduit Outlet Body, 1/2 in Hub, 4.2 cu-in Capacity, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated
O-Z/Gedney Aluminum Conduit Bodies, Covers and Gaskets are used to connect and change direction of conduit runs. In addition to making bends in a conduit system, they allow connections for branch runs. These conduit bodies serve as pulling fittings and permit access to conductors for splicing and maintece.
-
BrandO-Z/Gedney
-
UPC783126074208
-
Manufacturer Part NumberC50A
-
CountryUSA|Canada
-
Capacity4.2 cu-in
-
FinishAluminum Enamel/Epoxy Powder Coated
-
MaterialDie Cast Copper Free Aluminum
-
TypeType-C
-
Connection TypeTapered FNPT
-
Hub Size1/2 in
-
Number of Hubs2
-
Dimensions5 in L x 1-1/4 in W x 1-3/8 in H
-
EnclosureNEMA FB-1/FB-2.1
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
-
Alternative Part Number8545400
-
UNSPSC39131708
-
IDEA Index ID8545400
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL 514A File No. E18095|C22.2 File No. 18/009795|Federal Specification A-A-50563|Hazardous Locations Class 1 Div 2 Per NEC Section 501-4(B)
-
Specification Sheet
