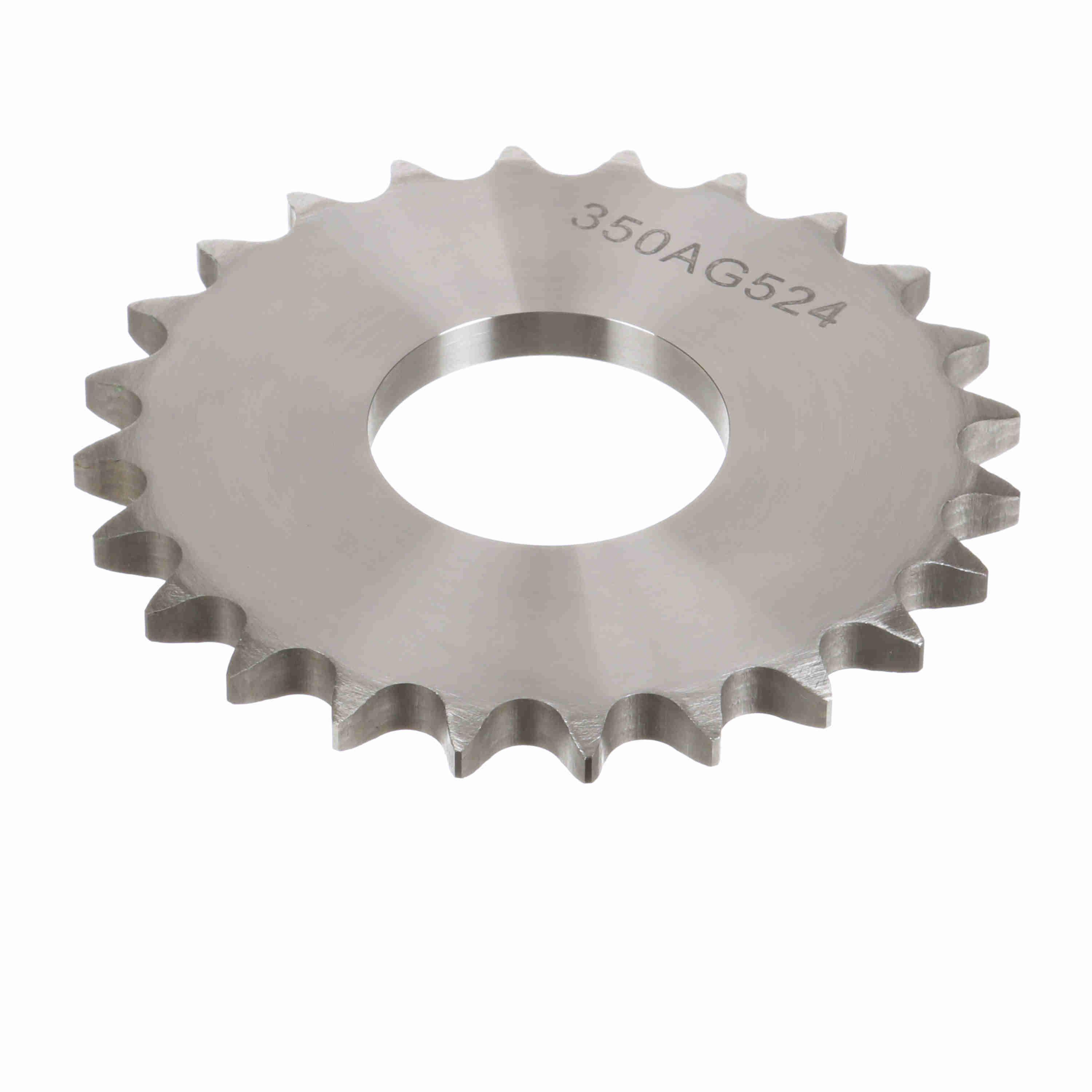

Morse® 194619 A Plate Ground Sprocket, 24 Teeth, For Use With Model 350 Torque Limiter Model, 130.05 mm OD
Morse® 194619 A Plate Ground Sprocket, 24 Teeth, For Use With Model 350 Torque Limiter Model, 130.05 mm OD
-
BrandMorse®
-
UPC662288949312
-
Manufacturer Part Number194619
-
CountryUSA
-
TypeA Plate
-
Number of Teeth24
-
Outside Diameter130.05 mm
-
Suitable For Use WithModel 350 Torque Limiter Model
- Morse and Browning offer a complete line of Torque Overload Devices to protect machinery from overloads or jams
- Torque limiter bushing must be purchased separately
- MasterFit Pro - Condenser Fan Motor
- Permanent Split Capacitor (PSC), Capacitor Required - 15or 12.5 Mfd-370 V (Supplied with Motor)
- Thermally Protected
- Totally Enclosed Air Over
- Class F Insulation, 70 deg C Ambient
- Ball Bearing
- 1/2 in Diameter Shaft with Double Flat Leads with Quick Connect Terminals
- Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount
-
Alternative Part Number350-AG524 SPKT PKG
-
UNSPSC31171901
-
Package DescriptionEACH
-
WarrantyLimited
-
