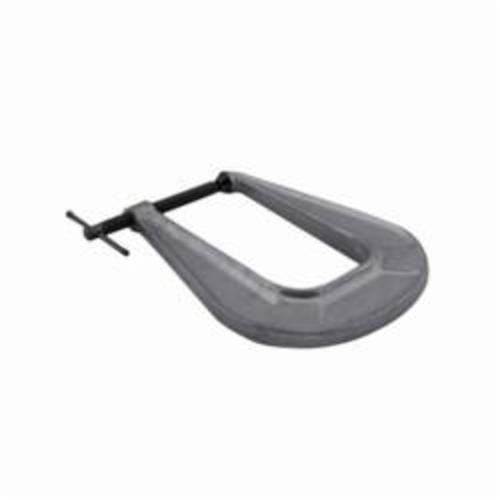

Wilton #246 EXTRA DEEP CARRIAGE C CLAMPS WIL 42460
Wilton 140 Xtra deep reach carriage c-clamps are ideal for light industrial, woodworking and repair applications. They feature throat depths up to 6-1/4 in, a black oxide coating, oscillating head and sliding cross pin handle.
-
BrandWilton®
-
UPC019907424604
-
Manufacturer Part NumberWL9-42460
-
CountryUSA
-
Throat Depth6-1/4 in
-
Clamping Capacity2-1/2 in
-
Clamping Pressure1600 lb
-
TypeExtra Deep Reach Light Duty
-
Screw Size7/16 in
-
Series140 Series
-
Dimensions8.6 in L x 7 in W x 1.6 in H
-
Jaw Opening2-1/2 in
-
Body MaterialDuctile Iron
- Deep reach pattern: provided maximum depth for applications requiring increased throat capacity
- Ductile iron frames rugged frames designed for maximum clamping pressure
- Standard c-clamps are used for holding and aligning together multiple workpieces
| Competitor Name | Cross-Reference Number |
|---|---|
| MSC | 85516912 |
-
Alternative Part Number42460
-
UNSPSC27112120
-
WarrantyLifetime
-
