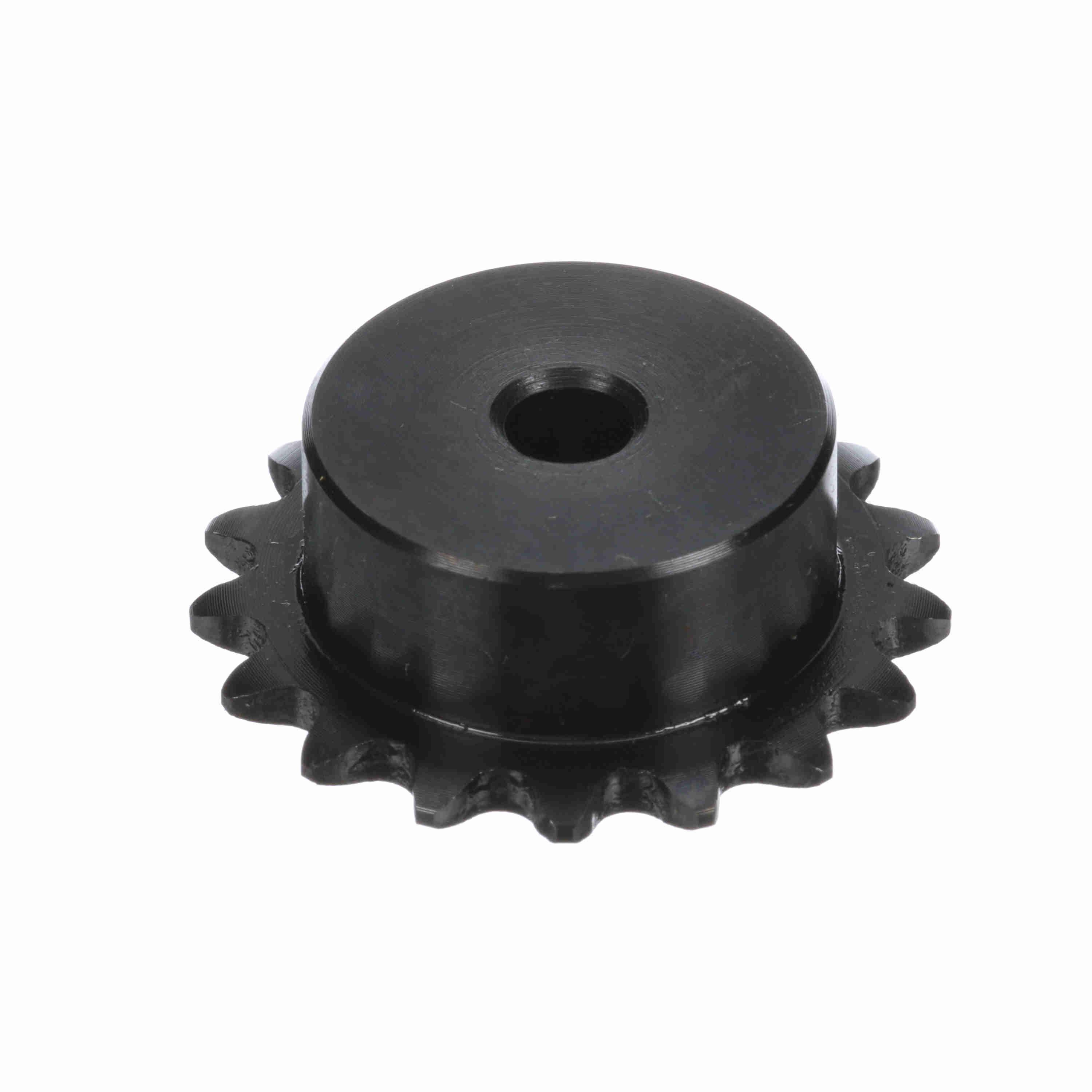

Browning® 1121334 Single Strand Minimum Bore Type B Roller Chain Sprocket With Keyway, 1/4 in Dia Bore, 1.49 in OD, #25 Chain, 17 Teeth, 1/4 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289118311
-
Manufacturer Part Number1121334
-
CountryUSA
-
Pitch1/4 in
-
Pitch Diameter1.361 in
-
MaterialSteel
-
Chain Size#25
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter1-1/32 in
-
Number of Teeth17
-
Keyway Size1/8 x 1/16 in
-
Outside Diameter1.49 in
-
Length Through Bore1/2 in
-
Bore Diameter1/4 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- For use with 1/4 in pitch ANSI chain
-
Alternative Part Number25B17
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
