IDC Select® IDC H60B13F-7/8 Finished Bore Type B Single Strand Roller Chain Sprocket, 7/8 in Dia Bore, 3.49 in OD, 60 Chain, 13 Teeth, 3/4 in Pitch, C1045 Steel

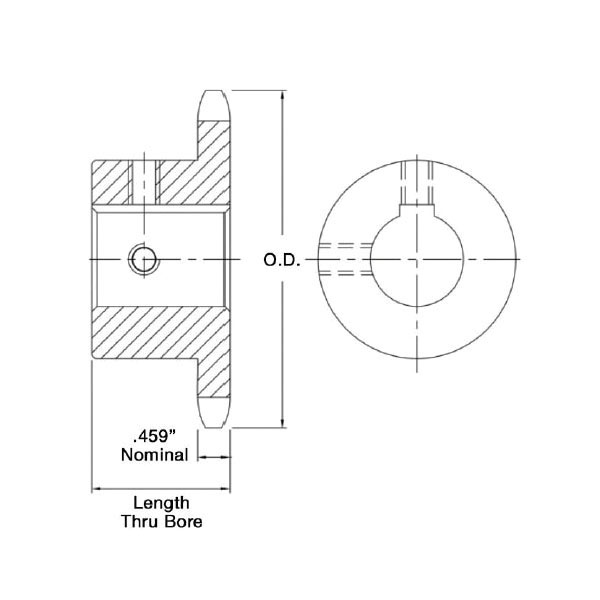

IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.
-
BrandIDC Select®
-
UPC887412037820
-
Manufacturer Part NumberIDC H60B13F-7/8
-
CountryUSA
-
Pitch3/4 in
-
Pitch Diameter3.134 in
-
FinishBlack Oxide
-
MaterialC1045 Steel
-
Chain Size60
-
TypeFinished Bore Type B
-
Screw Size1/4 in
-
Number of Teeth13
-
Keyway Size3/16 in W x 3/32 in D
-
Outside Diameter3.49 in
-
Length Through Bore1-1/4 in
-
Bore Diameter7/8 in
- Hardened teeth for longer life
- Bored to size and ready to install
-
UNSPSC31171901
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
