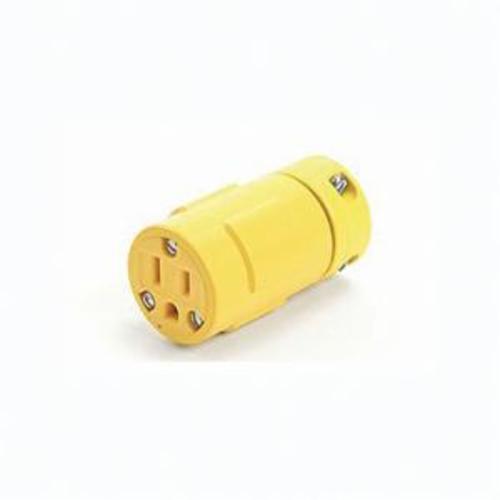

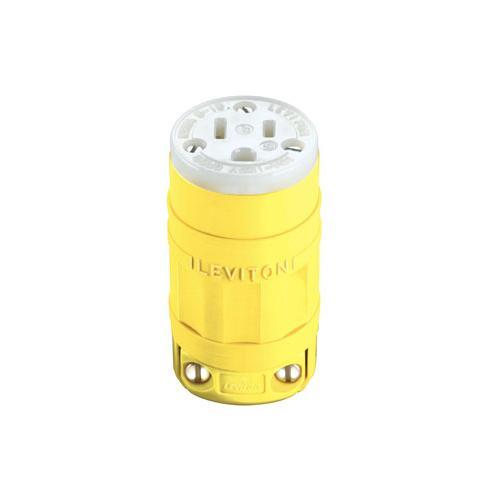

Leviton® 1547 Cable Mount Grounding Severe Duty Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, Yellow
Leviton® Dustguard® line of industrial grade plugs and connectors feature rugged construction that resists impact, sunlight, chemicals and rough use. All contacts are solid 1-piece construction for superior conductivity. They are engineered to IP44 splashproof and dust tight standards. The ergonomic, fluted body design with radial gripping edge is ideal for gripping and pulling. The unique cord clamp accepts a wide range of cord sizes, providing a secure grip without damaging the cord. And, they are backed by a limited lifetime warranty.
-
BrandLeviton®
-
UPC078477848142
-
Manufacturer Part Number1547
-
CountryUSA|Canada
-
Temperature Rating-40 to 60 deg C
-
Terminal TypeScrew
-
MaterialTPV
-
ColorYellow
-
TypeCable Mount Grounding Severe Duty
-
GradeIndustrial
-
NEMA RatingNEMA 5-15R
-
Voltage Rating125 V AC
-
Cord Diameter0.25 to 0.685 in
-
Amperage Rating15 A
-
Number of Poles2
-
Dimensions1.54 in Dia x 3 in H
-
Number of Wires3
-
EnclosureIP44
-
Series130141
- Tongue and groove design of front module and TPV body assures tight fit in husk and offers excellent barrier against dirt and dust
- Rubber membrane seal for secure cord grip, creates a barrier and keeps contaminants from entering the device interior
- Santoprene TPV husk exterior offers excellent resistance to cracking and fading from sunlight exposure, repels moisture and fluids and endures extreme temperature variations
- Fast threading assembly screws, keyed wiring module and husk, self-centering strain relief clamps and deep funneled wiring wells provide for simple and fast assembly
- 18 to 10 AWG terminal accommodation
- Transparent wiring guide to verify all wire strands are in place before securing wire
- Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
- 2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
- Nickel plated brass plug blades and connector contacts, nylon Safeway® outer housing, stainless steel face screws, nylon face insert, brass wire saddle clamp, steel, zinc plated cord clamp screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 1PKF9 |
-
Alternative Part Number7344449
-
UNSPSC39121402
-
IDEA Index ID7344449
-
Package DescriptionEACH
-
Standards/ApprovalsNEMA (WD-1, WD-6);ANSI (C-73);NOM Certified (057);CSA C22.2 No. 42 (File LR-406);UL Fed Spec WC-596 (File E13393);UL Listed (498)
-
Warranty2 years Limited
-
RoHS
-
Instruction/Installation Manual
