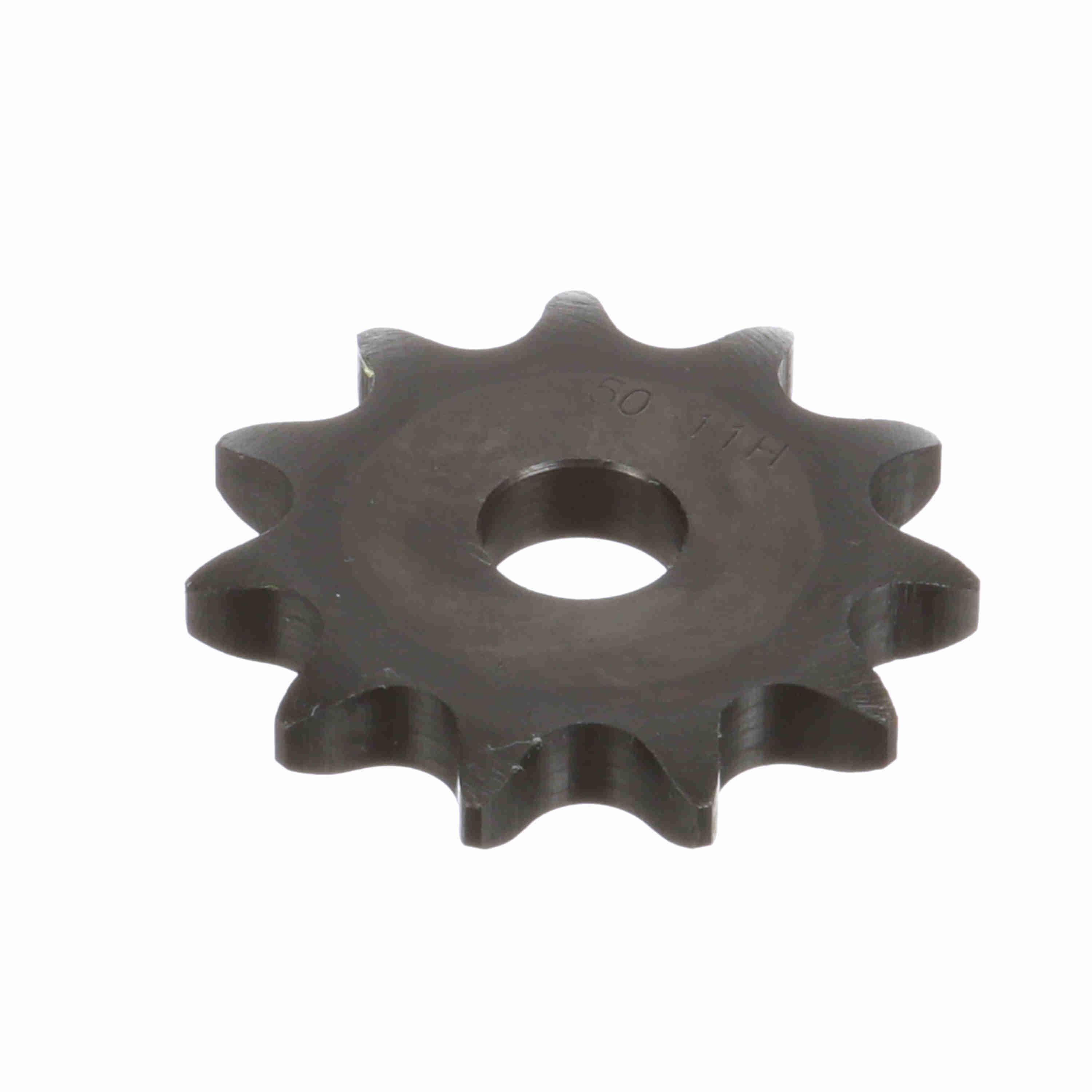

Browning® 1108711 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 2.504 in OD, #50 Chain, 11 Teeth, 5/8 in Pitch, Steel
Browning® 1108711 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 2.504 in OD, #50 Chain, 11 Teeth, 5/8 in Pitch, Steel
-
BrandBrowning®
-
UPC662289281343
-
Manufacturer Part Number1108711
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter2.218 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand Plate Type A
-
Number of Teeth11
-
Outside Diameter2.504 in
-
Bore Diameter5/8 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 5/8 in pitch ANSI chain
-
Alternative Part Number50A11
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
