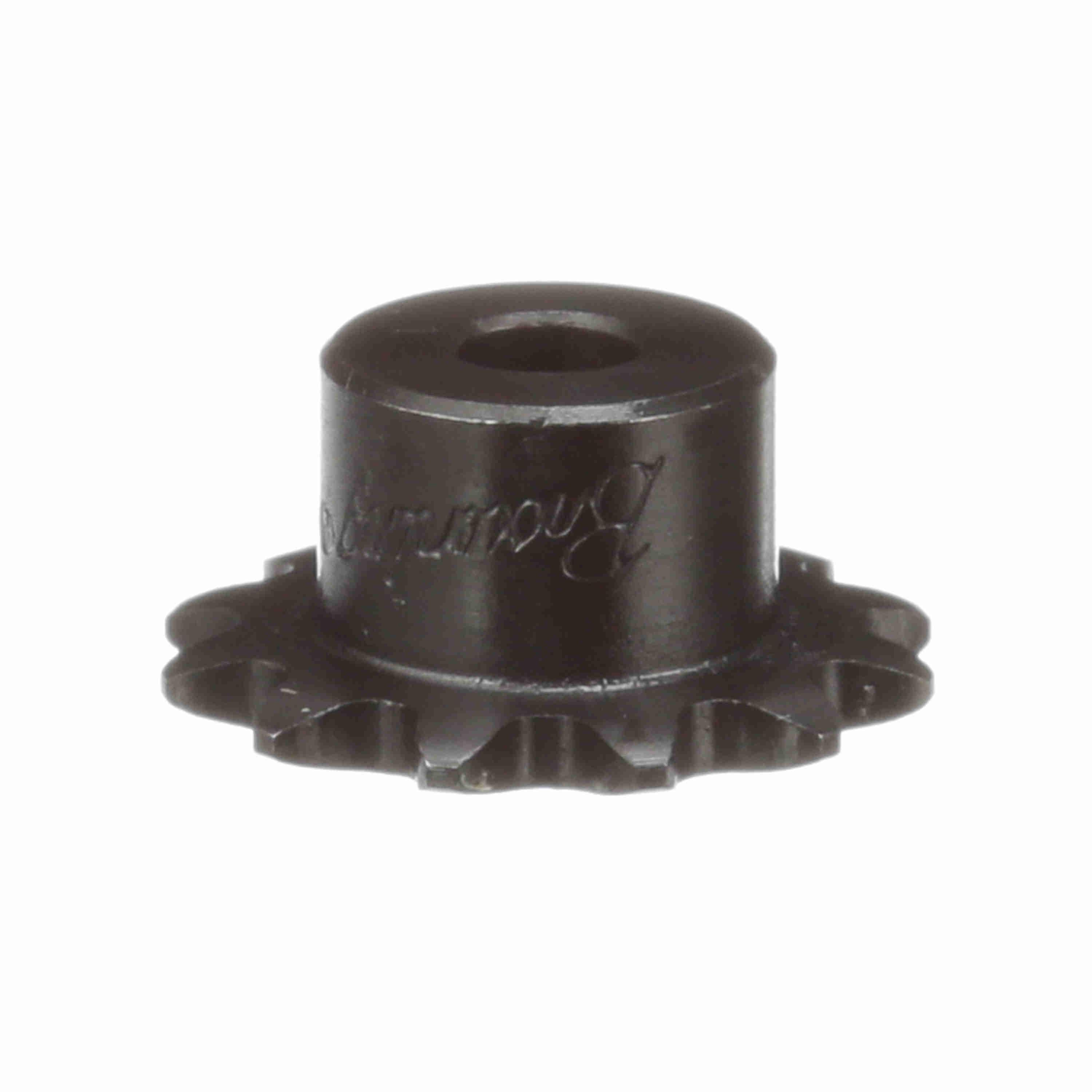

Browning® 1121284 Single Strand Minimum Bore Type B Roller Chain Sprocket, 1/4 in Dia Bore, 1.08 in OD, #25 Chain, 12 Teeth, 1/4 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289138258
-
Manufacturer Part Number1121284
-
CountryUSA
-
Pitch1/4 in
-
Pitch Diameter0.966 in
-
MaterialSteel
-
Chain Size#25
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter5/8 in
-
Number of Teeth12
-
Outside Diameter1.08 in
-
Length Through Bore1/2 in
-
Bore Diameter1/4 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- For use with 1/4 in pitch ANSI chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Made with Minimum bore, no keyseat or setscrew
- This can be bored to size with keyseat and setscrew for a reasonable extra charge
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
-
Alternative Part Number25B12
-
UNSPSC31171900
-
Package DescriptionEACH
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
