Browning 14-T MPB SPROCKETS FOR #100 CHAIN BRW 100-A-14

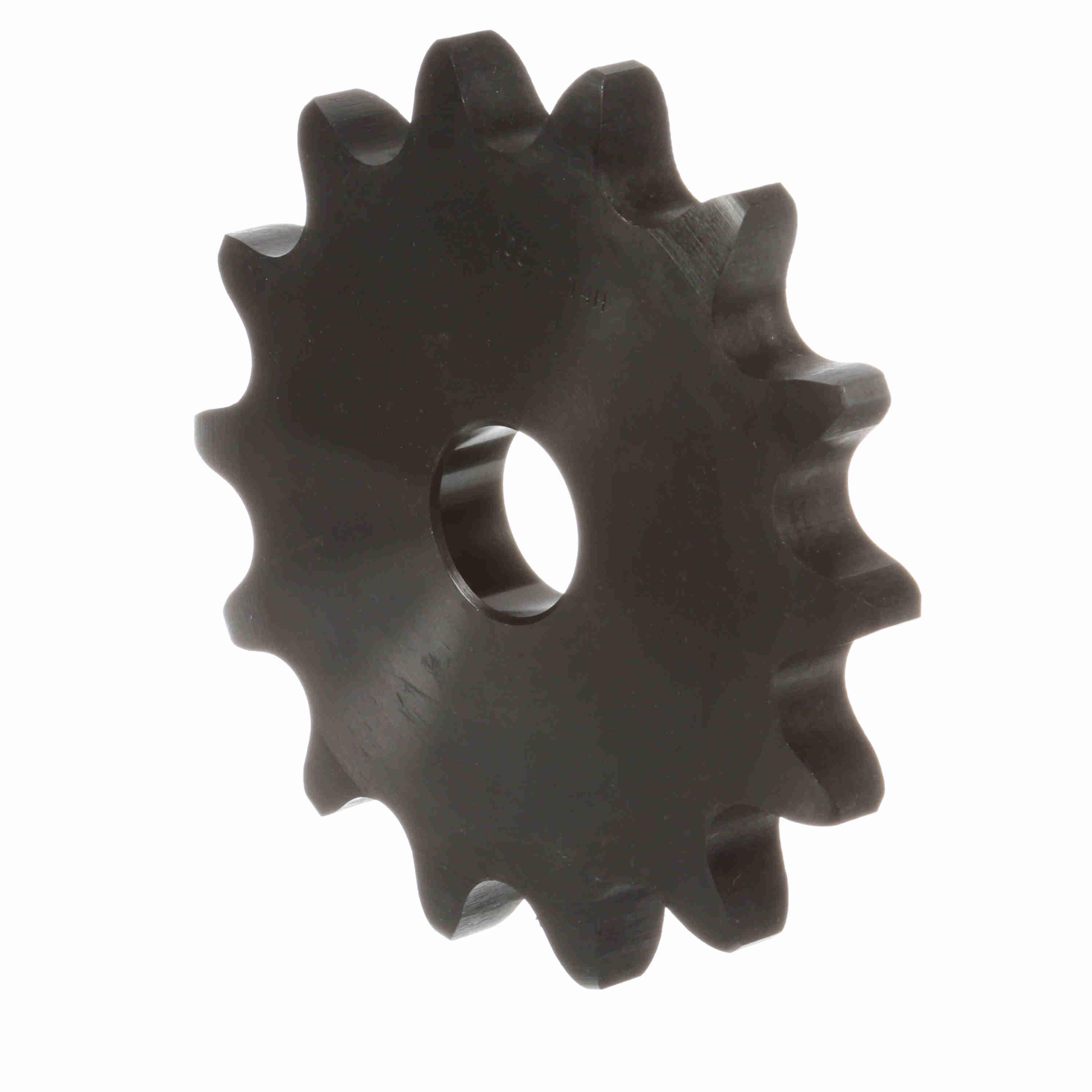

Browning® 1110311 Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth and Keyway, 3/4 in Dia Bore, 6.23 in OD, #100 Chain, 14 Teeth, 1-1/4 in Pitch, Steel
-
BrandBrowning®
-
UPC662289282760
-
Manufacturer Part Number1110311
-
CountryUSA
-
Pitch1-1/4 in
-
Pitch Diameter5.617 in
-
MaterialSteel
-
Chain Size#100
-
TypeSingle Strand Plate Type A
-
Number of Teeth14
-
Outside Diameter6.23 in
-
Bore Diameter3/4 in
- Solid plate
- No hub projection
- High quality, high carbon steel
- Browning® offers type A plate steel sprockets in single strands
- Lasts longer than sprockets made from low carbon steel
- For use with 1-1/4 in pitch ANSI chain
-
Alternative Part Number100A14
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
