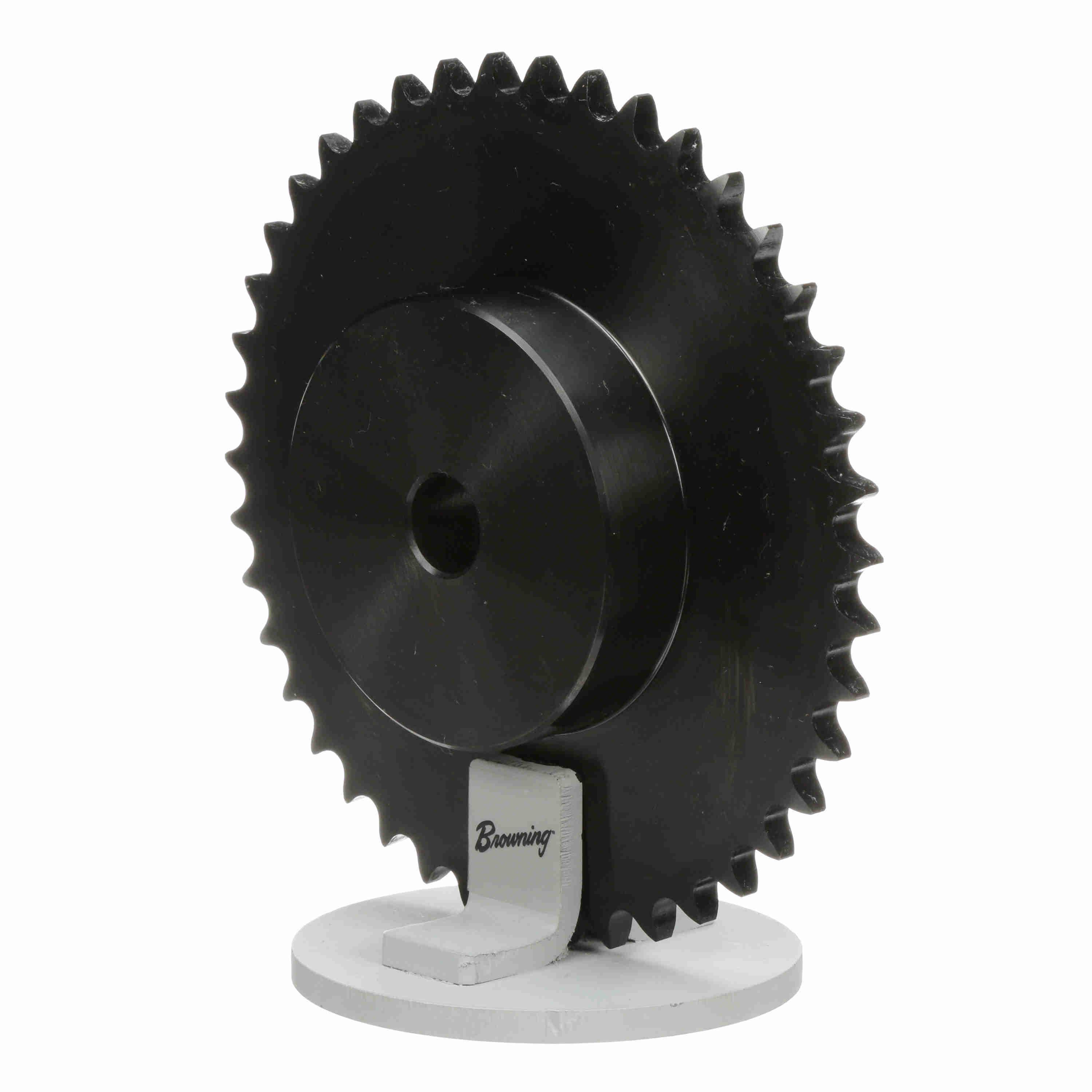

Browning® 1122514 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 3/4 in Dia Bore, 6.97 in OD, #40 Chain, 42 Teeth, 1/2 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289319398
-
Manufacturer Part Number1122514
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter6.691 in
-
MaterialSteel
-
Chain Size#40
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter3-1/2 in
-
Number of Teeth42
-
Outside Diameter6.97 in
-
Length Through Bore1-1/8 in
-
Bore Diameter3/4 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number40B42
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
