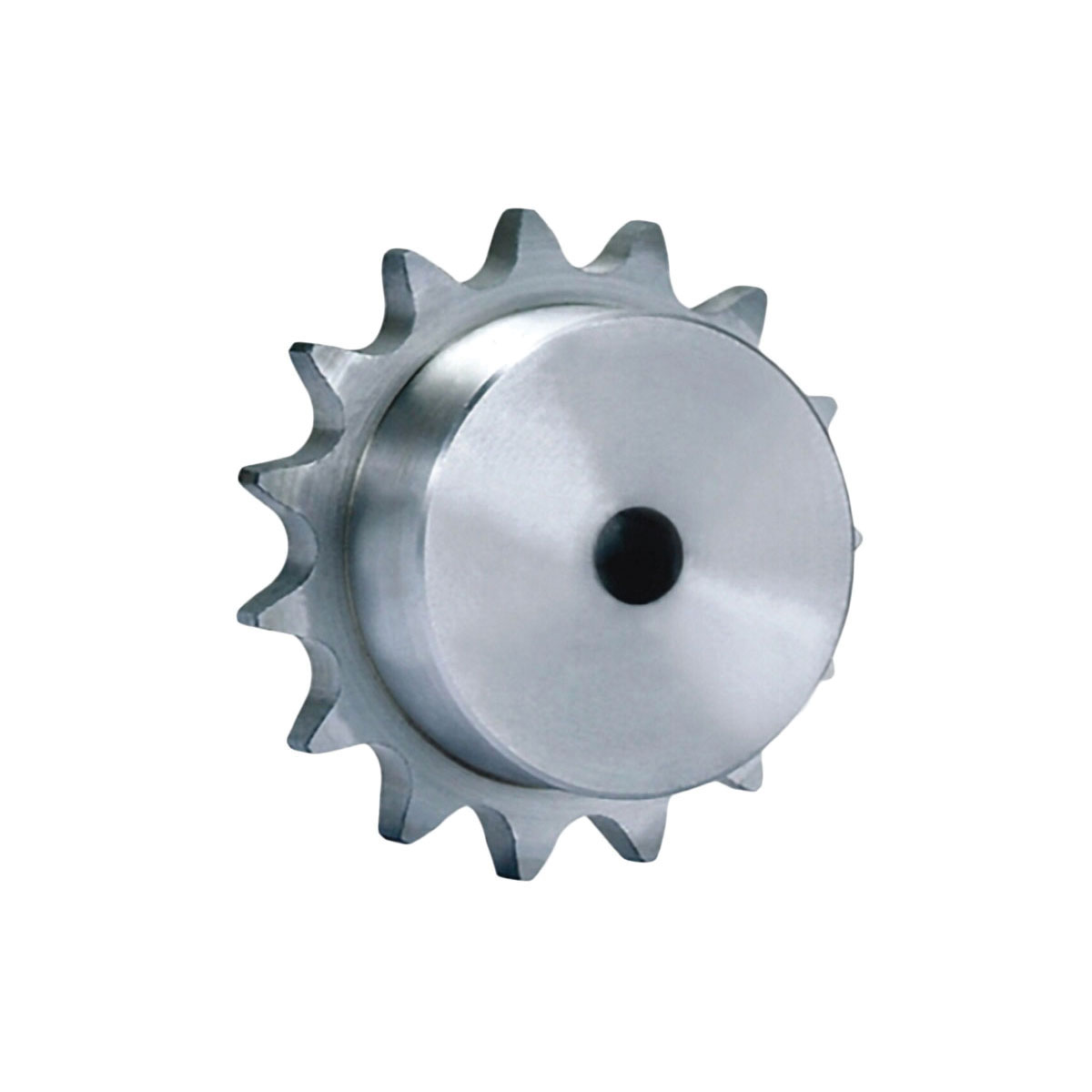

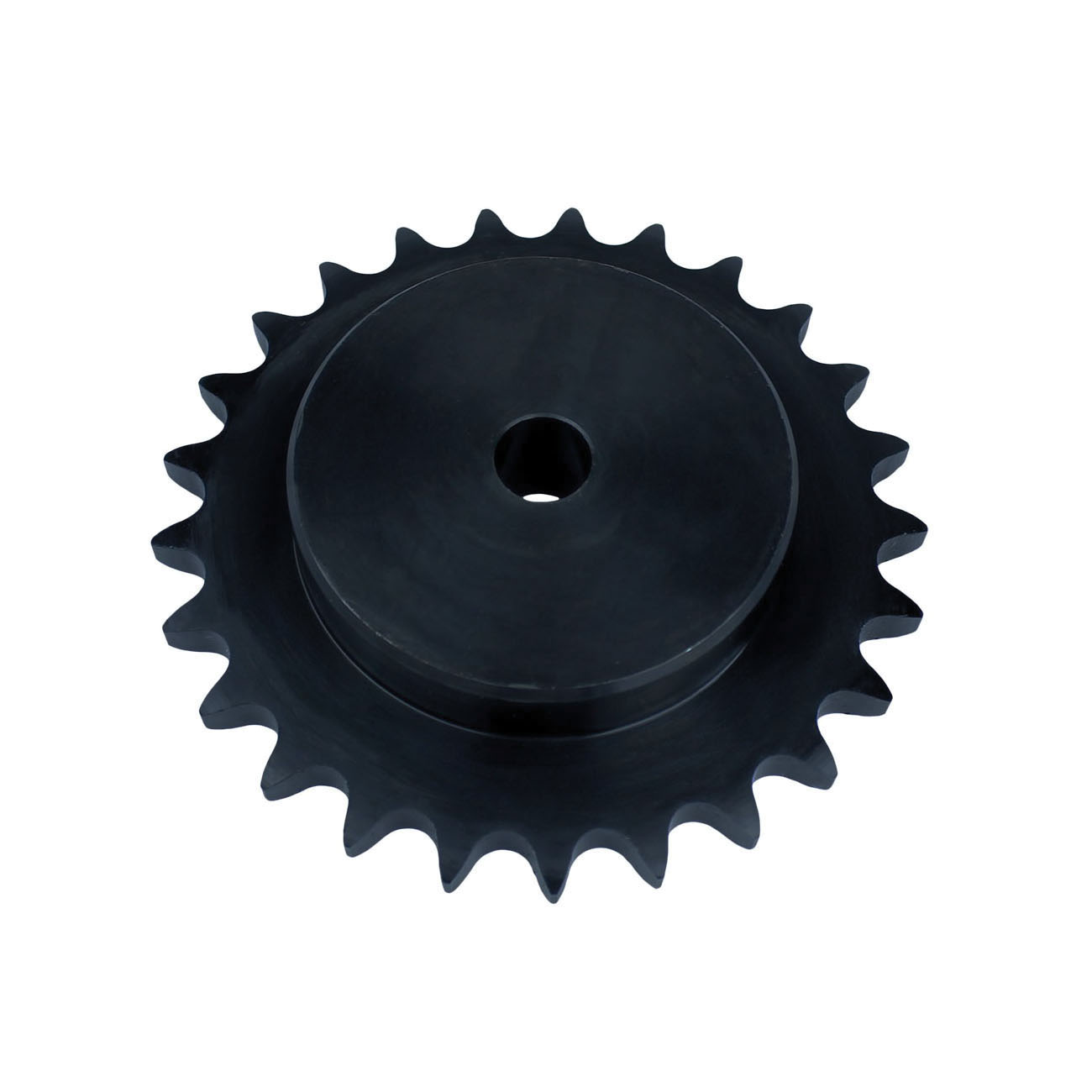

IDC Select® IDC H100B10 Plain Bore Type B Single Strand Roller Chain Sprocket, 1 in Dia Bore, 4.6 in OD, 100 Chain, 10 Teeth, 1-1/4 in Pitch, C1045 Steel
IDC Select® offers a wide range of high quality roller chain sprockets produced in ISO certified facilities to ANSI standards. Plain bore, finished bore, taper and QD® bushing designs are available. All IDC Select® sprockets come with hardened teeth and black oxide finish for long lasting service life. The finished bore design comes complete with a keyway on the centerline of the sprocket tooth and two setscrews, one over the keyway and one at 90 deg.
-
BrandIDC Select®
-
UPC887412052564
-
Manufacturer Part NumberIDC H100B10
-
CountryUSA
-
Pitch1-1/4 in
-
Pitch Diameter4.045 in
-
FinishBlack Oxide
-
MaterialC1045 Steel
-
Chain Size100
-
TypePlain Bore Type B
-

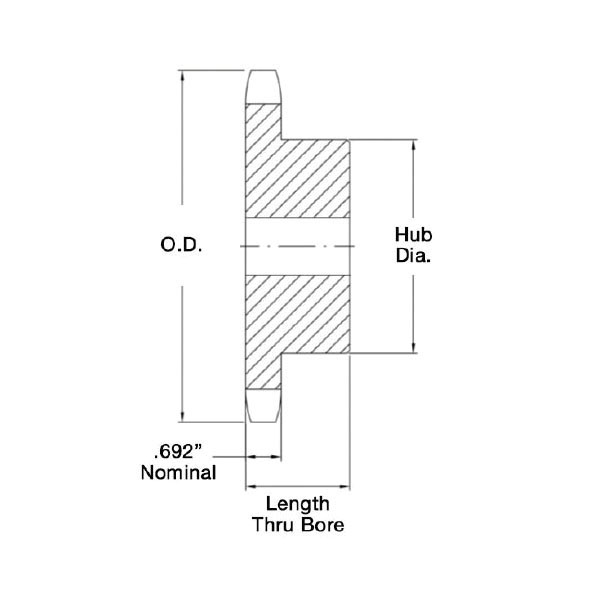

Hub Diameter3-1/4 in
-
Number of Teeth10
-
Outside Diameter4.6 in
-
Length Through Bore1-7/8 in
-
Bore Diameter1 in
- Hardened teeth for longer life
-
UNSPSC31171901
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
