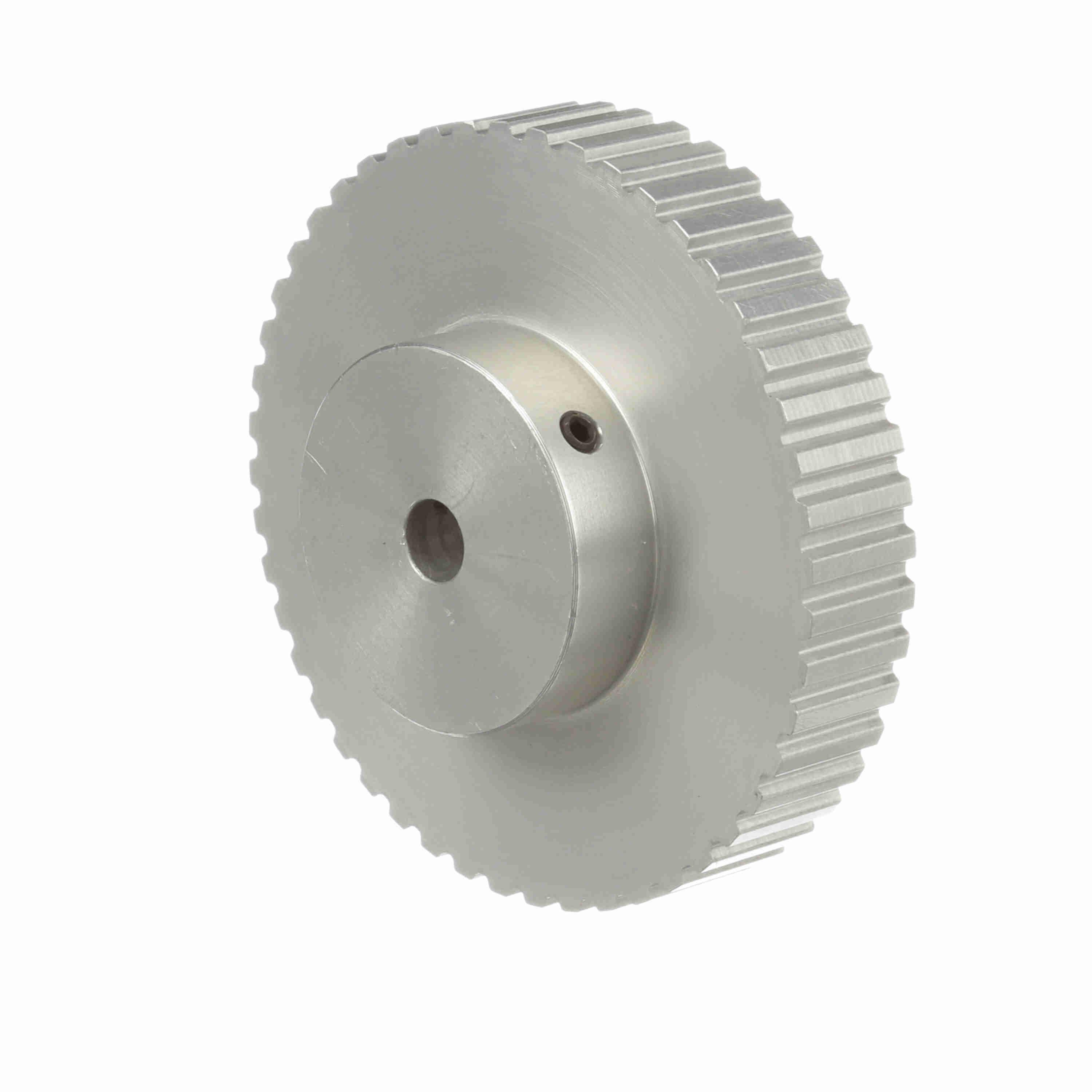

Browning® 1055011 Type 2A Synchronous Timing Pulley, 5/16 to 1 in, 3.036 in OD, 48 Grooves, 3.056 in Dia Pitch, 0.563 in W Face
Browning® 1055011 Type 2A Synchronous Timing Pulley, 5/16 to 1 in, 3.036 in OD, 48 Grooves, 3.056 in Dia Pitch, 0.563 in W Face
-
BrandBrowning®
-
UPC662289102136
-
Manufacturer Part Number1055011
-
CountryUSA
-
Face Width0.563 in
-
Bushing TypeMPB
-
Pitch1/5 in
-
Pitch Diameter3.056 in
-
MaterialAluminum
-
TypeType 2A
-
Hub Diameter1-1/2 in
-
Hub Projection0.438 in
-
Number of Grooves48
-
Outside Diameter3.036 in
-
Bore Diameter5/16 to 1 in
-
Overall Length1 in
-
Suitable For Use With3/8 in W Type XL Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part Number48XLB037
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
