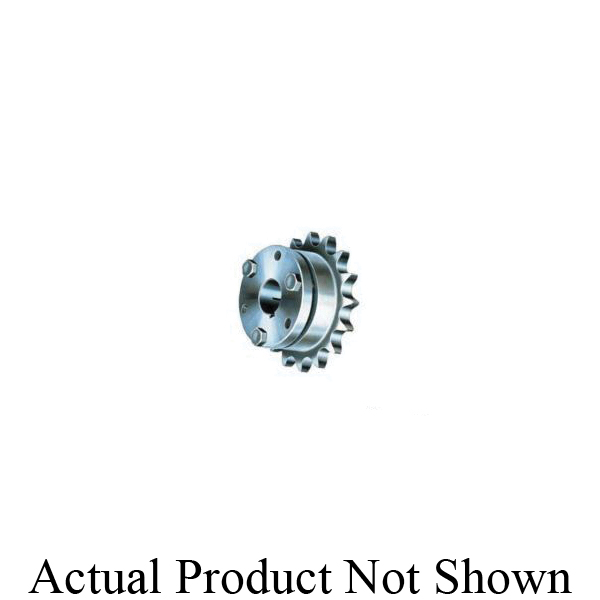

Browning® 3332103 Single Strand Roller Chain Sprocket, 7/8 in Dia Bore, 15.038 in OD, #100 Chain, 36 Teeth, 1-1/4 in Pitch, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289247387
-
Manufacturer Part Number3332103
-
CountryUSA
-
Bushing TypeType QD®-1
-
Pitch1-1/4 in
-
Pitch Diameter14.342 in
-
MaterialSteel
-
Chain Size#100
-
TypeSingle Strand
-
Hub Diameter6 in
-
Number of Teeth36
-
Outside Diameter15.038 in
-
Length Through Bore2.64 in
-
Bore Diameter7/8 in
- This product has the Browning® exclusive twice the life guarantee
- Easy installation and removal
- Reverse mounting possible
- For use with 1-1/4 in pitch ANSI chain
-
Alternative Part Number100E36
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
