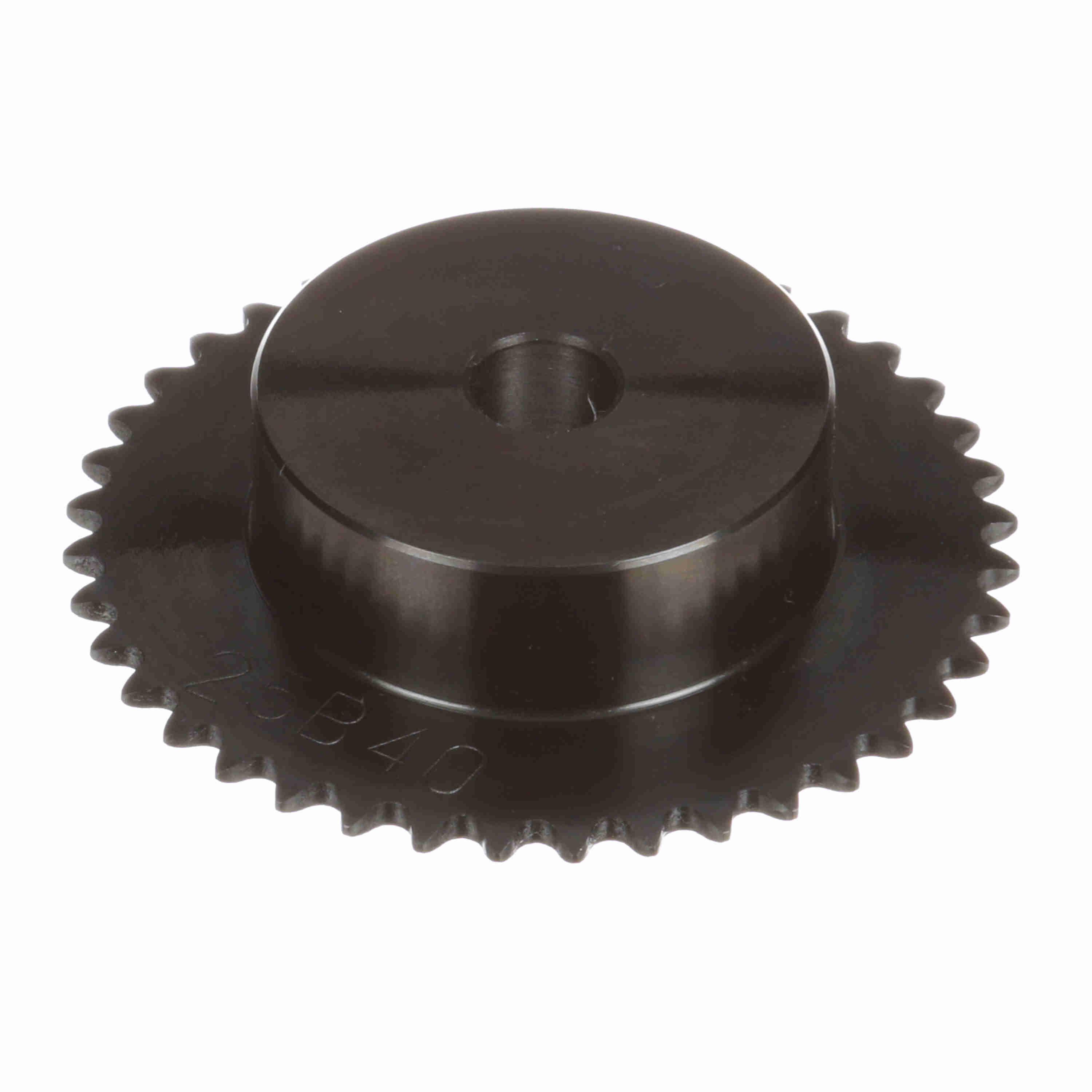

Browning® 1121474 Single Strand Minimum Bore Type B Roller Chain Sprocket With Keyway, 1-3/8 in Dia Bore, 3.33 in OD, #25 Chain, 40 Teeth, 1/4 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289278442
-
Manufacturer Part Number1121474
-
CountryUSA
-
Pitch1/4 in
-
Pitch Diameter3.187 in
-
MaterialSteel
-
Chain Size#25
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter2 in
-
Number of Teeth40
-
Keyway Size5/16 x 5/32 in
-
Outside Diameter3.33 in
-
Length Through Bore3/4 in
-
Bore Diameter1-3/8 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- For use with 1/4 in pitch ANSI chain
-
Alternative Part Number25B40
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
