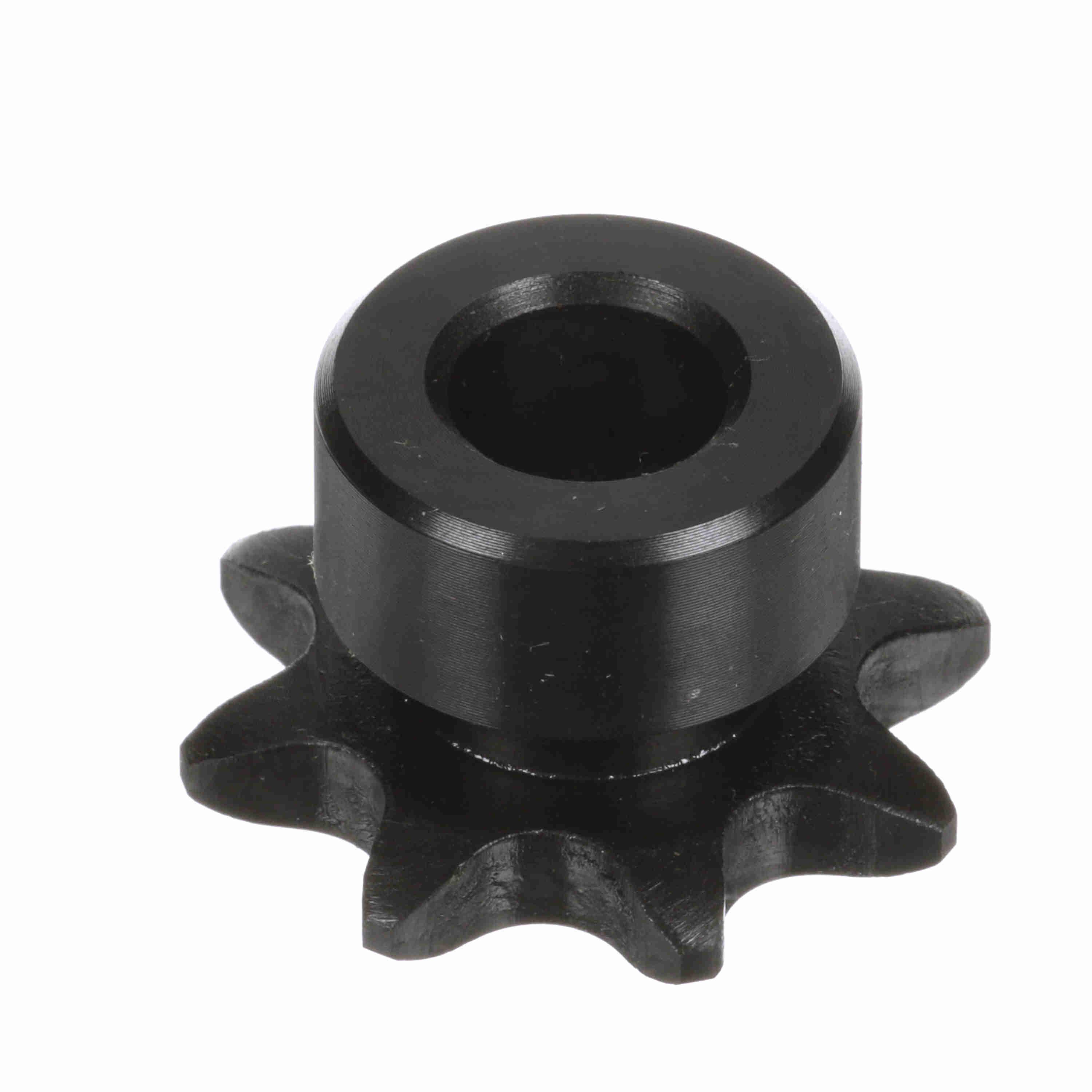

Browning® 1121904 Single Strand Minimum Bore Type B Roller Chain Sprocket With Keyway, 1/2 in Dia Bore, 1-1/2 in OD, #41 Chain, 8 Teeth, 1/2 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289168811
-
Manufacturer Part Number1121904
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter1.307 in
-
MaterialSteel
-
Chain Size#41
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter63/64 in
-
Number of Teeth8
-
Keyway Size1/8 x 1/16 in
-
Outside Diameter1-1/2 in
-
Length Through Bore7/8 in
-
Bore Diameter1/2 in
- Hub is recessed for chain clearance
- Lasts longer than sprockets made from low carbon steel
- Hub projection on one side
- High quality, high carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part Number41B8
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
