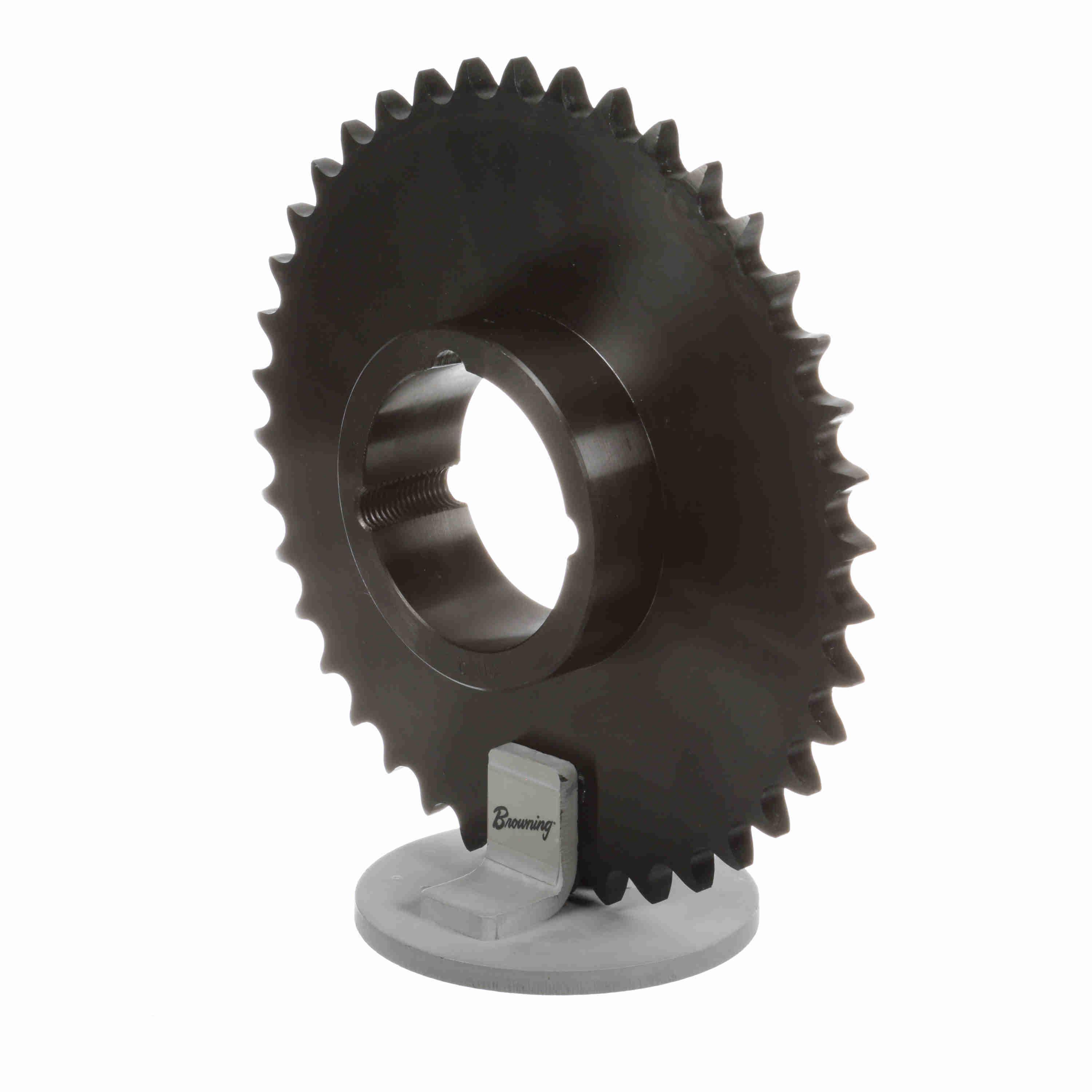

Browning 40-T TL SPROCKETS FOR #50 CHAIN BRW 50-TB-40
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289609918
-
Manufacturer Part Number3747086
-
CountryUSA
-
Bushing TypeType 1 Taper Bore
-
Pitch5/8 in
-
Pitch Diameter7.966 in
-
MaterialSteel
-
Chain Size#50
-
TypeSingle Strand
-
Hub Diameter3-9/16 in
-
Number of Teeth40
-
Outside Diameter8.316 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 5/8 in pitch ANSI chain
-
Alternative Part Number50TB40
-
UNSPSC31171900
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
Warranty1 Year
-
Instruction/Installation Manual
-
Specification Sheet
