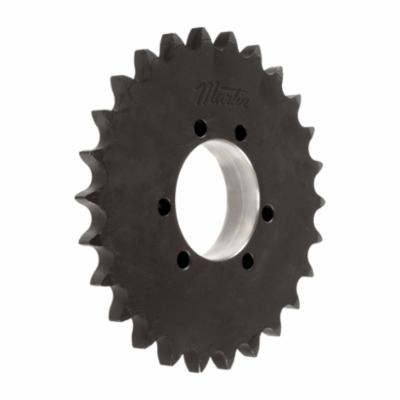

Martin 100E25 QD Bushed Type B1 Single Pitch Roller Chain Sprocket, 10.645 in OD, #100 Chain, 25 Teeth, 1-1/4 in Pitch, Steel
QD (quick detachable)is a sprocket where a tapered bushing is bolted into the taper bore that is machined in the sprocket. When installed this bushing is compressed onto the shaft providing a tight grip.
-
BrandMartin
-
UPC697950023113
-
Manufacturer Part Number100E25
-
CountryUSA|Canada
-
Bushing TypeType E QD®
-
Pitch1-1/4 in
-
Pitch Diameter9.973 in
-
MaterialSteel
-
Chain Size#100
-
TypeQD Bushed Type B1
-
Hub Diameter6 in
-
Number of Teeth25
-
Outside Diameter10.645 in
-
Length Through Bore2-5/8 in
- Manufactured of high carbon steel
- Precise machining and processes ensure consistent finish and high quality
- Chain rows are parallel and precisely spaced to increase longevity of sprocket and chain
-
UNSPSC31171901
-
Standards/ApprovalsPROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov
-
