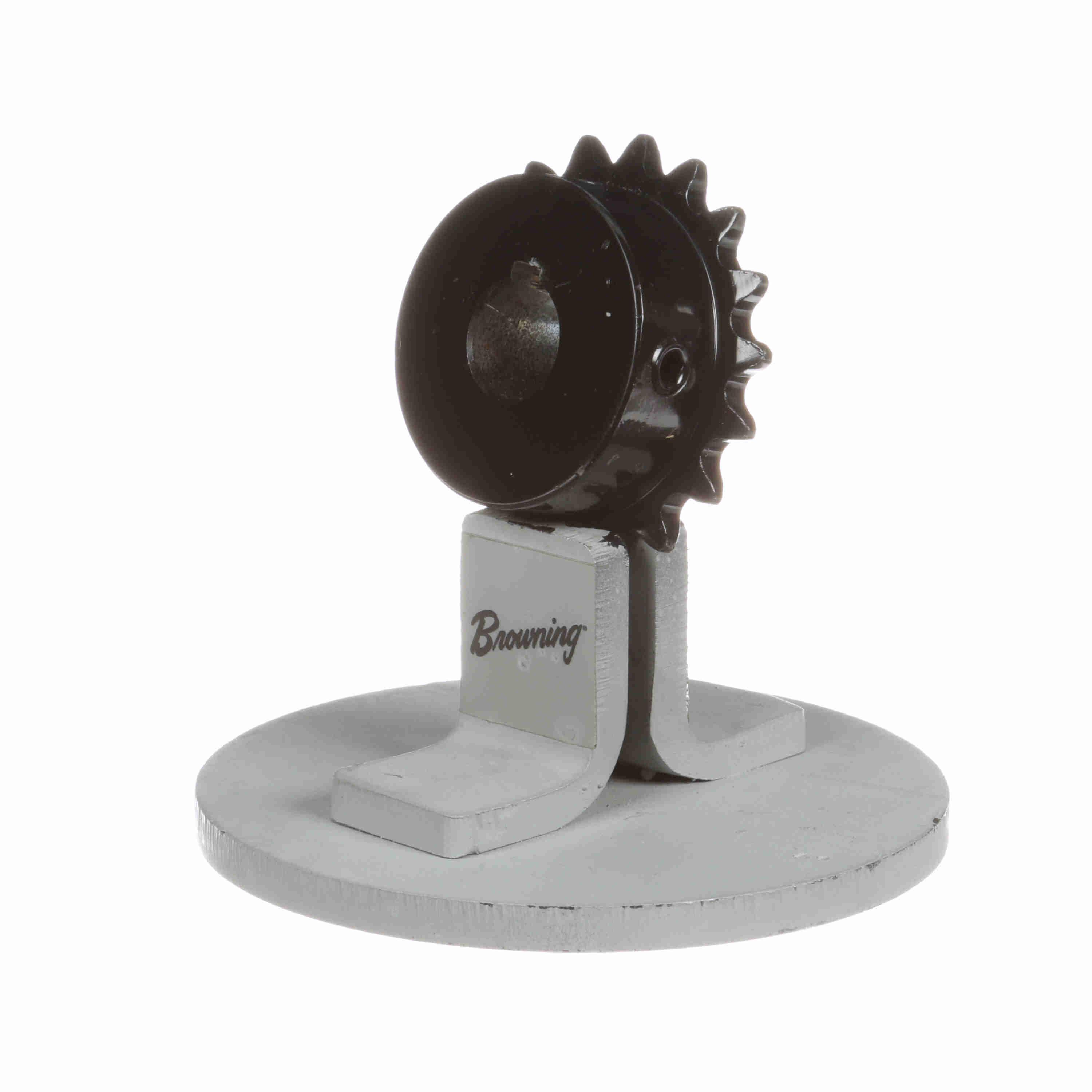

Browning® 1127794 Single Strand Finished Bore Type 1 Roller Chain Sprocket With Hardened Teeth and Keyway, 5/8 in Dia Bore, 2.35 in OD, #35 Chain, 18 Teeth, 3/8 in Pitch, Steel
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289122677
-
Manufacturer Part Number1127794
-
CountryUSA
-
Pitch Diameter2.16 in
-
MaterialSteel
-
Chain Size#35
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter1.766 in
-
Number of Teeth18
-
Keyway Size3/16 x 3/32 in
-
Outside Diameter2.35 in
-
Length Through Bore0.766 in
-
Bore Diameter5/8 in
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 3/8 in pitch ANSI chain
- Additional setscrew at 90 and 180 deg to keyway
- This Product has the Browning Exclusive Twice the Life Guarantee
- Finished bored sprockets are furnished with Standard Keyway on Centerline of Tooth and Hollow Head Setscrew over Keyway
-
Alternative Part NumberH3518X5/8
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
