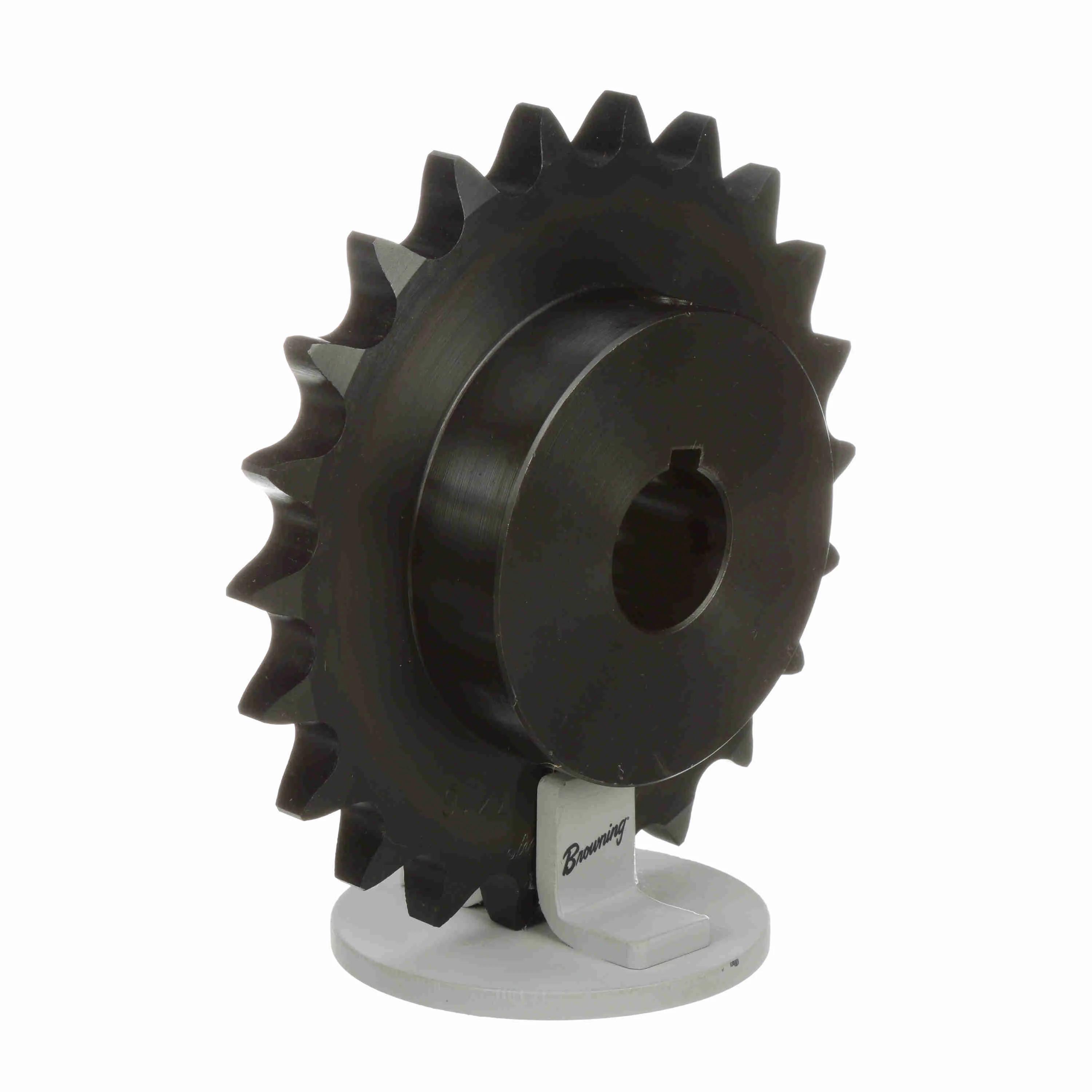

Browning 24-TOOTH #80-1 CHAIN SPROCKETS BRW H-8024 X 2
Browning® finished bore sprockets are offered in single strands. Offerings include 35 to 100 pitch range. Finished bore sprockets are available from 3/8 to 2-7/16 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289988747
-
Manufacturer Part Number1885094
-
CountryUSA
-
Pitch Diameter7.661 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Finished Bore Type 1
-
Hub Diameter4.266 in
-
Number of Teeth24
-
Outside Diameter8.2 in
-
Length Through Bore1-3/4 in
-
Bore Diameter2 in
- Furnished with standard keyway on centerline of tooth and hollow head setscrew over keyway
- In-stock hardened sprockets are warranted to last at least twice as long as the standard (unhardened) mild steel sprockets they replace
- For use with 1 in pitch ANSI chain
- Additional setscrew at 90 deg to keyway
-
Alternative Part NumberH8024X2
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
