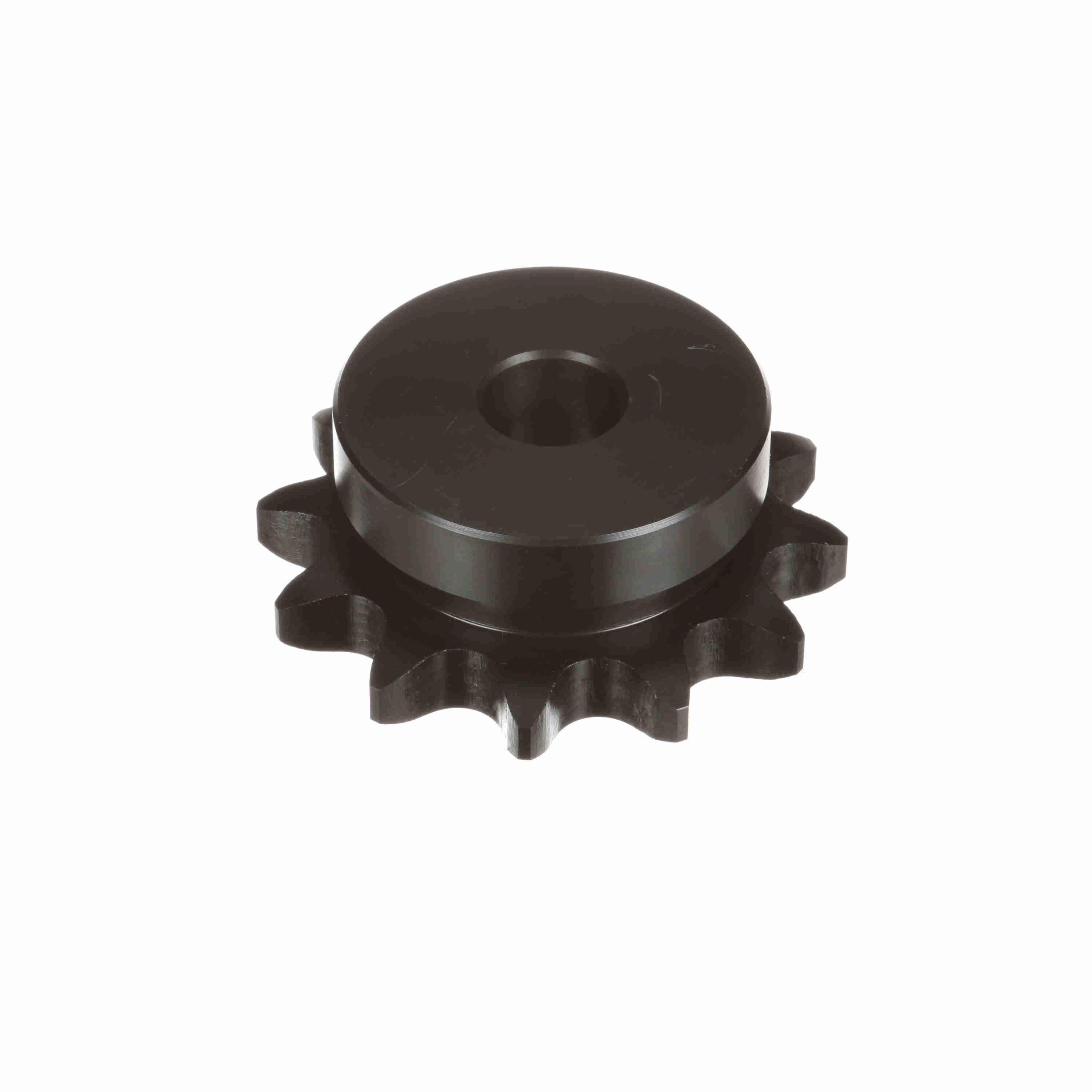

Browning® 1123561 Single Strand Minimum Bore Type B Roller Chain Sprocket With Hardened Teeth, 1 in Dia Bore, 4.33 in OD, #80 Chain, 12 Teeth, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289170241
-
Manufacturer Part Number1123561
-
CountryUSA
-
Pitch Diameter3.864 in
-
MaterialSteel
-
Chain Size#80
-
TypeSingle Strand Minimum Bore Type B
-
Hub Diameter3-1/8 in
-
Number of Teeth12
-
Outside Diameter4.33 in
-
Length Through Bore1-5/8 in
-
Bore Diameter1 in
- Larger hub diameter allows larger bore capacity
- Lasts longer than sprockets made from low carbon steel
- Maximum bore shown will accommodate standard keyways and setscrews over keyway
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- Hub projection on one side
- High quality, high carbon steel
- Hub is recessed for chain clearance
- For use with 1 in pitch ANSI chain
-
Alternative Part Number80B12
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
