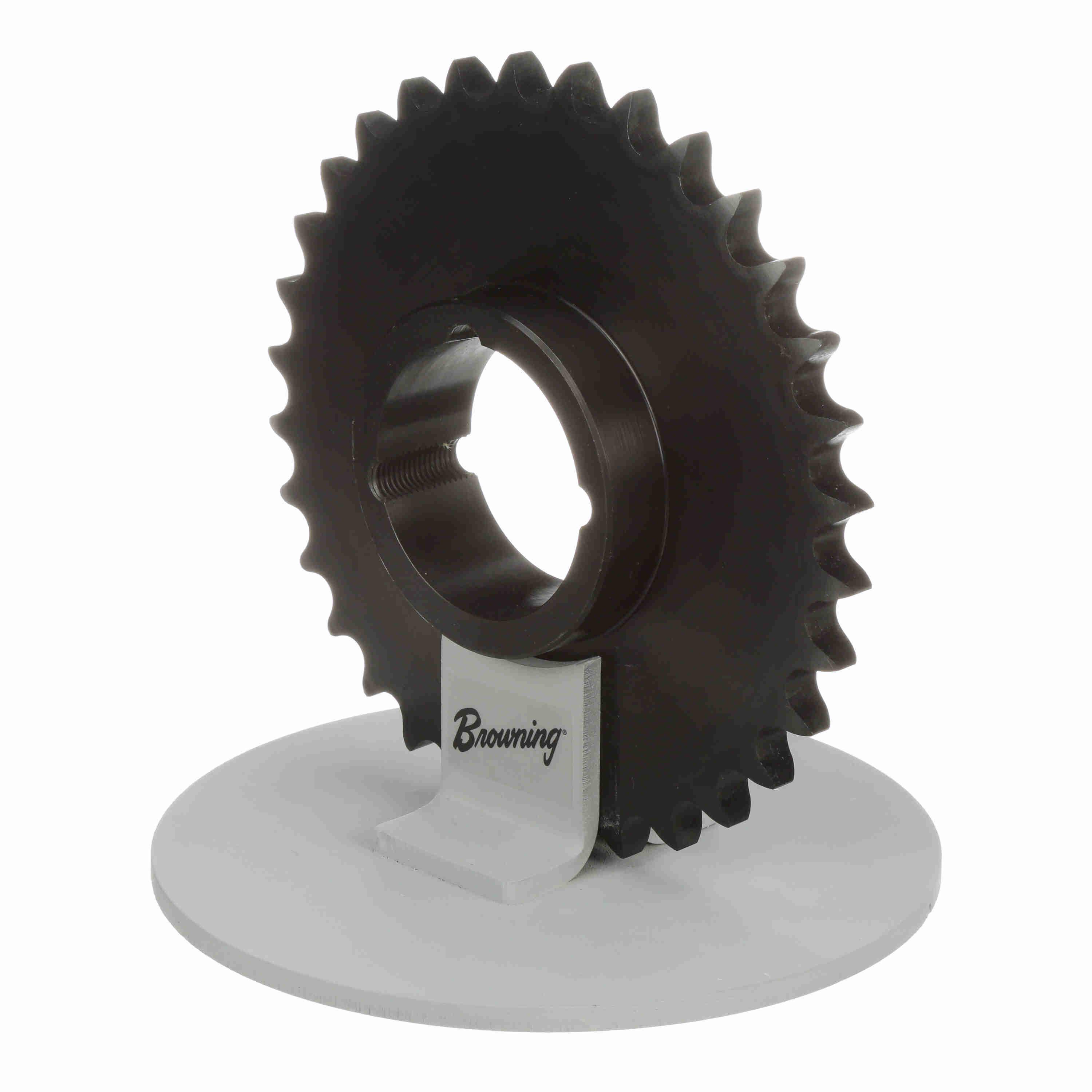

Browning® 3747375 Single Strand Taper Bore Bushed Type 1 Roller Chain Sprocket, 1/2 in Dia Bore, 8.065 in OD, #60 Chain, 32 Teeth, Steel
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289607839
-
Manufacturer Part Number3747375
-
CountryUSA
-
Pitch Diameter7.652 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand Taper Bore Bushed Type 1
-
Hub Diameter3.563 in
-
Number of Teeth32
-
Outside Diameter8.065 in
-
Length Through Bore1-1/4 in
-
Bore Diameter1/2 in
- This product has the Browning® exclusive twice the life guarantee
- Compact design
- Hardened teeth at no extra cost, drives sizes up to 30 teeth on 40 through 160 chain
- 1-11/16 in/ft taper
- Setscrew or cap screw acts as external key
- Flush fit, less space on shaft
- No protruding flange
- For use with 3/4 in pitch ANSI chain
-
Alternative Part Number60TB32
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
