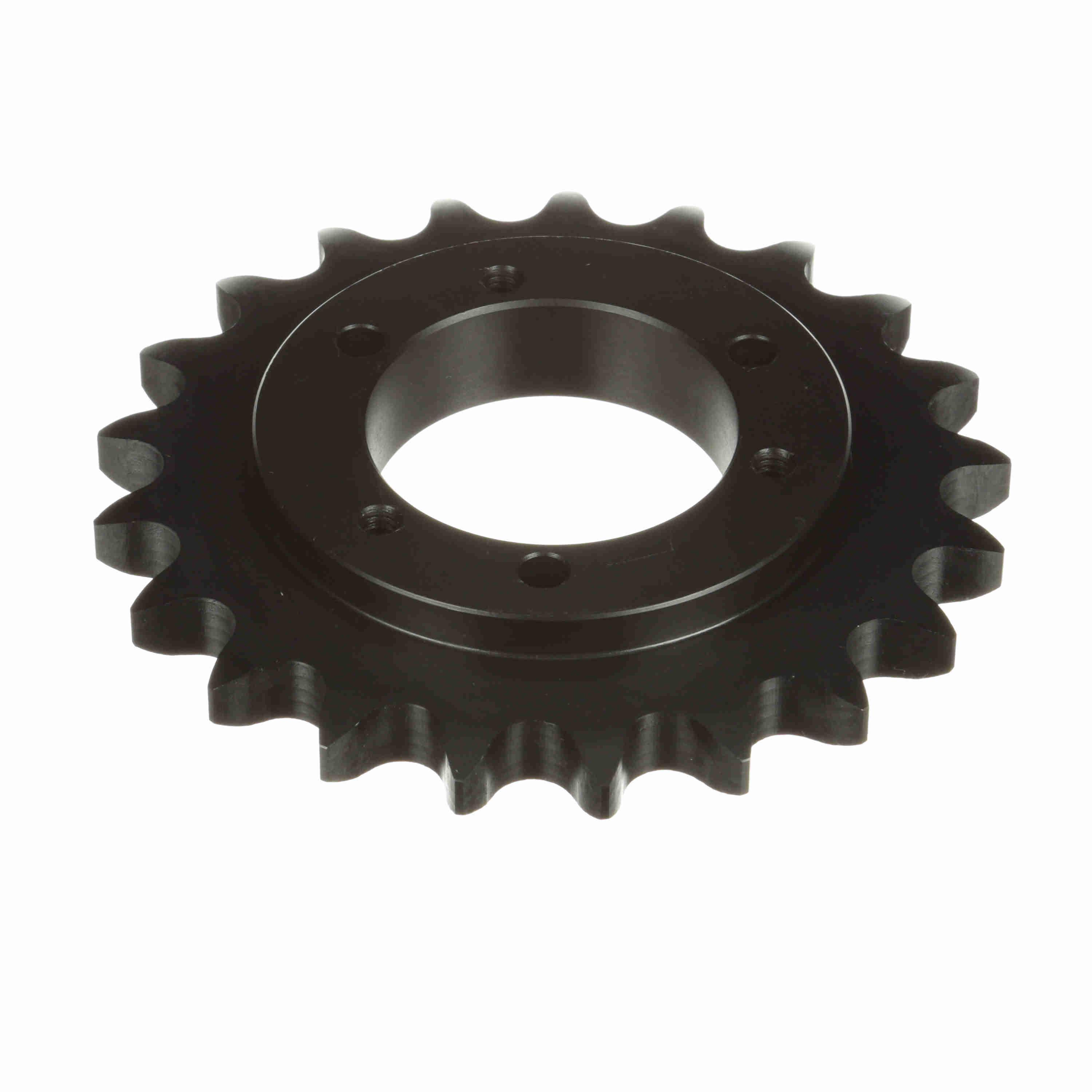

Browning 21-TOOTH SDS #60-1 CHAIN SPROCKETS BRW H-60-SDS-21
Browning® offers a variety of bushing type sprockets available in single and double strands. Offerings include 35 to 160 pitch range. Bushed type bore ranges are available from 1/2 to 5 in. Hardened teeth are available up to 30 teeth.
-
BrandBrowning®
-
UPC662289244157
-
Manufacturer Part Number3333655
-
CountryUSA
-
Pitch Diameter5.032 in
-
MaterialSteel
-
Chain Size#60
-
TypeSingle Strand QD Bushed Type QD-1
-
Hub Diameter3.14 in
-
Number of Teeth21
-
Outside Diameter5.426 in
-
Length Through Bore1.6923 in
-
Bore Diameter1/2 in
-
Alternative Part NumberH60SDS21
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
