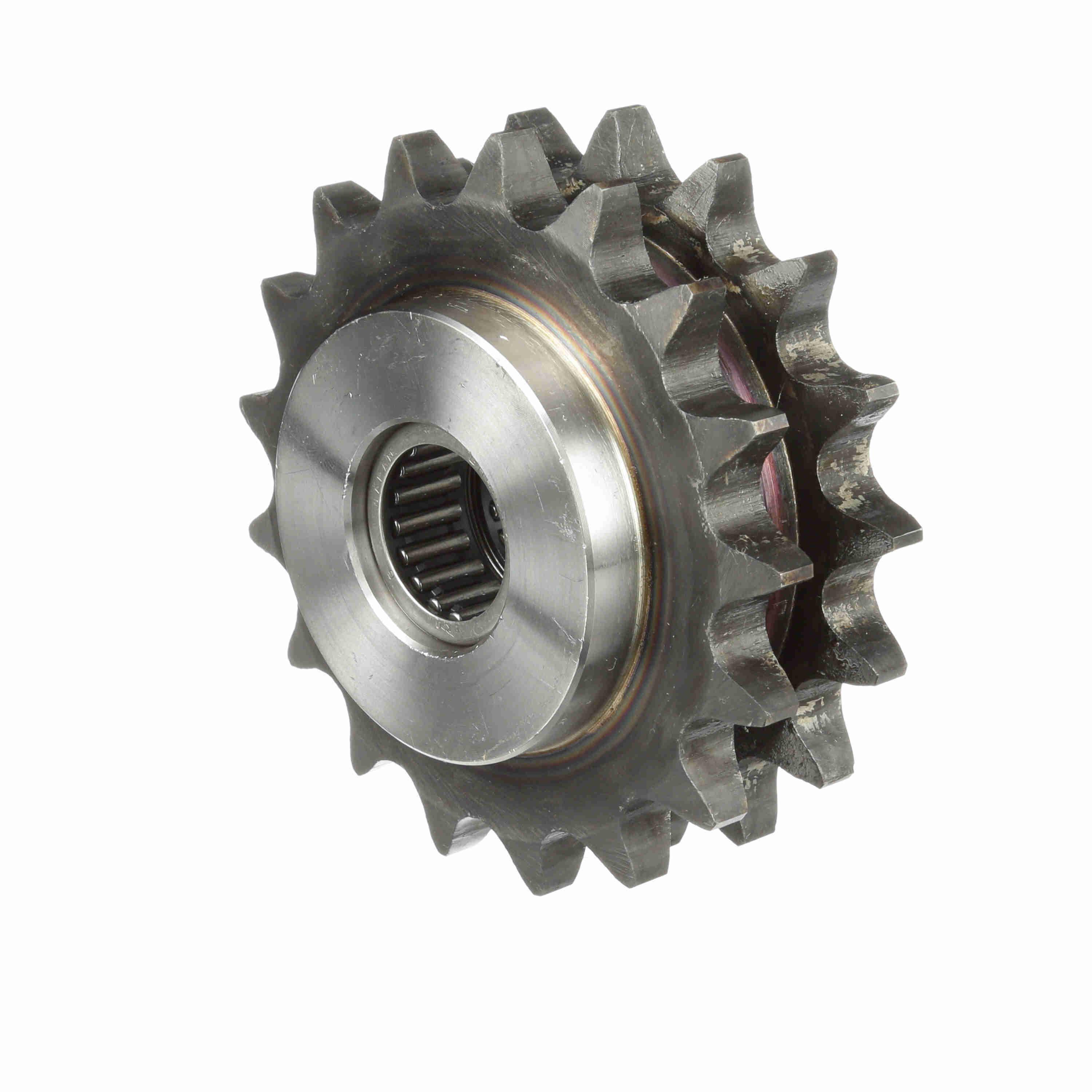

Browning® 1297399 Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 4.46 in OD, 60-2 Chain, 17 Teeth, 3/4 in Pitch, Steel
Browning® 1297399 Idler Sprocket With Hardened Teeth, 1 in Dia Bore, 4.46 in OD, 60-2 Chain, 17 Teeth, 3/4 in Pitch, Steel
-
BrandBrowning®
-
UPC662289114559
-
Manufacturer Part Number1297399
-
CountryUSA
-
MaterialSteel
-
Chain Size60-2
-
Hub Diameter2-5/8 in
-
Number of Teeth17
-
Outside Diameter4.46 in
-
Length Through Bore1-3/4 in
-
Bore Diameter1 in
- For use with drive tighteners
- Cast iron
- All Browning stock idlers furnished with needle bearings have retainers that insure minimum internal friction and wear by separating the needle rollers
- Solid Flange and Double Split Barrel - Assures better concentricity to the shaft
- Key to Key Drive - With keys on both the shaft and product to provide the strongest possible drive
- 3/4 in per Foot Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
-
Alternative Part NumberHND60B17 IDLER
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
