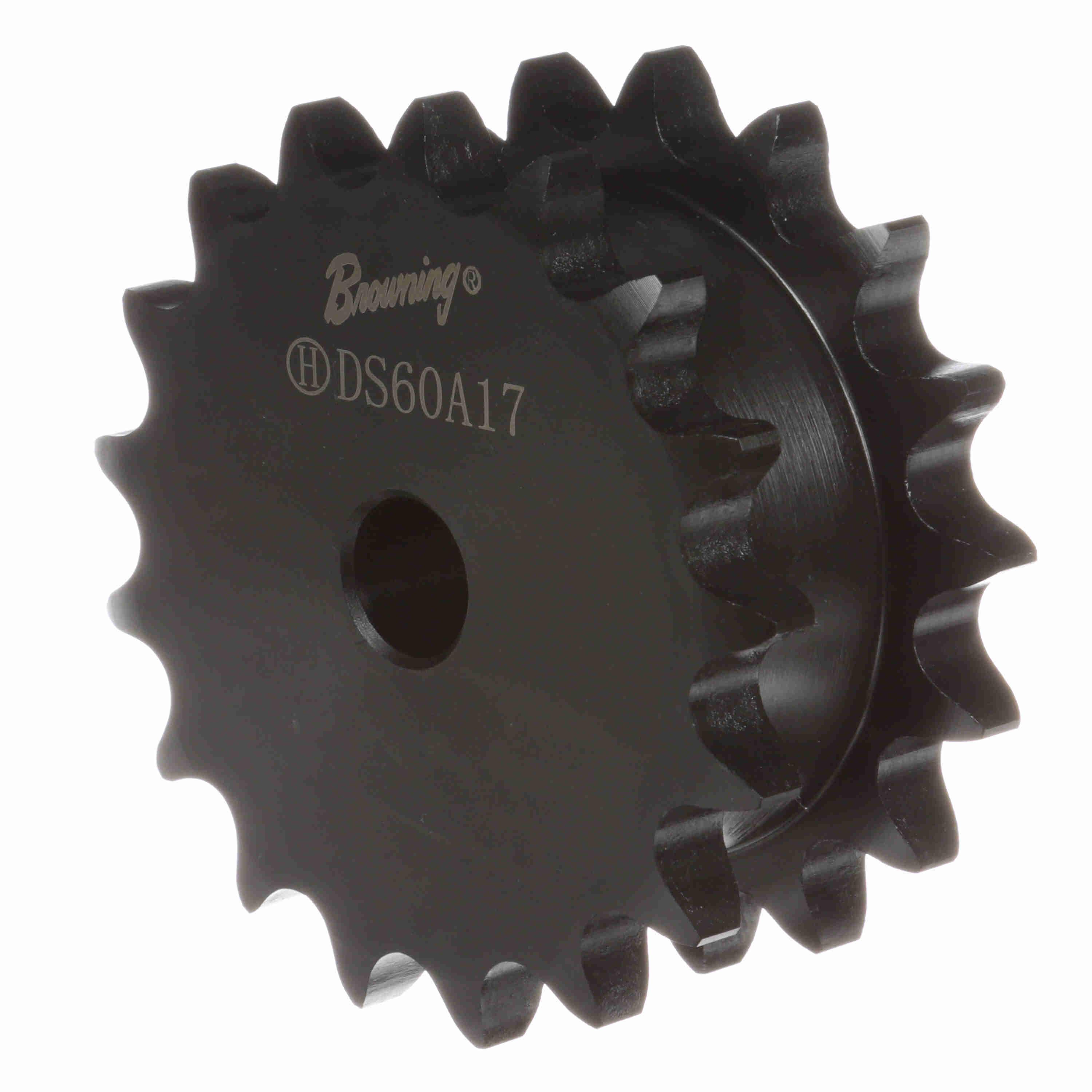

Browning® 1112101 Double Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 3/4 to 2-7/50 in Dia Bore, 4.46 in OD, 60 Chain, 17 Teeth, 3/4 in Pitch, Steel
Browning® offers type A plate steel sprockets in single strands. Offerings include 25 to 200 pitch range.
-
BrandBrowning®
-
UPC662289174171
-
Manufacturer Part Number1112101
-
CountryUSA
-
Pitch3/4 in
-
Pitch Diameter4.082 in
-
MaterialSteel
-
Chain Size60
-
TypeDouble Single Strand Plate Type A
-
Number of Teeth17
-
Outside Diameter4.46 in
-
Length Through Bore1.952 in
-
Bore Diameter3/4 to 2-7/50 in
- This product has the Browning® exclusive twice the life guarantee
- Solid plate
- No hub projection
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- For use with 3/4 in pitch ANSI chain
-
Alternative Part NumberDS60A17
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
