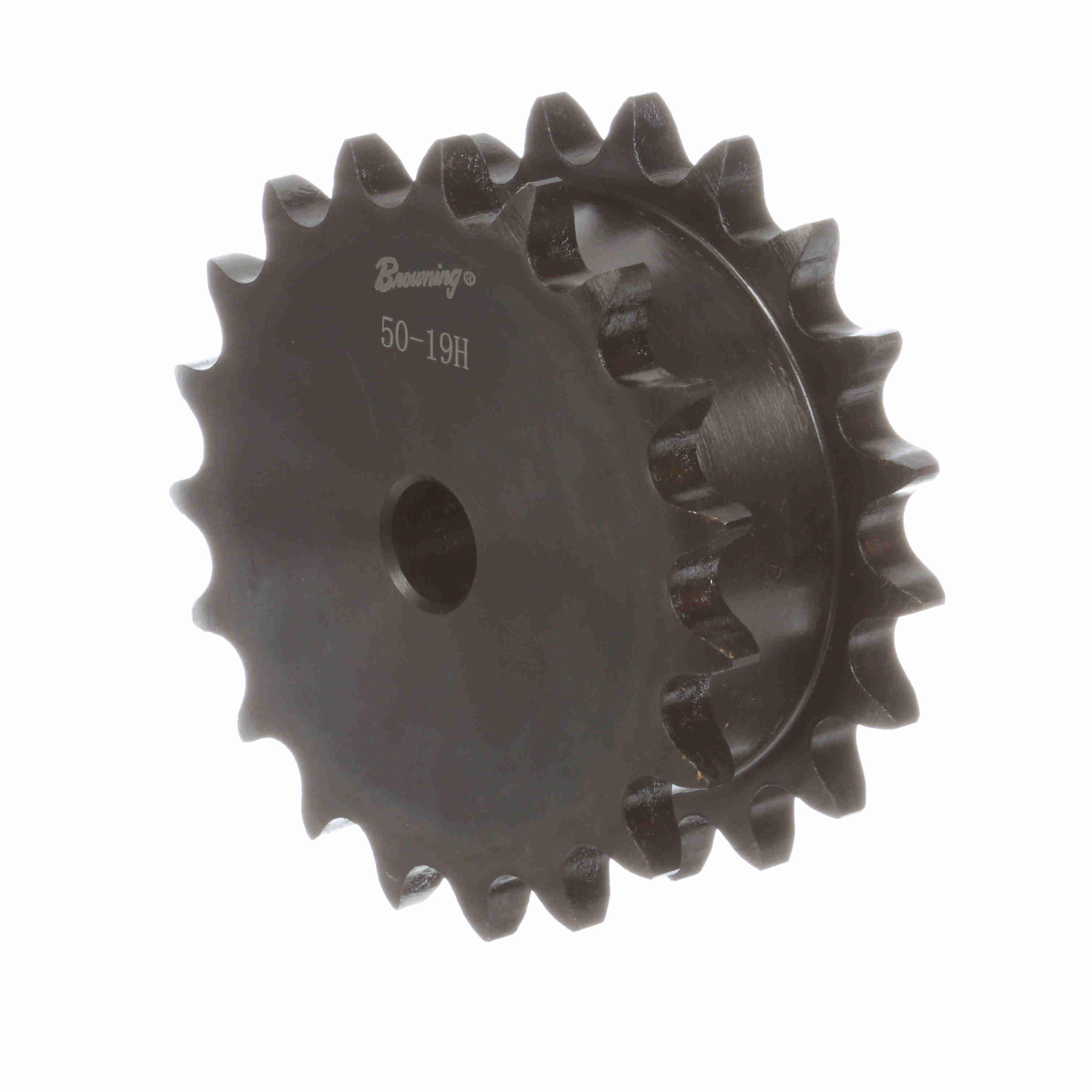

Browning® 1112085 Double Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 5/8 to 2-1/8 in Dia Bore, 4.12 in OD, 50 Chain, 19 Teeth, 5/8 in Pitch, Steel
Browning® offers type A plate steel sprockets in single strands. Offerings include 25 to 200 pitch range.
-
BrandBrowning®
-
UPC662289244140
-
Manufacturer Part Number1112085
-
CountryUSA
-
Pitch5/8 in
-
Pitch Diameter3.797 in
-
MaterialSteel
-
Chain Size50
-
TypeDouble Single Strand Plate Type A
-
Number of Teeth19
-
Outside Diameter4.12 in
-
Length Through Bore1.656 in
-
Bore Diameter5/8 to 2-1/8 in
- This product has the Browning® exclusive twice the life guarantee
- Solid plate
- No hub projection
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- For use with 5/8 in pitch ANSI chain
-
Alternative Part NumberDS50A19
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
