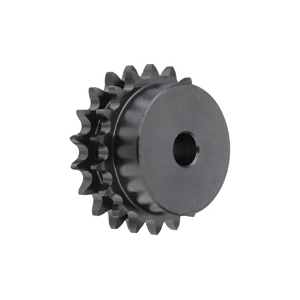

Browning® 1112044 Double Single Strand Plate Type A Roller Chain Sprocket With Hardened Teeth, 1/2 to 1-7/16 in Dia Bore, 2.98 in OD, 40 Chain, 17 Teeth, 1/2 in Pitch, Steel
Browning® offers type A plate steel sprockets in single strands. Offerings include 25 to 200 pitch range.
-
BrandBrowning®
-
UPC662289194032
-
Manufacturer Part Number1112044
-
CountryUSA
-

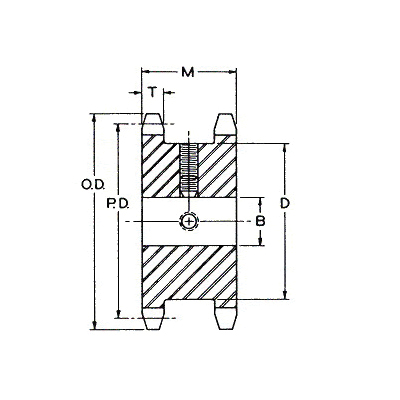

Pitch1/2 in
-
Pitch Diameter2.721 in
-
MaterialSteel
-
Chain Size40
-
TypeDouble Single Strand Plate Type A
-
Number of Teeth17
-
Outside Diameter2.98 in
-
Length Through Bore1.407 in
-
Bore Diameter1/2 to 1-7/16 in
- This product has the Browning® exclusive twice the life guarantee
- Solid plate
- No hub projection
- High quality, high carbon steel
- Lasts longer than sprockets made from low carbon steel
- For use with 1/2 in pitch ANSI chain
-
Alternative Part NumberDS40A17
-
UNSPSC31171901
-
Package Description1/PK
-
Warranty1 Year
-
Specification Sheet
-
Warranty Information
