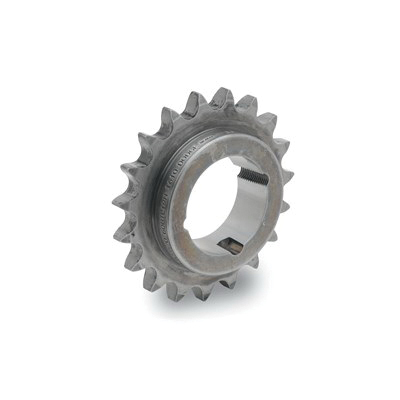

Dodge® 101468 Hardened Teeth Type ATL Roller Chain Sprocket, 2-11/16 in Dia Bore, 5.95 in OD, 80 Chain, 17 Teeth, Low-Carbon Steel
Ideal for low-speed power transmission applications. Roller chain drives have the ability to handle high shock loads and deliver dependable performance make them the drive of choice for many applications. Dodge® Taper-Lock® sprockets require no expensive or time-consuming re-matching. Their taper-bushing mount automatically compensates for variations in shaft and sprocket machining tolerances. With Dodge® Taper-Lock® sprockets, there are no protruding flanges or screw-heads to take up valuable shaft space. Their compact design provides for more power-dense packages.
-
BrandDodge®
-
UPC782475231515
-
Manufacturer Part Number101468
-
CountryUSA
-
Bushing TypeTaper-Lock®
-
Pitch Diameter5.442 in
-
MaterialLow-Carbon Steel
-
Chain Size80
-
TypeHardened Teeth Type ATL
-
Number of Teeth17
-
Outside Diameter5.95 in
-
Length Through Bore2.19 in
-
Bore Diameter2-11/16 in
- No slip transmission
- Minimal overhung load on shaft bearings
- Generally used in lower speed ranges
- Low cost, rugged performance
- Compact design
- Installs easily
- Fits shaft securely
- Allows exact ratio/rating required for your operation
- Installation-ready, right from box
-
Alternative Part NumberDS80ATL17H-2517
-
UNSPSC31171901
-
Package Description1/PK
-
Standards/ApprovalsANSI Specified
-
