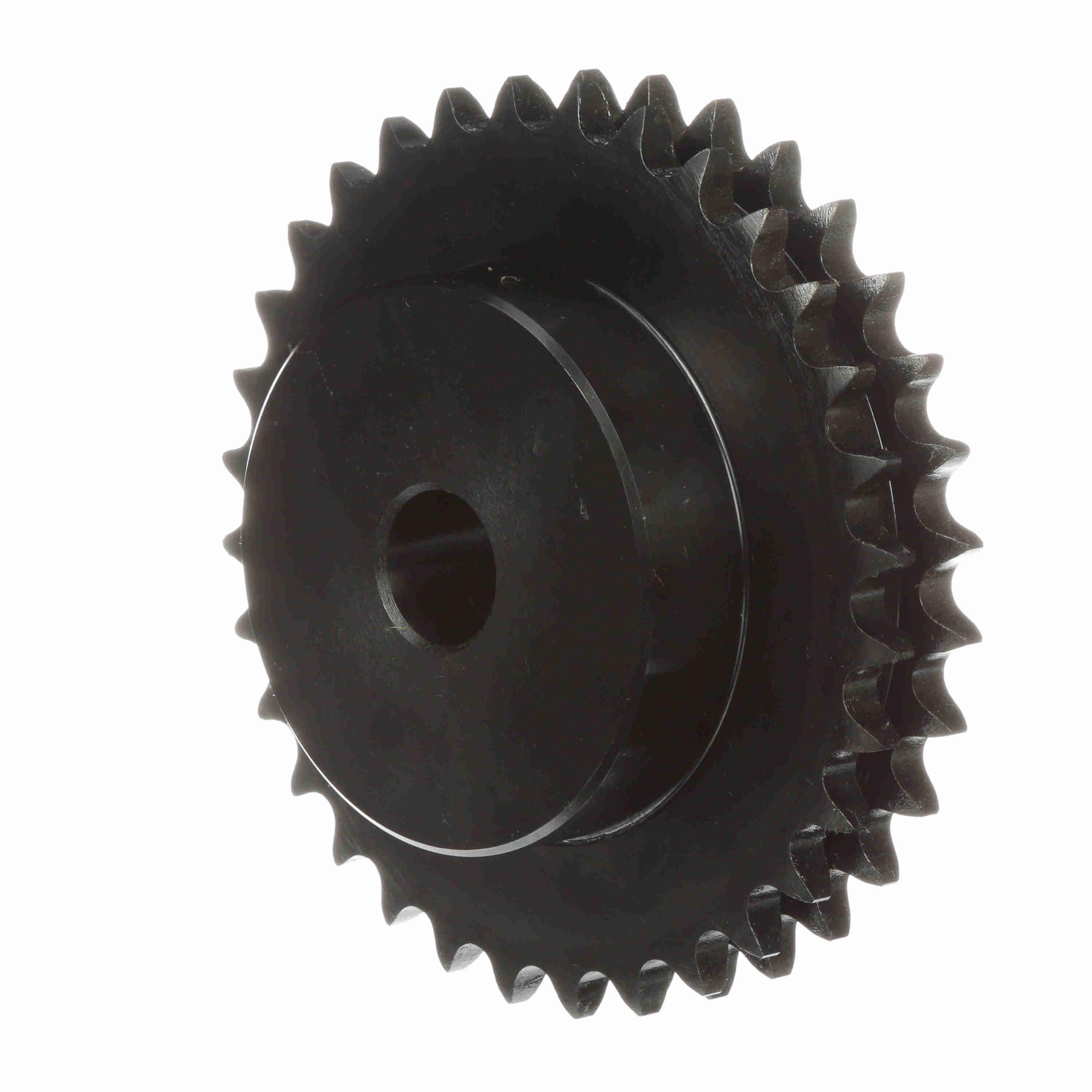

Browning® 1125616 Double Strand Type DB Roller Chain Sprocket With Hardened Teeth, 2-1/4 in Dia Bore, 5.38 in OD, 40 Chain, 32 Teeth, 1/2 in Pitch, Steel
Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.
-
BrandBrowning®
-
UPC662289262021
-
Manufacturer Part Number1125616
-
CountryUSA
-
Pitch1/2 in
-
Pitch Diameter5.101 in
-
MaterialSteel
-
Chain Size40
-
TypeDouble Strand Type DB
-
Hub Diameter3-1/4 in
-
Number of Teeth32
-
Outside Diameter5.38 in
-
Length Through Bore1-5/8 in
-
Bore Diameter2-1/4 in
- Larger hub diameter allows larger bore capacity
- Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway
- For 1/2 in pitch roller chain
- Browning offers one of the largest selection of application shaft ready sprockets in the industry
- Made with Minimum bore, no keyseat or setscrew
- This can be bored to size with keyseat and setscrew for a reasonable extra charge
- Maximum Bore Shown will accommodate standard keyways and setscrews over keyway
-
Alternative Part NumberD40B32
-
UNSPSC31171901
-
Package DescriptionEACH
-
Warranty1 Year
-
